Glove Box Lid

Remove the glove box lid assembly.
1. Remove the glove box damper.
2. Release the stoppers and remove the glove box lid assembly by pulling it toward you.

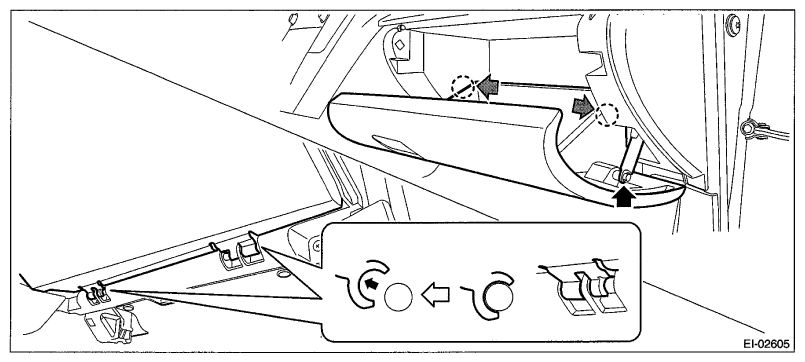

  Fig 1: Locating Glove Box Lid Assembly Stoppers
  Courtesy of SUBARU OF AMERICA, INC.
Remove the key cylinder.
1. UNLOCK the key cylinder, and pull up the lock knob.
2. While maintaining the condition (1), insert the key to set LOCK condition.

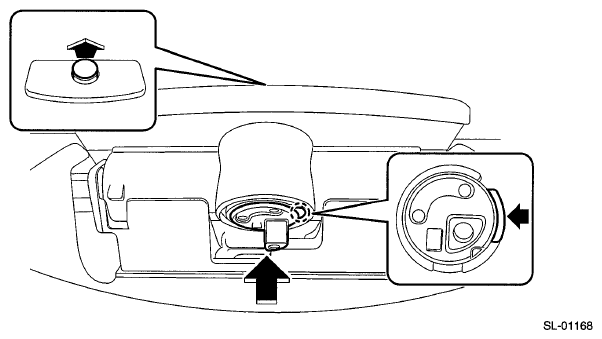

  Fig 2: Pulling Up Lock Knob
  Courtesy of SUBARU OF AMERICA, INC.
3. Push out the key cylinder, while pressing in the metal plate.
4. Remove the key cylinder from lock knob, and replace the key cylinder.

  Fig 3: Removing Key Cylinder From Lock Knob
  Courtesy of SUBARU OF AMERICA, INC.
