Front Regulator and Motor Assembly: Inspection

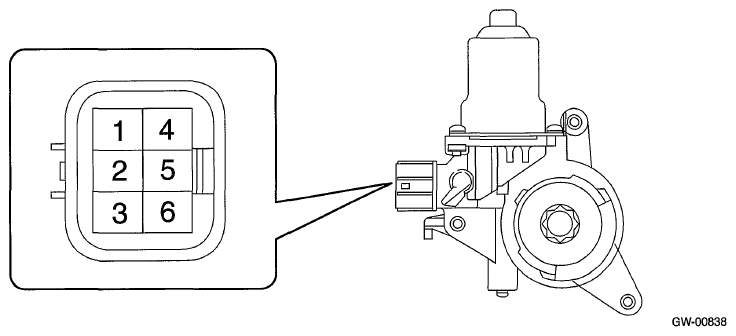

- Disconnect the motor connector.
- Apply battery voltage between the motor connector terminals and check the motor operation.
Courtesy of SUBARU OF AMERICA, INC.
| Terminal No. |
Inspection conditions |
Specification |
| 1 (+) - 4 (-) |
Apply battery voltage between terminals. |
Increase |
| 4 (+) - 1 (-) |
Apply battery voltage between terminals. |
Decrease |
- If the inspection results in improper operation, replace the front regulator and motor assembly.
