Engine Oil Cooler: Installation

Install in the reverse order of removal.

NOTE:

Use new gaskets and O-rings.
Use a new oil cooler hose.
After installing, check the engine oil level and replenish it if necessary. Refer to , INSPECTION , Engine Oil.
After temporarily installing the oil cooler pipe, tighten the bolts in alphabetical order as shown below.

Fig 1: Identifying Oil Cooler Pipe Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 54 N.m (5.5 kgf-m, 39.8 ft-lb)

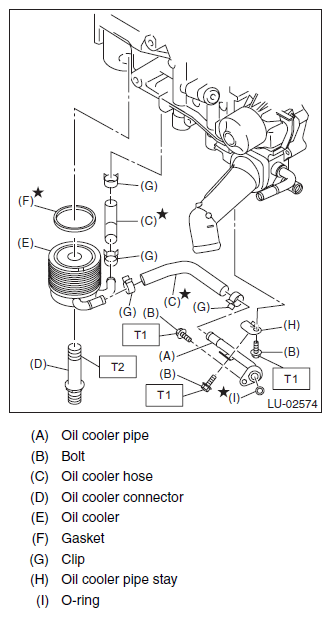

Fig 2: Exploded View Of Engine Oil Cooler

Courtesy of SUBARU OF AMERICA, INC.
