Oil Pump

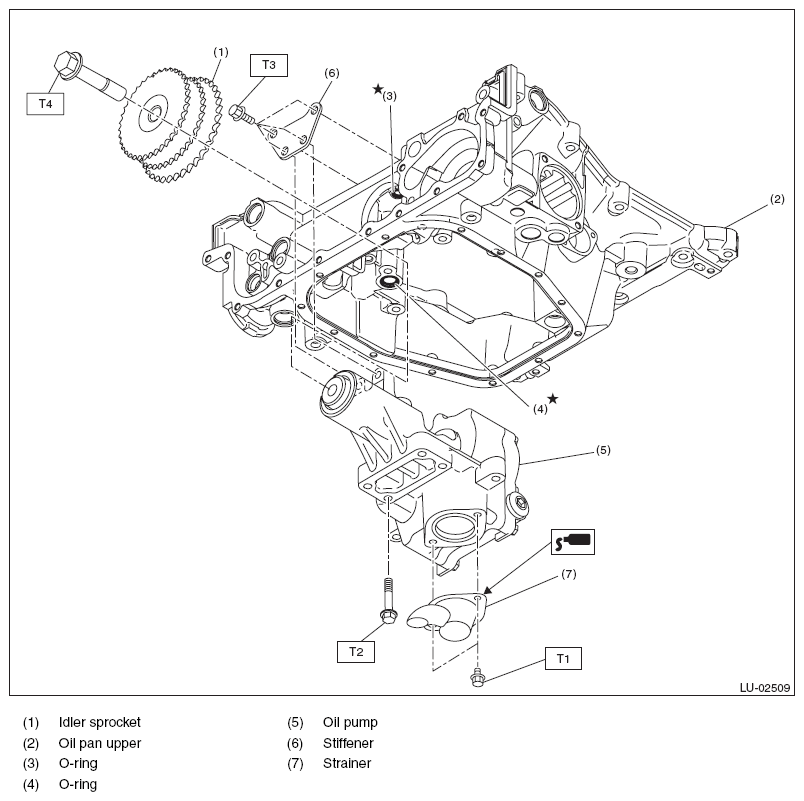

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 13 (1.3, 9.6)

T3: 24 (2.4, 17.7)

T4: 120 (12.2, 88.5)
