Combination Meter: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at the lowest position.
  3. Remove the console box. Refer to REMOVAL , Console Box.
  4. Remove the control panel. Refer to REMOVAL , Control Panel.
  5. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Lower Cover.
  6. Remove the console side panel. Refer to REMOVAL , Center Console.
  7. Remove the meter visor.
  8. Remove the screws of combination meter (two for upper side, two for lower side) and pull the combination meter.

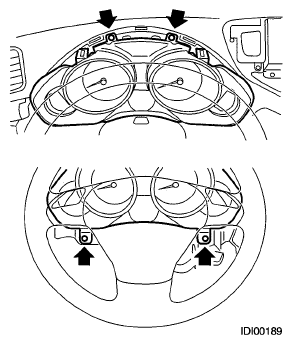

    Fig 1: Locating Combination Meter Screws (Upper Side And Lower Side)
    G05672094Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the connector in the rear side of combination meter to remove meter.
    CAUTION:
    • Be careful not to damage the meter or instrument panel.
    • Pay particular attention to avoid damaging the meter glass.
