Steering Roll Connector

The steering roll connector is in between the steering column and the steering wheel, and contains a spirally wound flat cable.

The flat cable maintains connection between the airbag module on the steering wheel and the airbag harness even when the steering wheel is turned. Ignition signal from the airbag control module is sent through the roll connecter to the driver's seat airbag module.

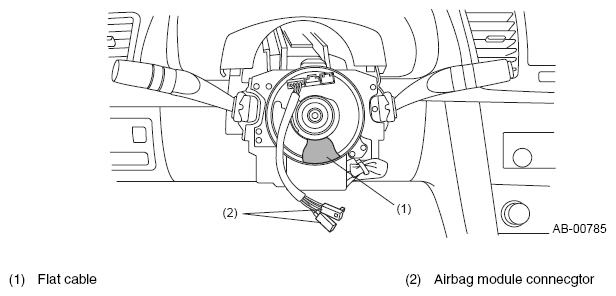

Fig 1: Identifying Airbag Module Connector And Flat Cable
G08260462Courtesy of SUBARU OF AMERICA, INC.
