Shift Link Assembly: Removal

Remove the manual transmission assembly from the vehicle. Refer to Manual Transmission Assembly .
Remove the back-up light switch and the neutral position switch. Refer to Switches and Harness .
Remove the transfer case together with the extension case assembly. Refer to Transfer Case and Extension Case Assembly .
Remove the extension case assembly.

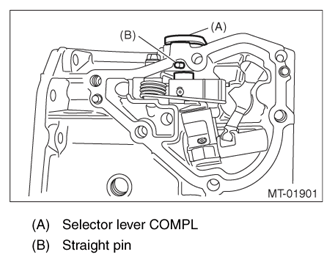

Pull out the straight pin.

Fig 1: Identifying Spring Pin And Selector Lever Compl
Courtesy of SUBARU OF AMERICA, INC.

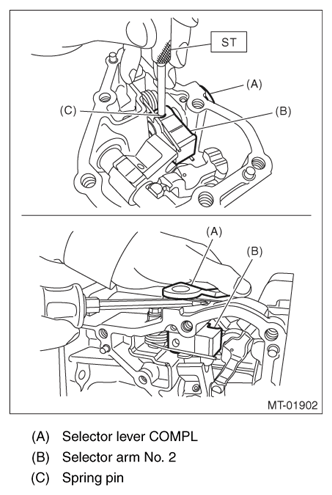

Use the ST to remove the spring pin, and remove the selector lever COMPL.
ST 398791700 SPRING PIN REMOVER 2

Fig 2: Removing Spring Pin Using ST
Courtesy of SUBARU OF AMERICA, INC.

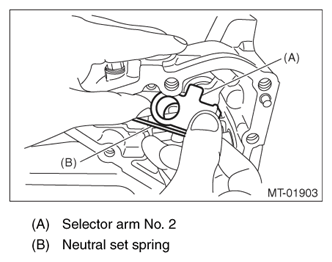

Pull out the selector arm No. 2 from neutral set spring.

Fig 3: Pulling Out Selector Arm No. 2 From Neutral Set Spring
Courtesy of SUBARU OF AMERICA, INC.

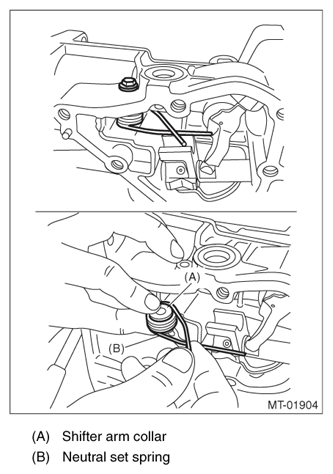

Remove the shifter arm collar and neutral set spring from transfer case.

Fig 4: Removing Shifter Arm Collar And Neutral Set Spring From Transfer Case
Courtesy of SUBARU OF AMERICA, INC.

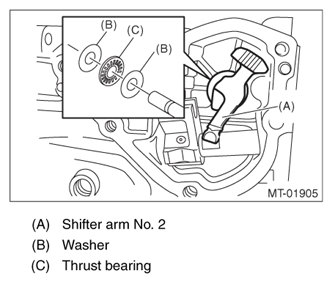

Remove the shifter arm No. 2, washers and thrust bearing from transfer case.

Fig 5: Removing Shifter Arm No. 2, Washers And Thrust Bearing From Transfer Case
Courtesy of SUBARU OF AMERICA, INC.

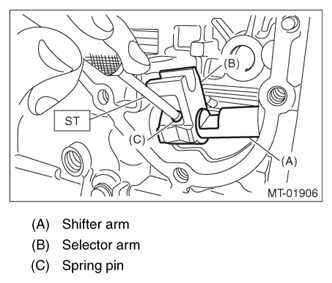

Use the ST to remove the spring pin, and remove the shifter arm and selector arm.
ST 398791700 SPRING PIN REMOVER 2

Fig 6: Removing Spring Pin, Shifter Arm And Selector Arm
Courtesy of SUBARU OF AMERICA, INC.

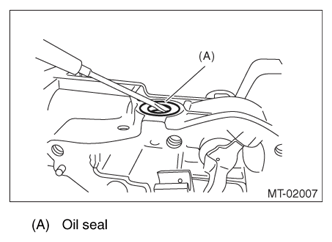

Remove the oil seal from the transfer case by using a screwdriver wrapped with vinyl tape etc.
NOTE: The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for removing the shifter arm No. 2.

Fig 7: Removing Oil Seal From Transfer Case Using Screwdriver Wrapped
Courtesy of SUBARU OF AMERICA, INC.

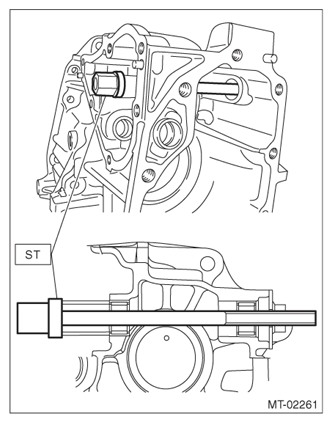

Remove the needle bearing from the transfer case by using a tube with the diameter of 20 mm (0.79 in) or 21 mm (0.83 in) and the ST.
ST 18763AA000 COMPRESSOR SHAFT

Fig 8: Removing Needle Bearing From Transfer Case
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Compressor Shaft (ST 18763AA000)
Courtesy of SUBARU OF AMERICA, INC.

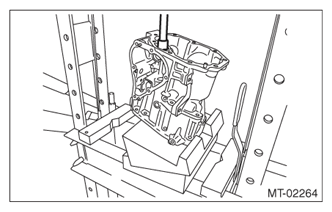

Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
ST1 498267300 CYLINDER HEAD TABLE

ST2 498267200 CYLINDER HEAD TABLE

Fig 10: Identifying Cylinder Head Table (ST1 498267300) And Cylinder Head Table (ST2 498267200)
Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing by using a round bar with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).

Fig 11: Removing Roller Bearing By Using Round Bar
Courtesy of SUBARU OF AMERICA, INC.

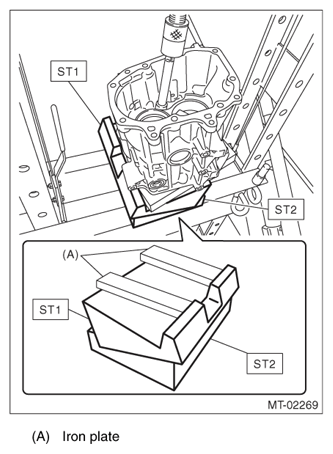

Flip over the transfer case, and set an iron plate between transfer case and ST.
NOTE:
- Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between the ST and transfer case.
- Set the iron plate so that the transfer case knock pin does not ride on the iron plate.

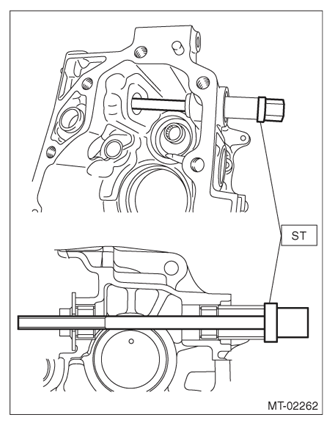

Remove the roller bearing by using a tube with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).

Fig 12: Removing Roller Bearing By Using Tube
Courtesy of SUBARU OF AMERICA, INC.

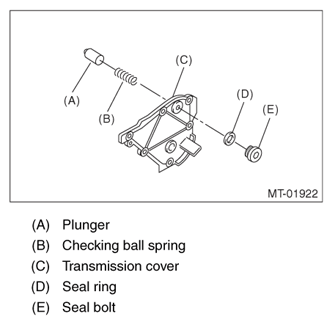

Remove the plunger and check ball spring from transmission cover.

Fig 13: Exploded View Of Plunger
Courtesy of SUBARU OF AMERICA, INC.
