Transfer Case

  1. Remove the interlock plate.
    NOTE: Do not remove the interlock plate mounting bolt if the parts are assembled as a transmission assembly. Do not attempt to replace the interlock plate unless necessary. Do not reuse the bolts and gaskets once they are removed.

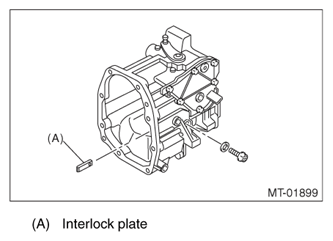

    Fig 1: Identifying Interlock Plate
    G07915098Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the shift link assembly. Refer to Shift Link Assembly  .
