Transfer Driven Gear: Installation

Select a thrust washer. Refer to Transfer Case and Extension Case Assembly .
Install the bearing outer races to extension case and transfer case.

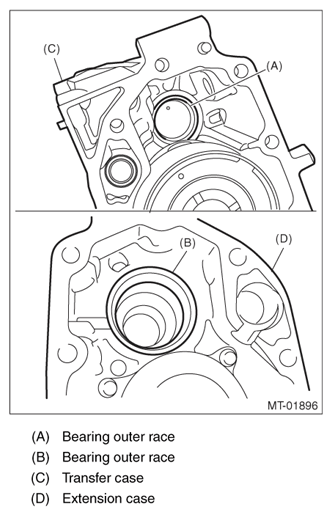

Fig 1: Identifying Bearing Outer Races (Extension Case Side)
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer driven gear.

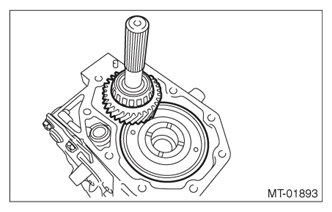

Fig 2: Identifying Transfer Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer case and the extension case assembly. Refer to Transfer Case and Extension Case Assembly .
Install the back-up light switch and the neutral position switch. Refer to Switches and Harness .
Install the manual transmission assembly to the vehicle. Refer to Manual Transmission Assembly .
