Heating and Air Conditioning: Description and Operation

FRESH/RECIRC DOOR ACTUATOR

REMOVAL
1. Set the intake door actuator to RECIRC position.
1. Turn the ignition switch to ON.
2. Operate the control panel and switch to RECIRC mode.
3. In the condition of step (2), turn the ignition switch to OFF.

2. Remove the instrument panel assembly.

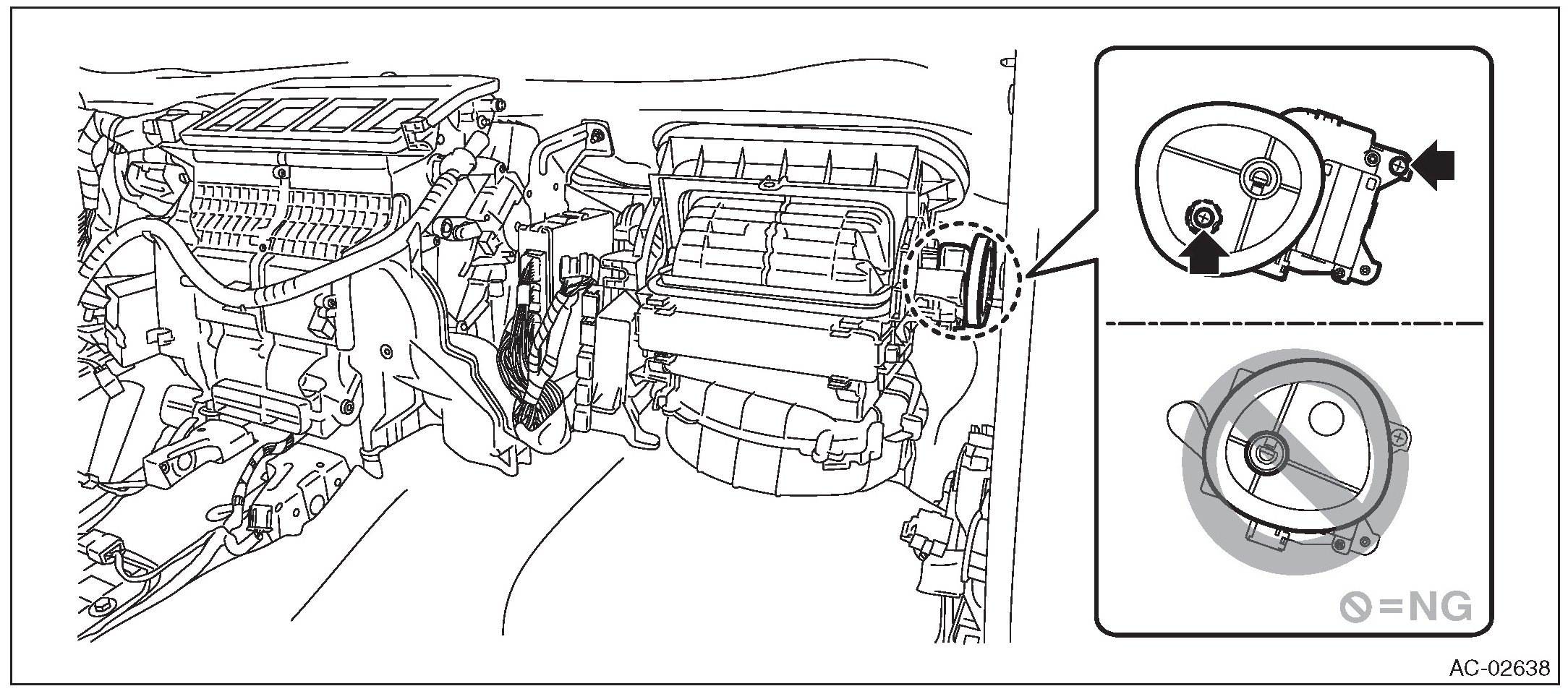

3. Remove the screw, and remove the intake door actuator.






INSTALLATION
Install each part in the reverse order of removal.
