Body and Frame: Locations

PANEL COMPONENTS

COMPONENTS

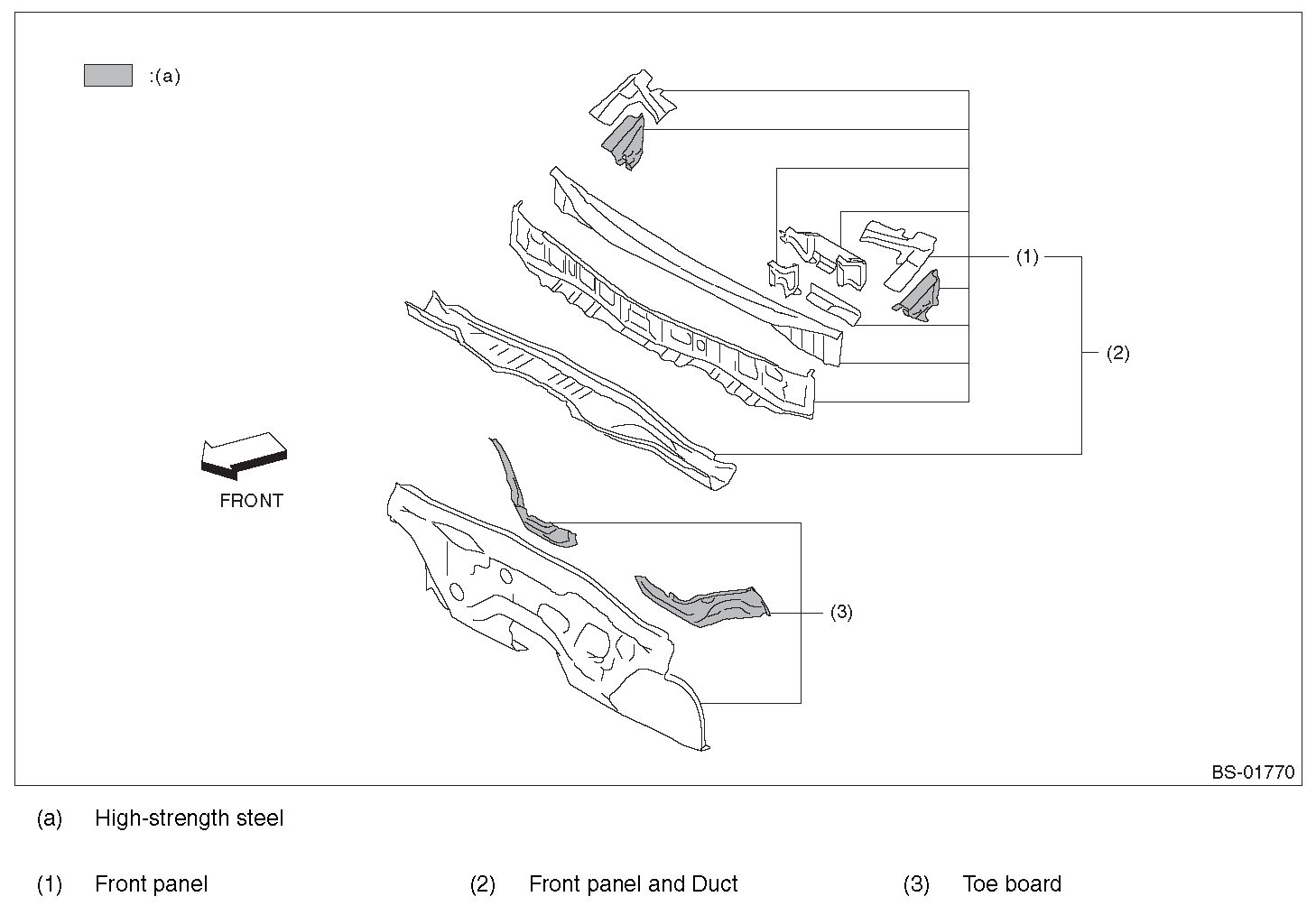

1. TOE BOARD & FRONT PANEL

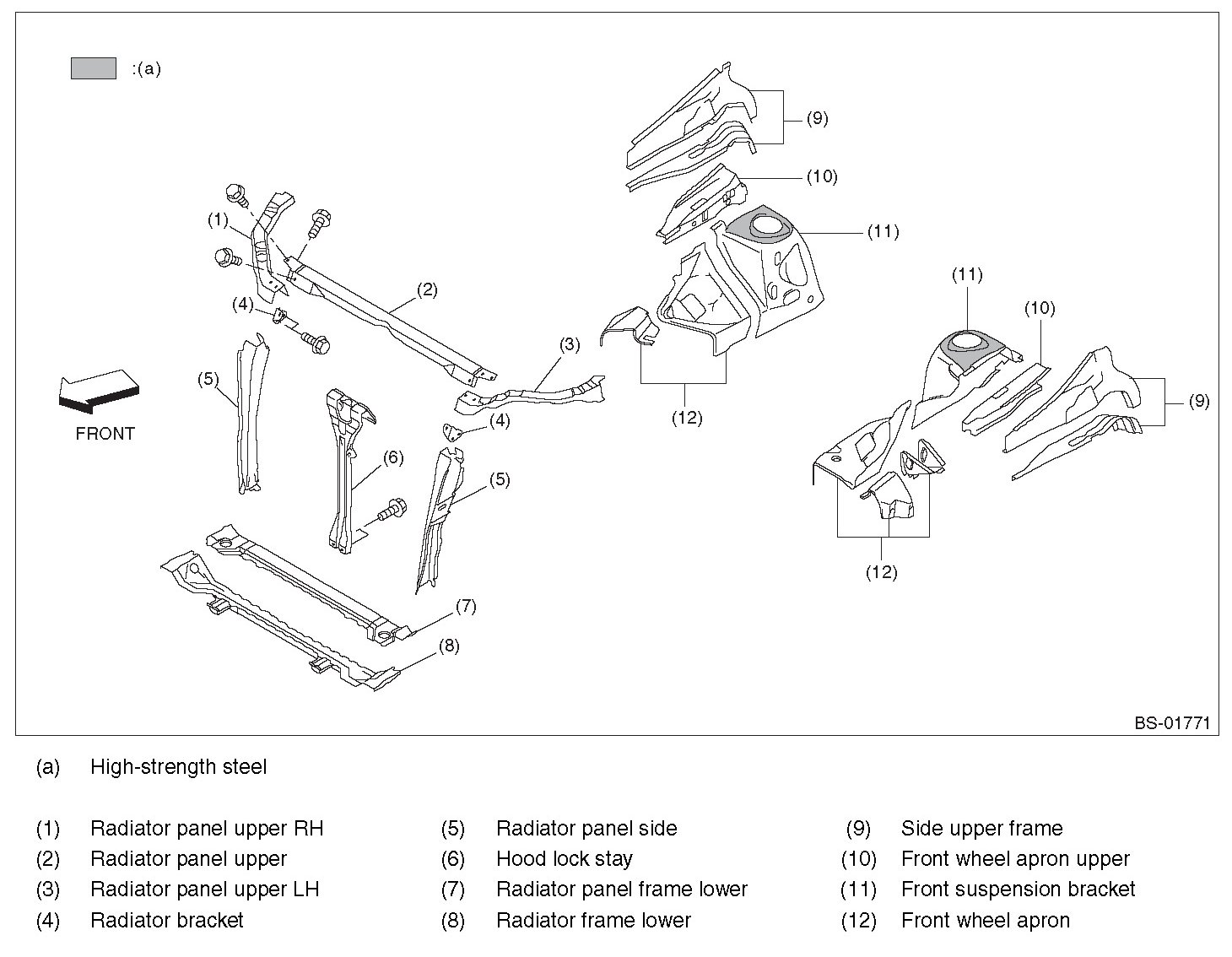

2. RADIATOR PANEL & FRONT WHEEL APRON

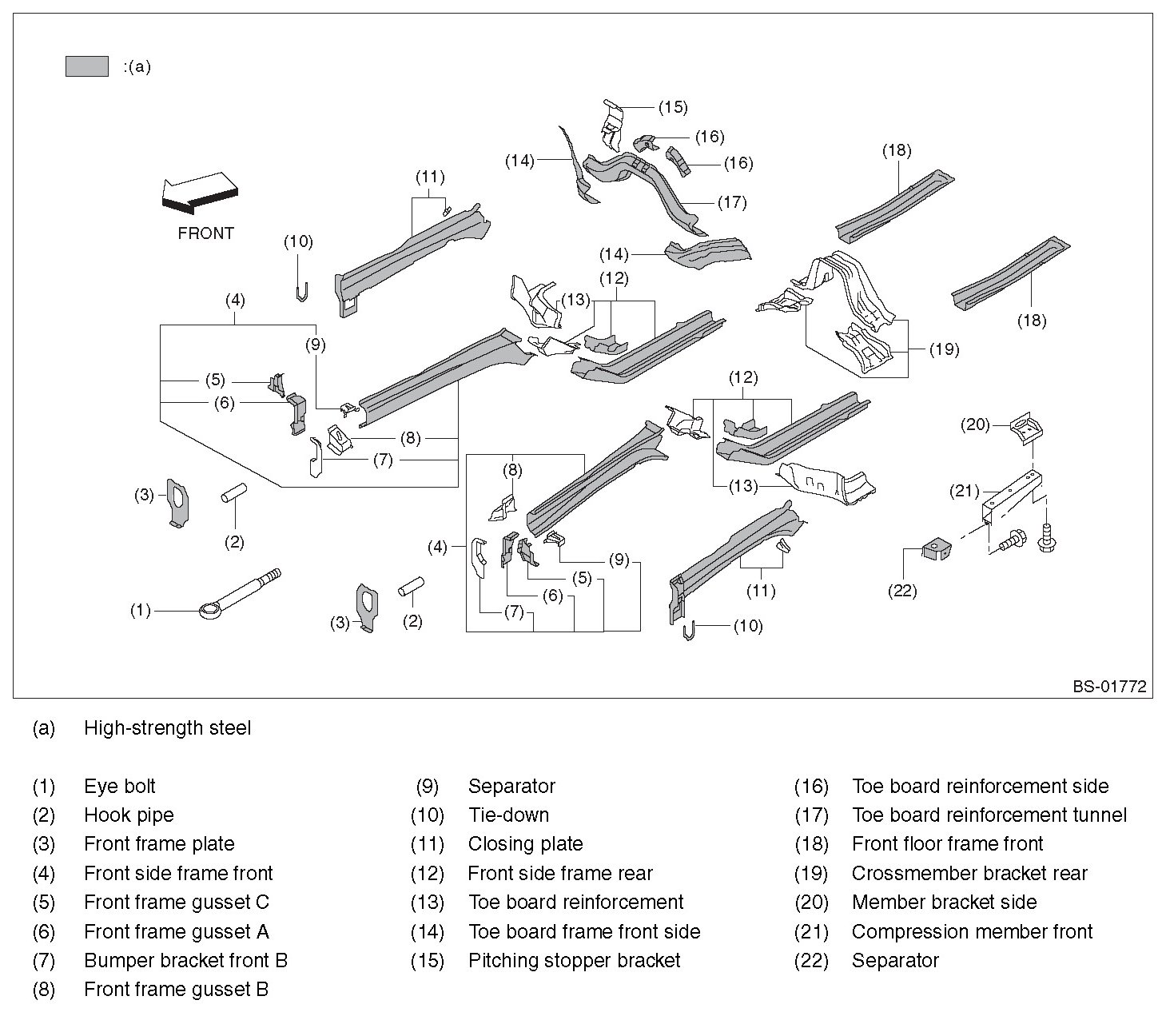

3. FRONT SIDE FRAME

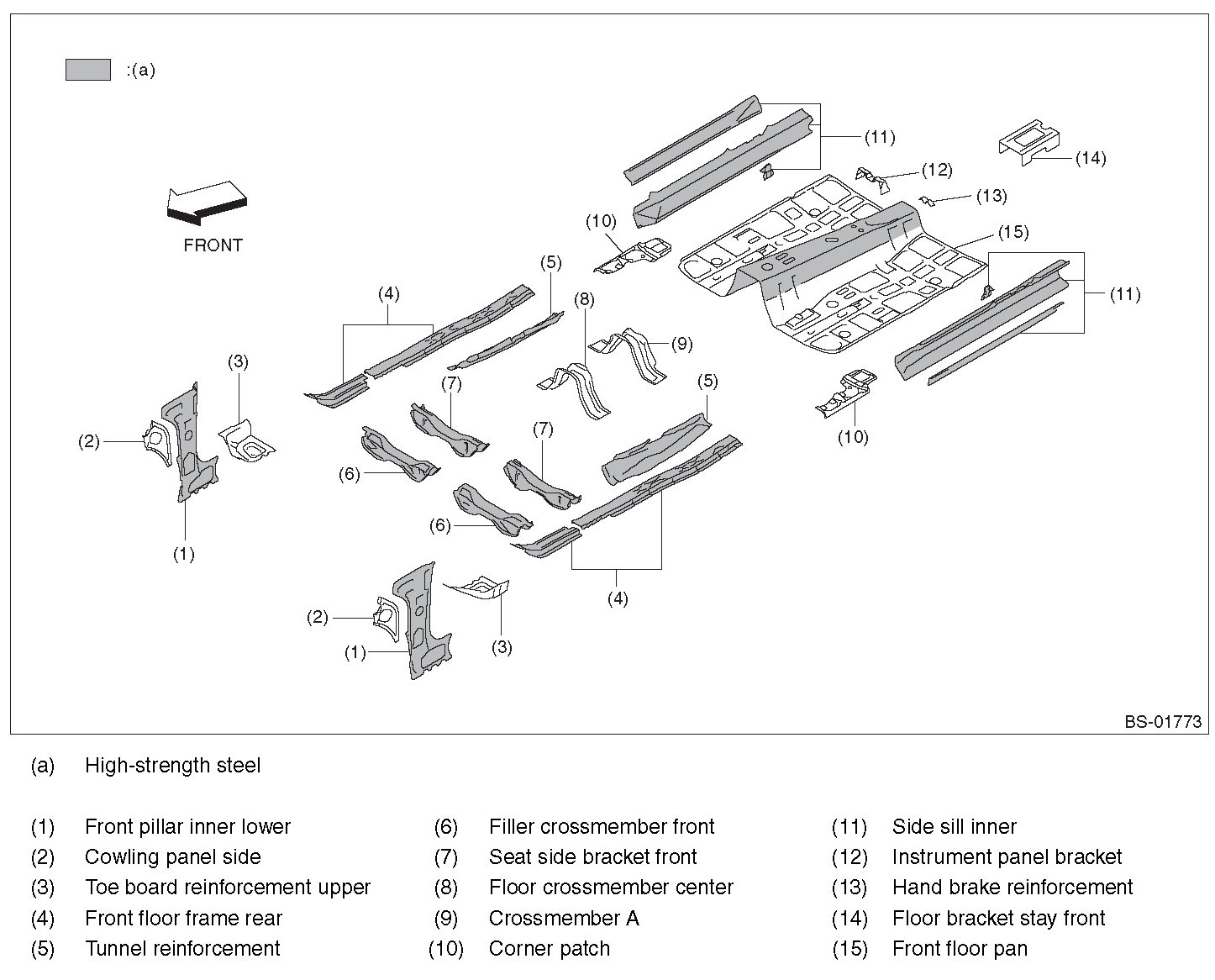

4. FRONT FLOOR PANEL

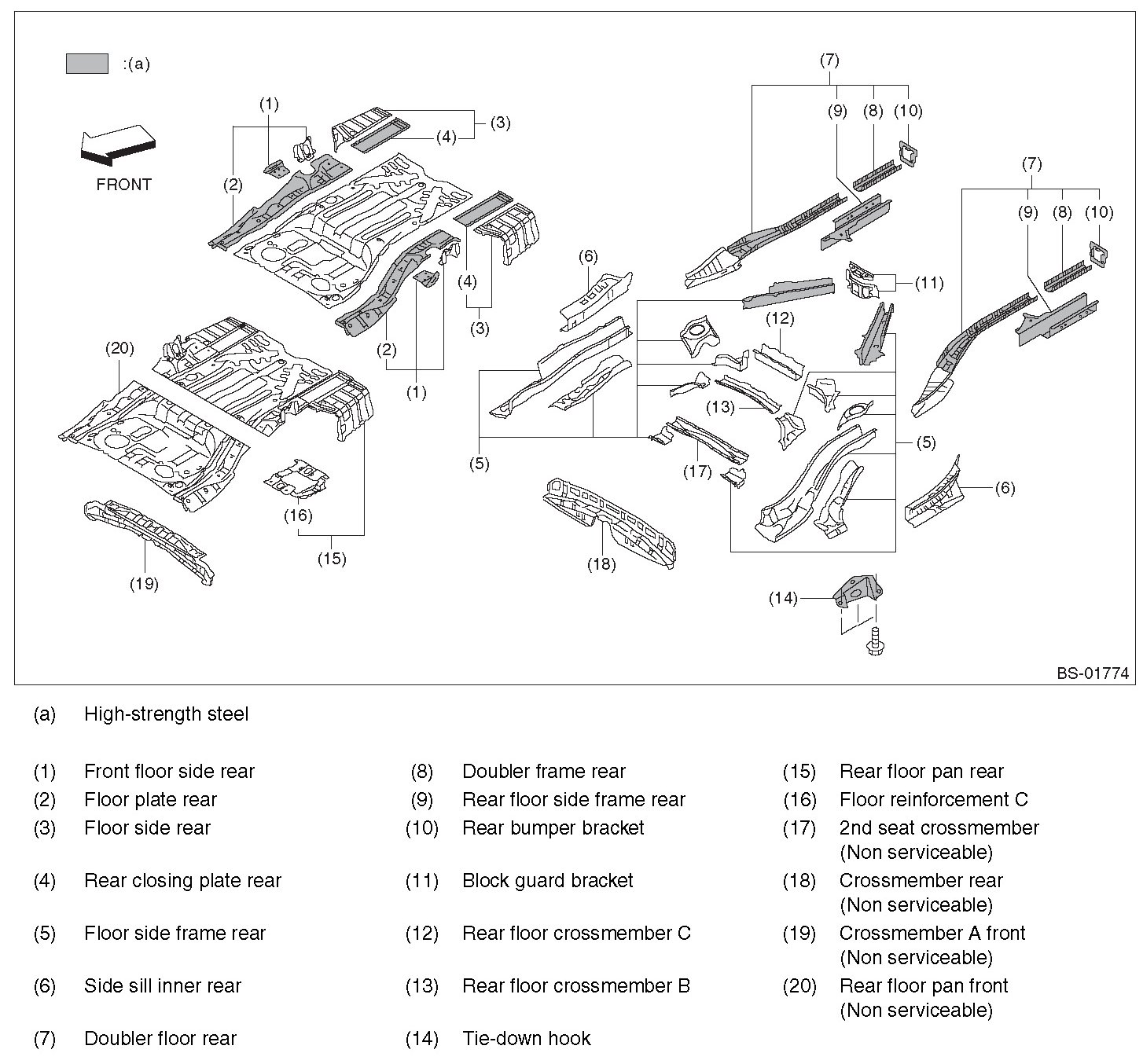

5. REAR FLOOR PANEL

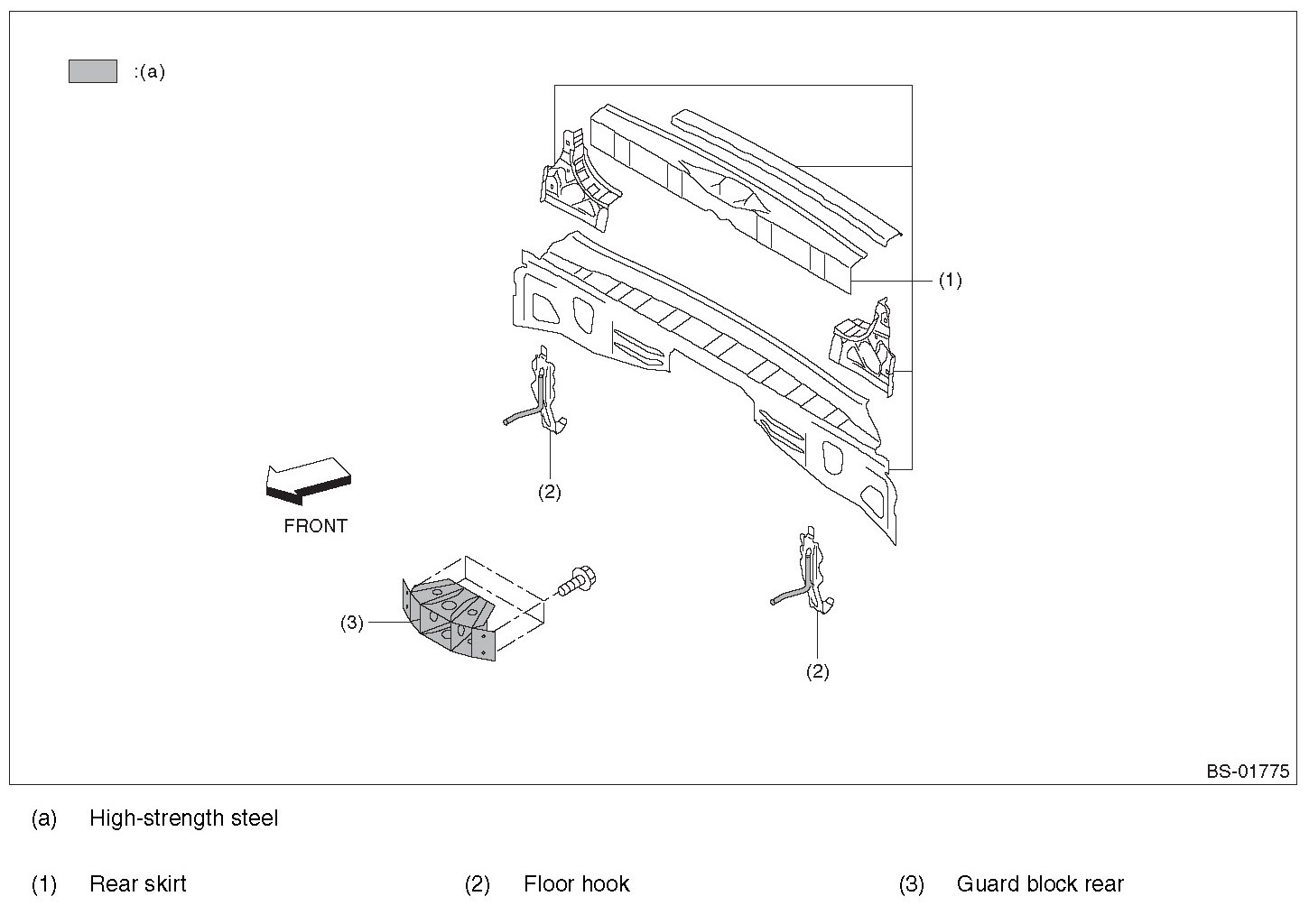

6. REAR SKIRT

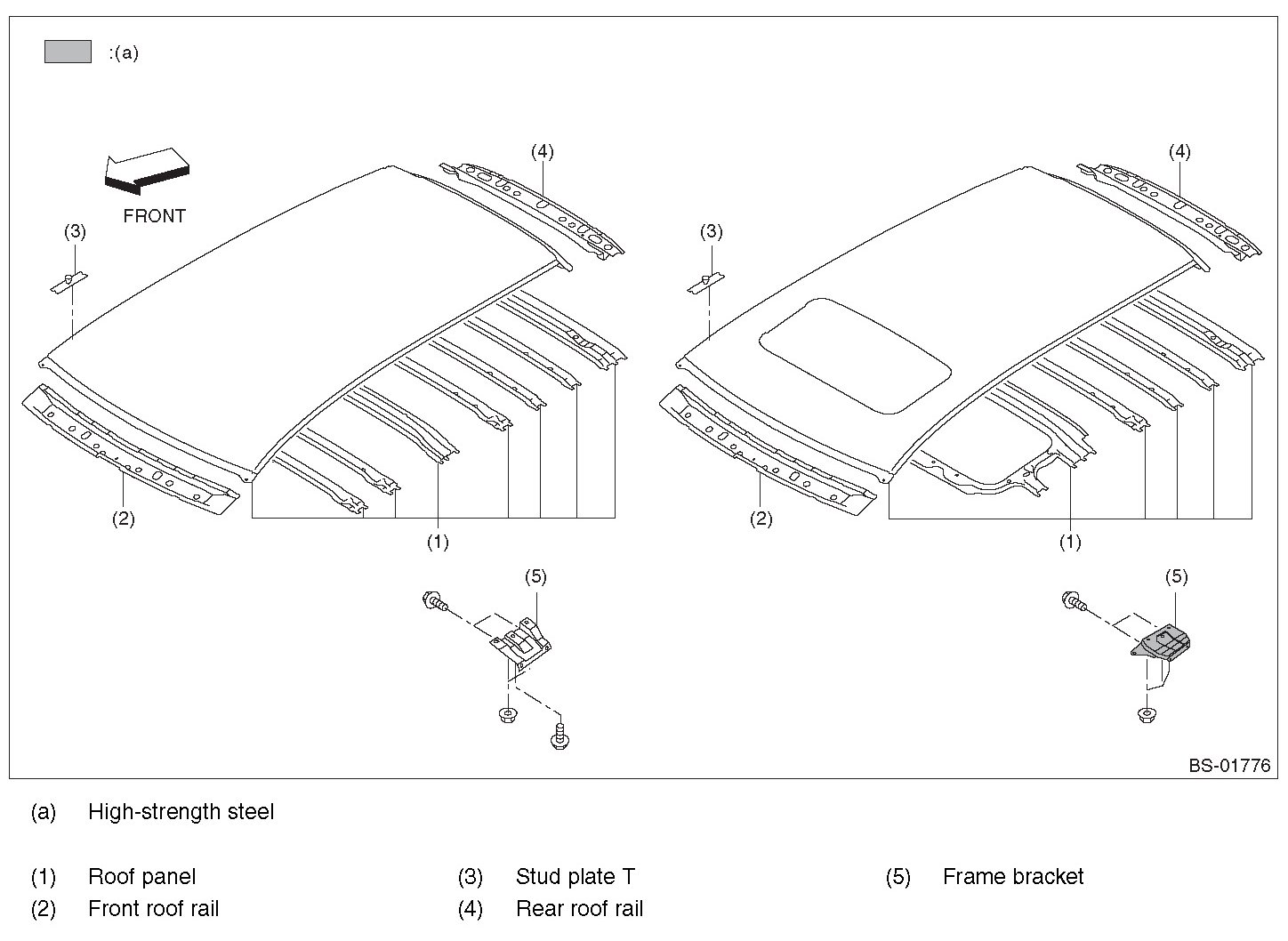

7. ROOF

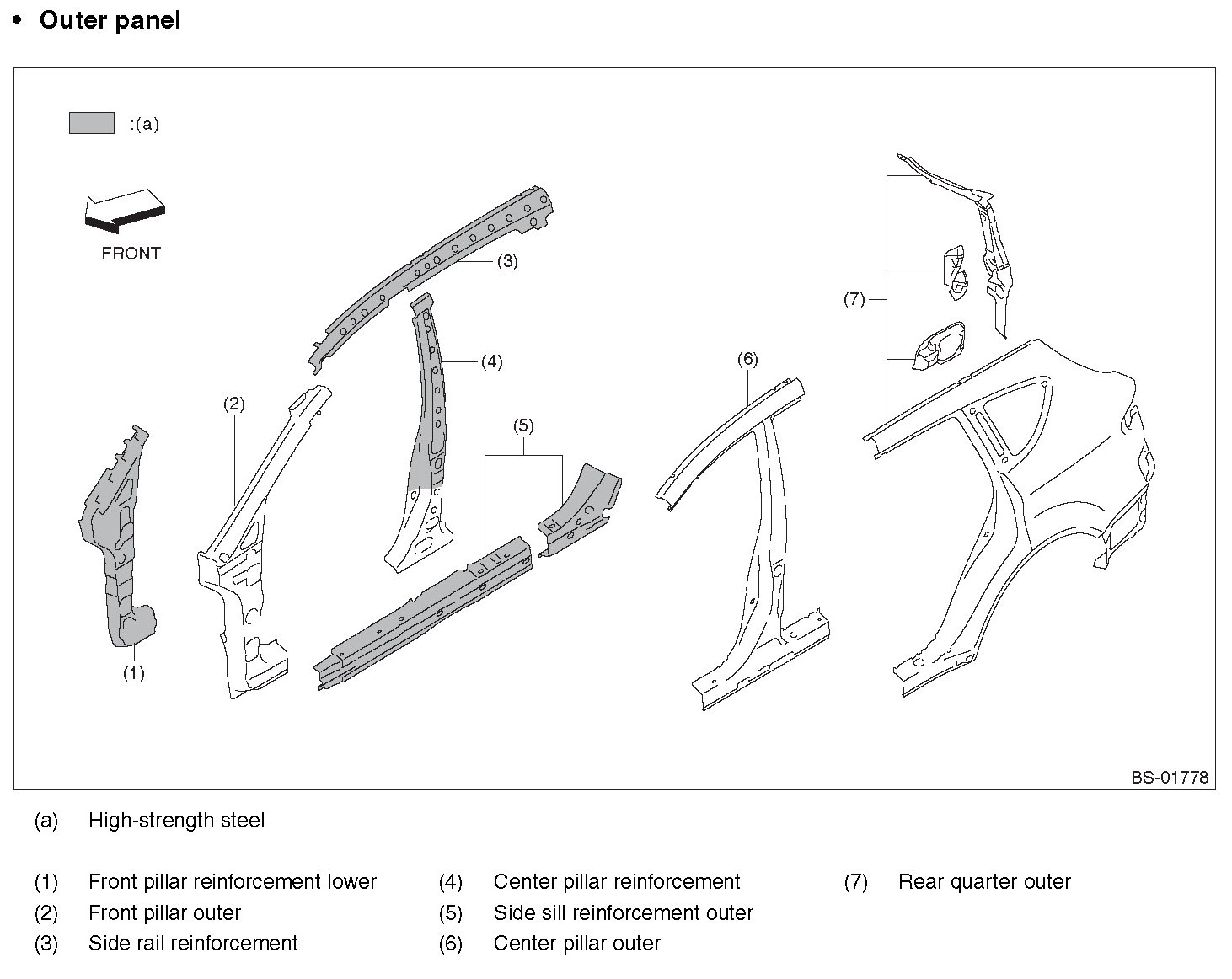

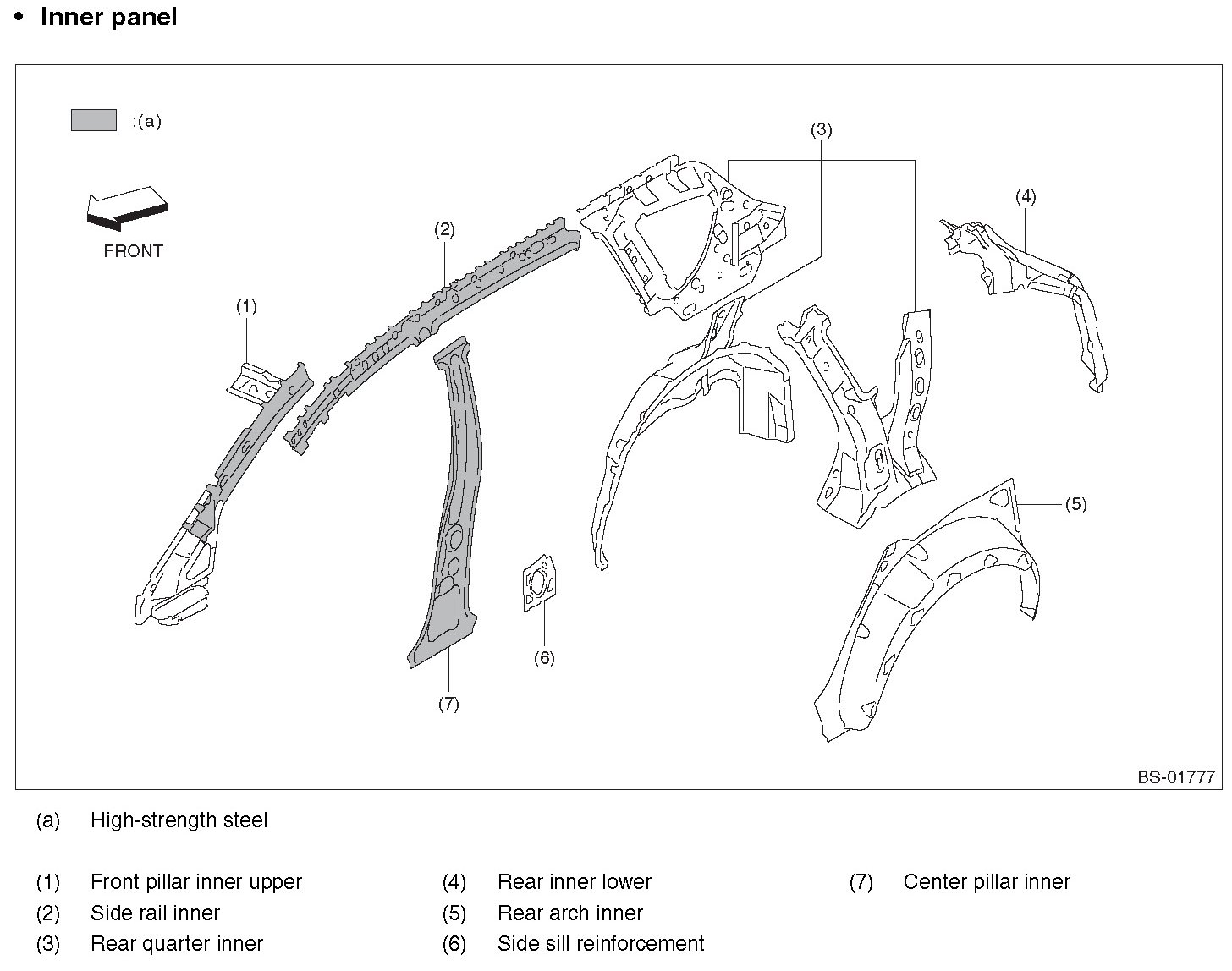

8. SIDE PANEL
