Splash Guard: Service and Repair

Front Under Cover







REMOVAL

1. Lift up the vehicle.

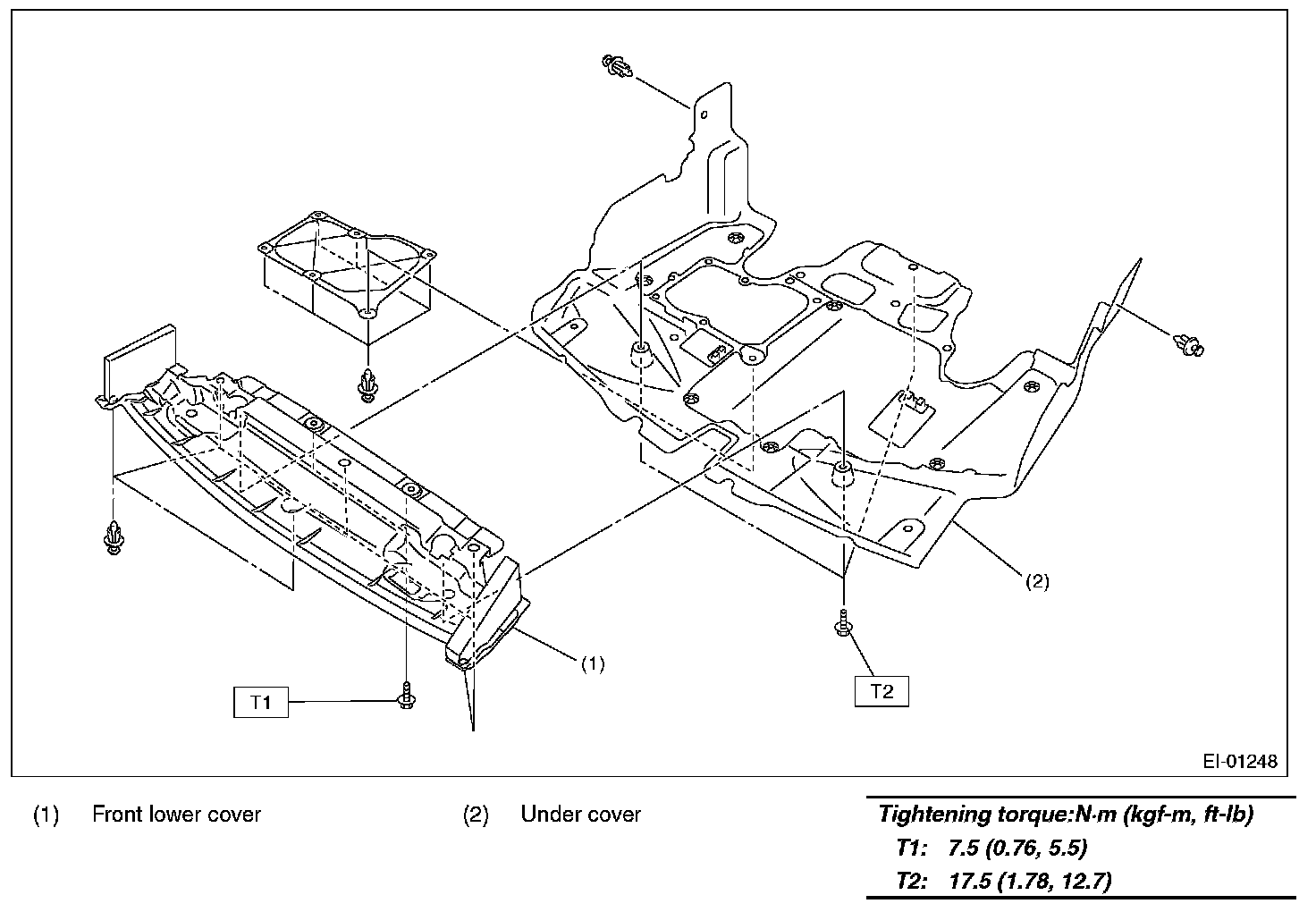

2. Remove the clips and bolts, then remove the undercover.







3. Remove the clips and bolts, then remove the front lower cover.







INSTALLATION

Install in the reverse order of removal.

Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to UNDER COVER, COMPONENT, General Description.]
