Timing Cover



Timing Cover Bolts

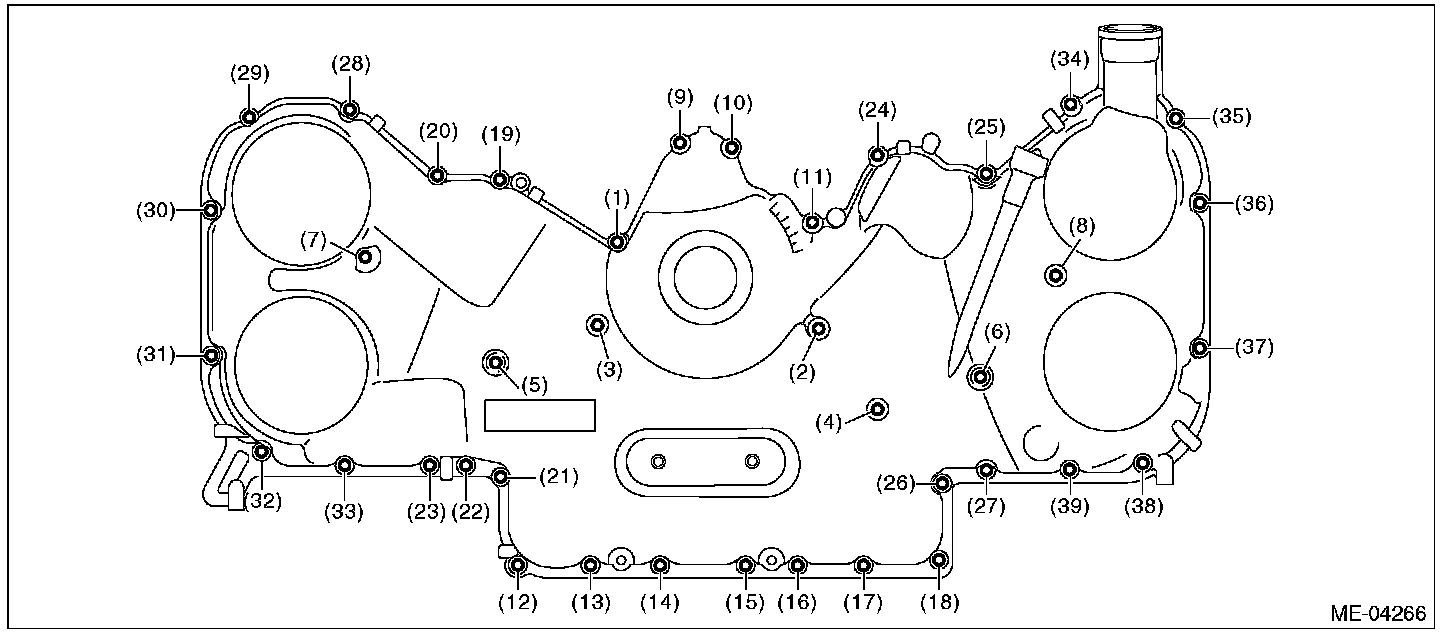

Tighten the bolts in the numerical order as shown in the figure.
Tightening torque 10 Nm (1.0 kgf-m, 7.4 ft-lb)
