Rearview Mirror (RCD Model): Removal

Disconnect the ground cable from battery.
Remove the harness cover (a) and connector cap (b).

Fig 1: Identifying Rearview Mirror Components (RCD Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.
Remove the TORX® screw (1).
Slide the rearview mirror (2) to the upper side (A) of windshield glass (3), and remove the mirror from the mount (4).
CAUTION:
- Be careful not to damage the mirror surface.
- Be careful not to damage the windshield glass.

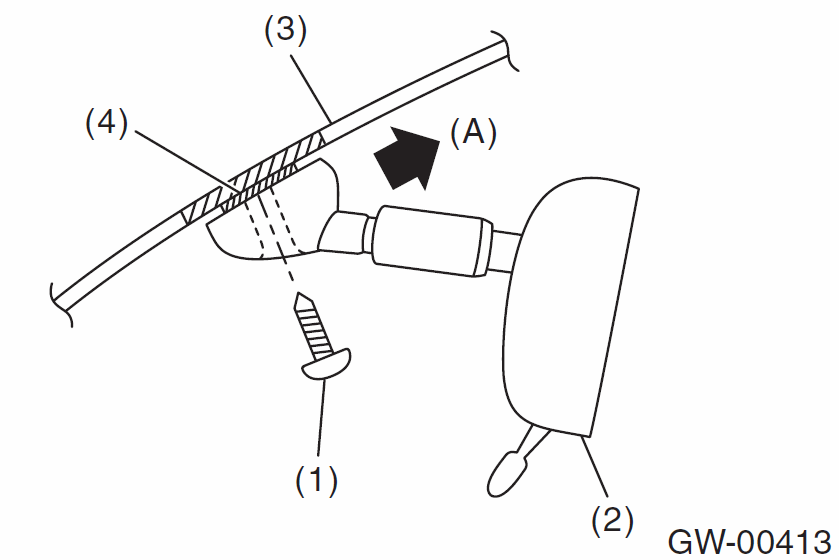

Fig 2: Identifying Rearview Mirror Components (RCD Model)
Courtesy of SUBARU OF AMERICA, INC.
