Oil Pump & Front Brake

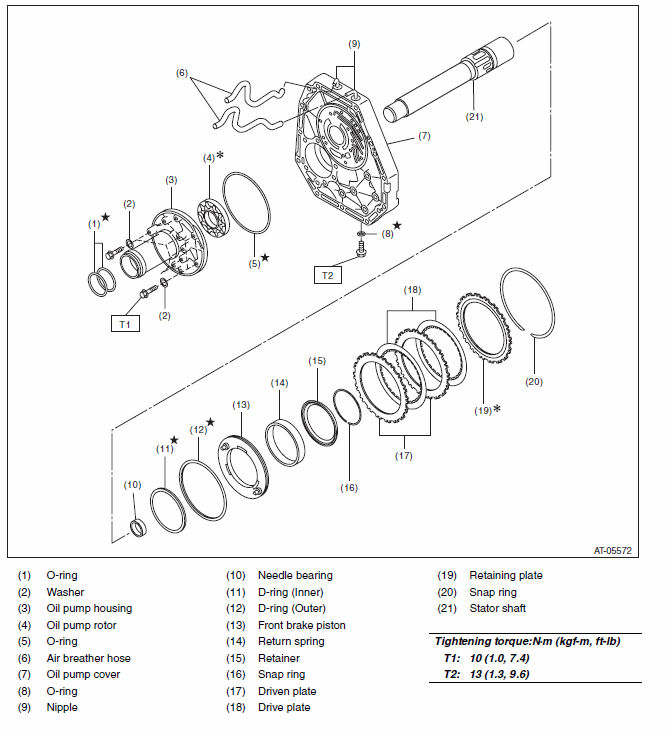

Fig 1: Exploded View Of Front Brake And Oil Pump With Torque Specifications
G00514636Courtesy of SUBARU OF AMERICA, INC.
