Timing Cover

Timing Chain Cover Torque and Sequence

Temporarily install the timing chain/belt cover SUB-ASSY with the 32 bolts.

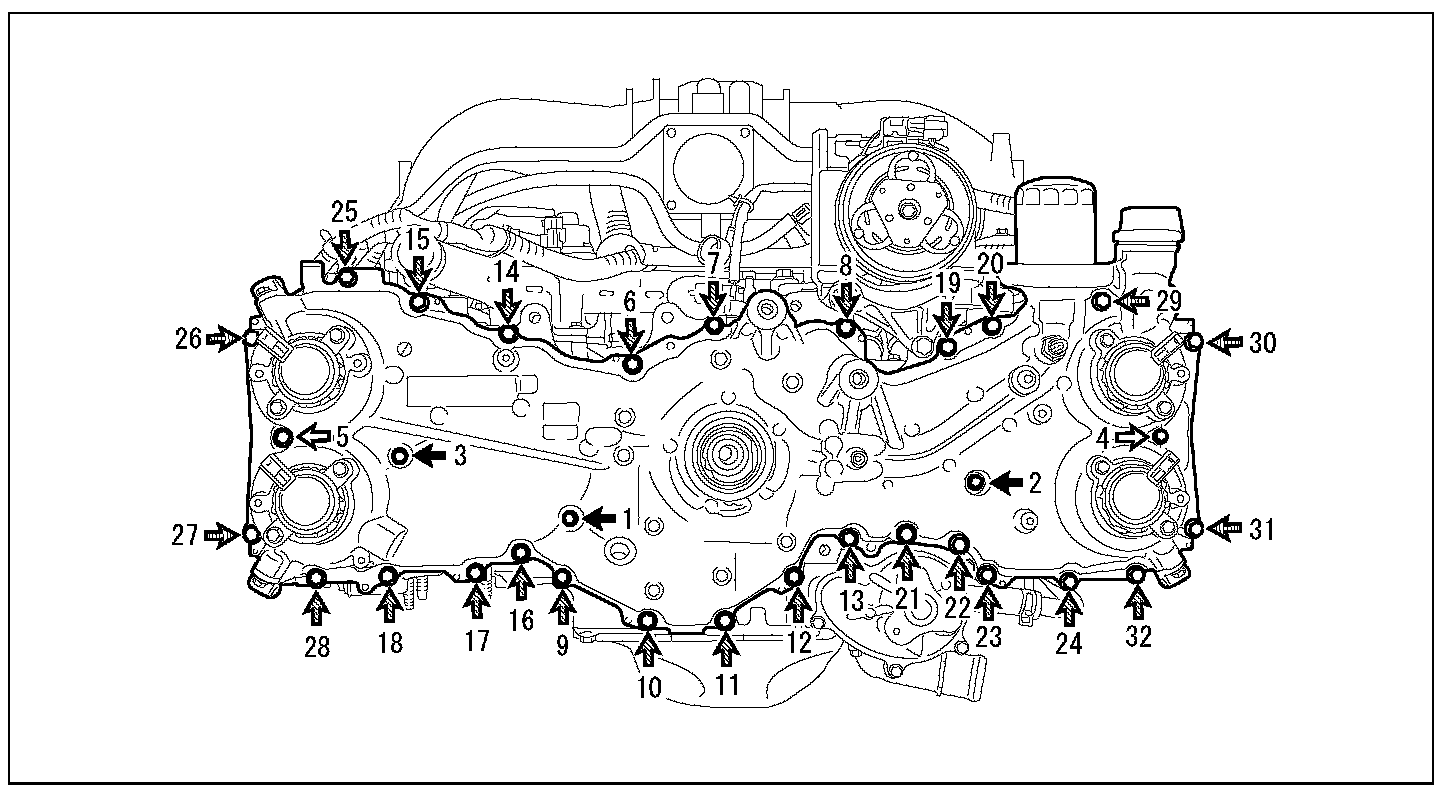

Tighten the 32 bolts in the order as shown in the figure.





Captions in illustration





Standard value:
Bolt A, B 10 Nm {102 kgf-cm} {7.4 ft-lbf}
Bolt C, D 25 Nm {255 kgf-cm} {18.4 ft-lbf}
