Installation

Installation

1. Correct handling and precautions for operation.
2. Power steering computer bracket installation.
(1) Install the power steering computer bracket in place with the four screws.
3. Install the power steering computer ASSY.
(1) Install the power steering computer ASSY in place with the two bolts.
Standard value:T=10Nm {102kgf-cm} {7.4ft-lbf}
(2) Connect the three connectors to the power steering computer ASSY.





(3) Ensure that the connectors are securely connected to the power steering computer ASSY.

Captions in illustration





NOTE:

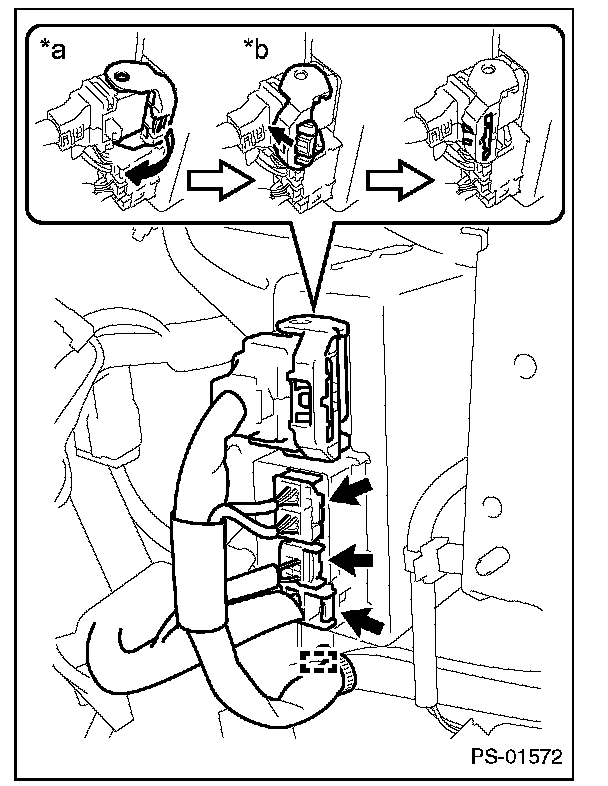

As shown in the figure, fold down the connector lock lever to establish a connection and push in the lock for the lock lever securely.

(4) Install the wiring harness clamp to the power steering computer bracket.
4. Install the instrument panel junction block ASSY
5. Steering zero point calibration.
(1) Always perform a steering zero point calibration after replacing the power steering computer ASSY. Programming and Relearning
