Control Module I/O Signal

Control Module I/O Signal

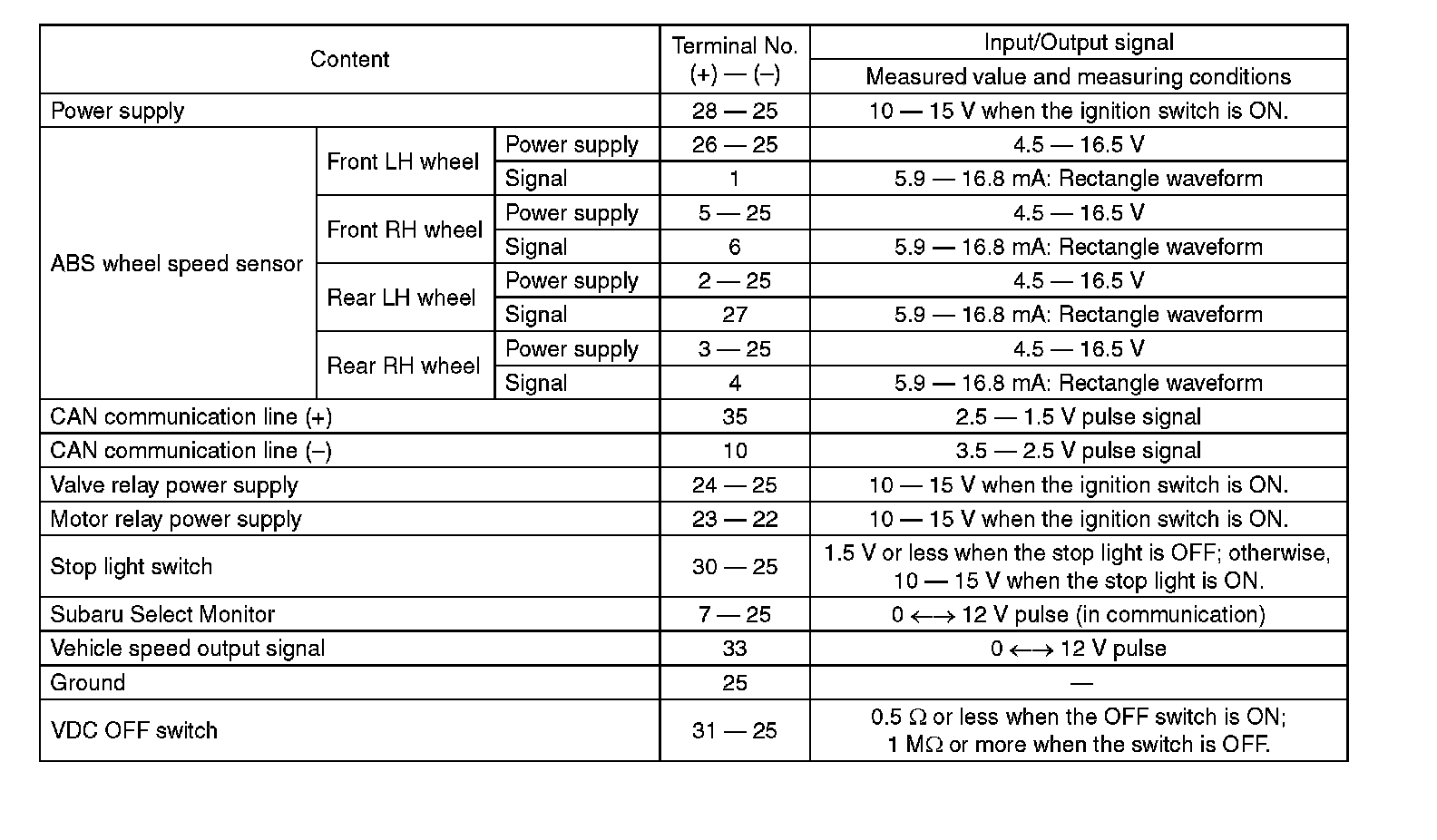

ELECTRICAL SPECIFICATION





NOTE:
^ Terminal numbers in VDCCM&H/U connector are shown in the figure.
^ When the connector is removed from the VDCCM&H/U, the brake warning light (EBD warning light), ABS warning light, VDC warning light & VDC indicator light, VDC OFF indicator light, and the hill start assist warning light illuminate.
