Control Module

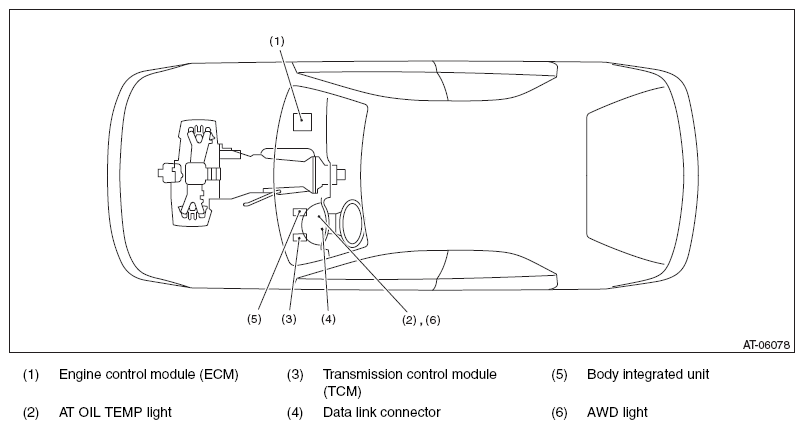

Fig 1: Control Module Electrical Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

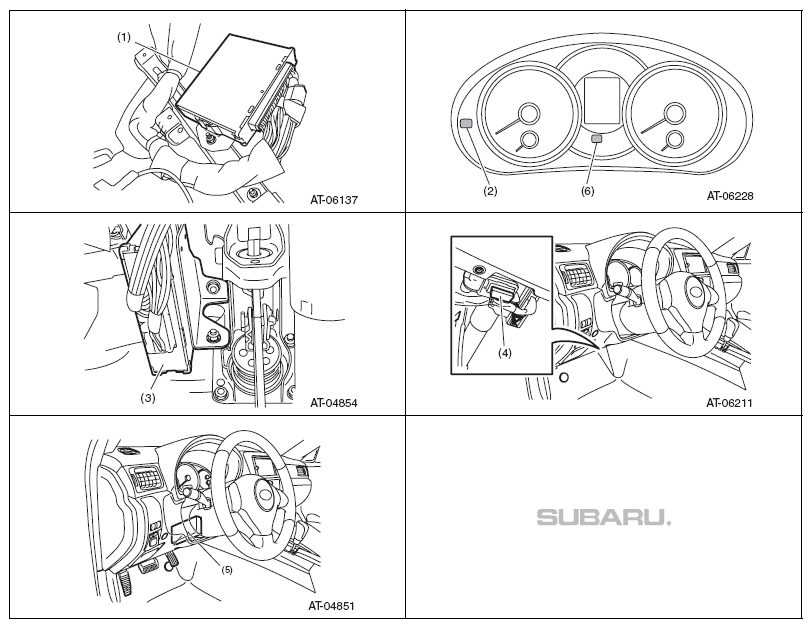

Fig 2: Control Module Electrical Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
