Customer Satisfaction - Navigation SD Card Update Program (15-169-13)

CUSTOMER SATISFACTION - NAVIGATION SD CARD UPDATE PROGRAM

TECHNICAL SERVICE BULLETIN

APPLICABILITY

2013MY Legacy and Outback with Subaru STARLINK™/Aha™ with Fujitsu-Ten (F10) Audio/Navigation System

INTRODUCTION

This Bulletin provides the procedure for reprogramming the F10 SD Card Navigation System with the latest software version.

PART INFORMATION

The "Update Kit" which must be ordered from your facing RDC through normal parts channels  consists of:

• SD card containing the updated software
• Updated Navigation system Owner's Manual Supplement
• Installation instructions document

  MODEL	PART NUMBER ON SD CARD	"UPDATE KIT" PART NUMBER
  Legacy/Outback	86283AJ66A	MSA5M1321K

SERVICE PROCEDURE/INFORMATION

BEFORE YOU BEGIN:

• Confirm the audio/navigation unit is equipped with STARLINK and Aha and the current software version has not already been updated. See Steps  11- 13  below for how to determine which software version is currently installed.
• If applicable confirm the customer has installed the Aha Radio application on their Smartphone, the device is paired to the audio/navigation unit and the Aha Radio application is fully operational.
• Make sure the vehicle's battery is fully charged.
• DO NOT connect any battery chargers or auxiliary power supply as part of this procedure.
• Record the customer's navigation guidance volume, handsfree ringtone and ringtone volume settings.

Once you have obtained the proper Update Kit for your application, proceed with the software installation procedure outlined below.

1. Confirm the Push Start Switch (or ignition key) is in the "OFF" position.

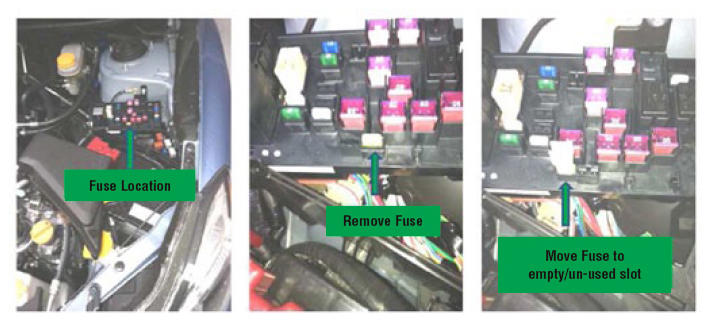

2. Remove the Back-Up fuse from the Main Box (M/B, under-hood fuse box).
   NOTE: the Back-Up fuse locations may vary by model. See pg. 12-12 in the Owner Manual.
3. Once the fuse is removed, eject the current (old) SD card from the audio/navigation unit.

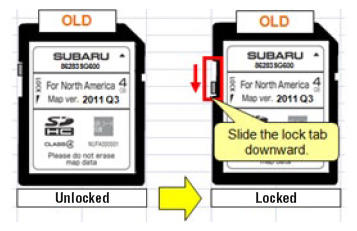

4. To distinguish between the old and the new SD cards, slide the lock tab downward on the old card as shown in the illustration below, right.

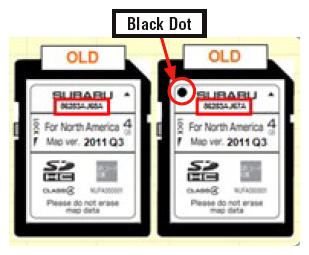

   IMPORTANT: The old SD card must be one of the two shown in the illustration below. If it is not, do not proceed further until it can be confirmed the audio/navigation unit is applicable for the reprogram.

   The part number on the old SD card must be 86283AJ68A or 86283AJ67A (w/black dot).

   IMPORTANT NOTES:

   • The 86283AJ67A (with the black dot) indicates the vehicle is a 2013MY Legacy or Outback that received an Aha upgrade/exchange unit.
   • The 86283AJ68A is used from the mid-2013MY running production change when Aha was added.
   • A 86283AJ67A WITHOUT  a black dot is NOT  eligible for this update as the audio/navigation unit used with that card is not Aha-equipped and therefore will not support the specific software provided in the update referenced in this bulletin.

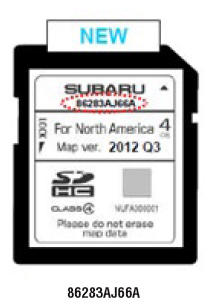

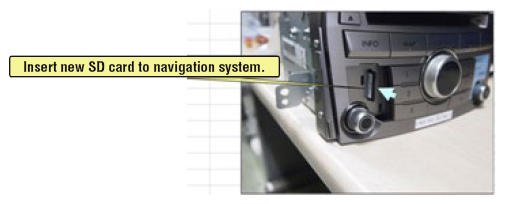

5. After verifying you have the proper new SD card, insert it into the audio/navigation unit.
6. Re-install the Back-Up fuse into its proper location in the M/B (Main fuse box).
7. Push the Push Start button once (or turn key) to "ACC" position.
8. After the Push Start Button (or key) has been switched to "ACC", reprogramming will start automatically and continue for approximately one minute. During this time, the display screen will be blank.

   IMPORTANT NOTES:

   • Until the reprogramming process has completed, do not turn the ignition switch off or crank the engine as damage to the audio/navigation unit's internal memory may result. If the internal memory becomes damaged, the audio/navigation unit will need to be replaced.
   • DO NOT touch the brake pedal.

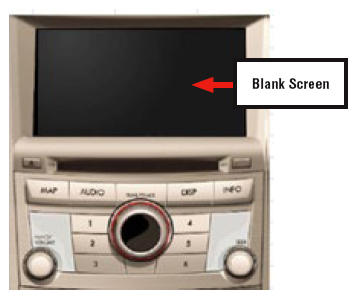

   • NO activity (status bar) will be shown on the BLANK screen while reprogramming takes place.
     CAUTION: While screen is BLANK, do not touch the screen or any of the unit's buttons or knobs.
   • Screen will remain BLANK for at least 60 seconds once the programming starts (BE PATIENT).
   • Wait for the programming to complete (Step 9) before touching anything.

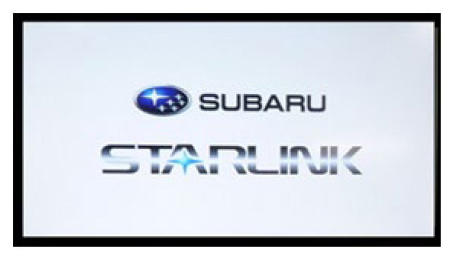

9. When the reprogramming is completed, the start-up screen will be displayed as shown below.

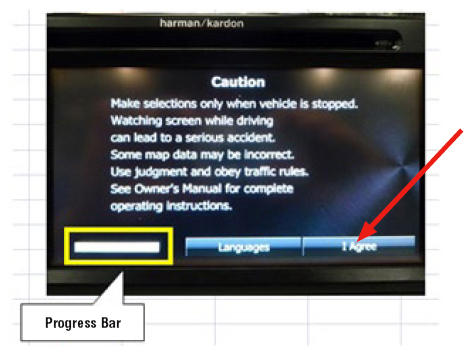

10. Next, press the "I Agree" button on the screen and confirm the progress bar proceeds to full as shown below.

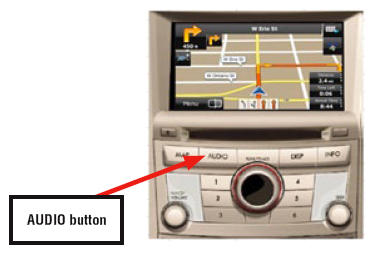

11. Press the "AUDIO" button once.

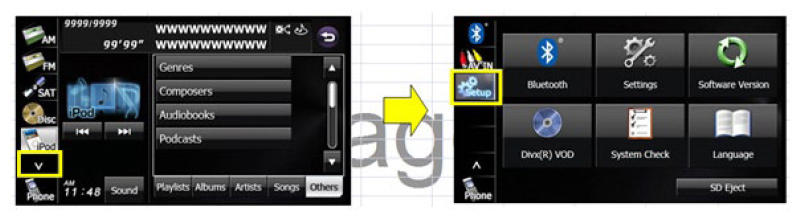

12. Next, press the "V" (down arrow) button then press the "Setup" button.

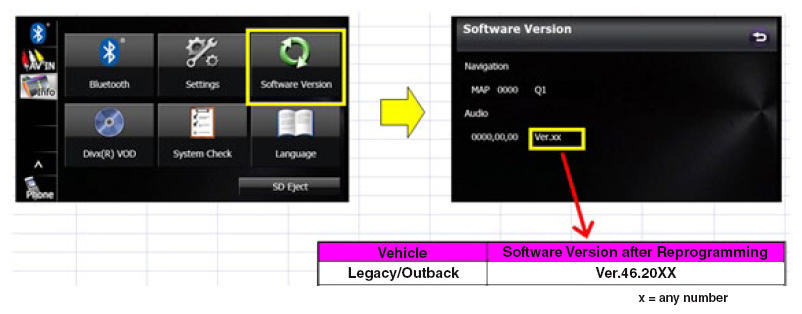

13. Press "Software Version" and verify the proper version has been installed.

    If the software version number differs from what is shown above, repeat the reprogramming procedure.

14. The customer must register (provide an e-mail address and establish a password) and log into the Aha Radio application before the Aha button is selected from the system's menu. They will also need to log onto Twitter, Facebook, Slacker, etc. (if applicable) to have access through the Aha application.
15. Although phone pairing, phonebook, and radio station presets will not be lost during this procedure, it is advisable to reset the previously recorded navigation guidance volume, handsfree ringtone and ringtone volume to their pre-update levels as a customer satisfaction measure.

CLAIM INFORMATION

LABOR DESCRIPTION	LABOR OPERATION #	FAIL CODE	LABOR TIME
AUDIO/NAVIGATION REPROGRAMMING FOR AHA SYSTEM	A067-339	ZPP-48	0.3
