Power Amplifier: Removal

NOTE: harman/kardon® audio system only.
  1. Disconnect the ground cable from battery.
    NOTE: For the power seat, move the seat before removing the battery ground terminal.
  2. Move the passenger's seat to the front-most position.
  3. Remove the power amplifier.
    1. Disconnect the harness connector.
    2. Remove the nut and remove the power amplifier.

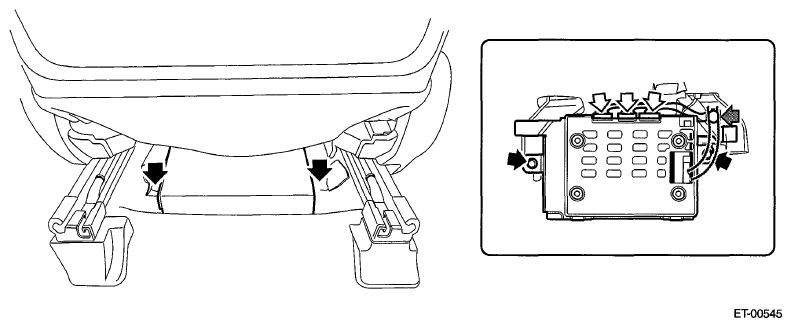

      Fig 1: Locating Power Amplifier Mounting Nuts
      G06653589Courtesy of SUBARU OF AMERICA, INC.
