Marker Adjustment Mode: Navigation

  1. Prepare the target point. Refer to INSPECTION .
  2. Display the audio OFF screen by turning the ignition switch to ON, then touch the screen in the order of (1) - (6).
    Fig 1: Display - Audio Off Screen
    G06653572Courtesy of SUBARU OF AMERICA, INC.
  3. When the Dealer Diag menu screen is displayed, touch the "Rear Camera Setup" from the items.
    Fig 2: Display - Dealer Diag Menu Screen
    G06653573Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: Do not select the item other than "Rear Camera Setup". The navigation system can not operate normally.
  4. Shift the select lever to the "R" position to display the image of the rearview camera.
  5. Touch the adjustment keys on the display screen to adjust the marker line.
    • Sedan model

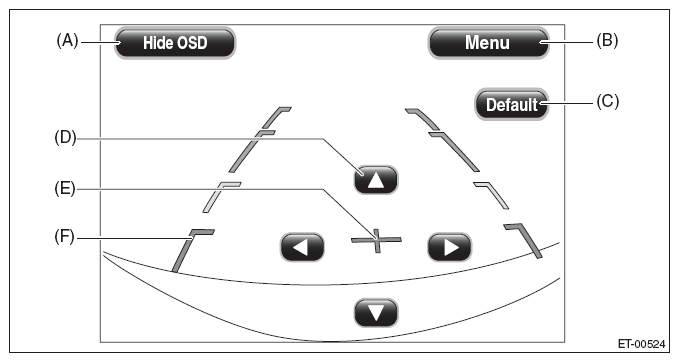

      Fig 3: Display - Adjustment Keys Screen (Sedan Model)
      G07916276Courtesy of SUBARU OF AMERICA, INC.
    • OUTBACK model

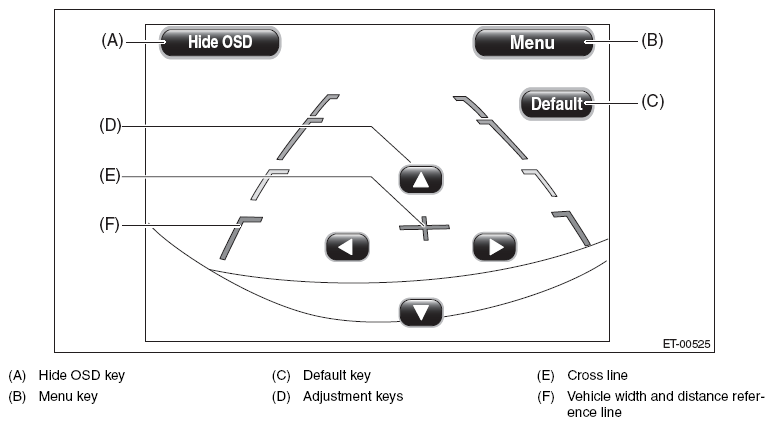

      Fig 4: Display - Adjustment Keys Screen (Outback Model)
      G08584641Courtesy of SUBARU OF AMERICA, INC.
      1. Confirm that the target point position in the display screen is identified.
      2. Adjust by touching the adjustment keys so that the cross line (E) and target point join together.
      NOTE:
      • Hide OSD key: Touching the Hide OSD key hides the operation keys. When the operation keys are not displayed, touching the display screen displays the operation keys again.
      • Menu key: Touching this key shifts to the Dealer Diag Menu screen.
      • Default key: Touching this key resets the adjustment values to the default condition.
  6. Turn the ignition switch to OFF and wait for 60 seconds or more before turning the ignition switch to ON again.
    CAUTION: If the ignition switch is turned to OFF, be sure to wait for 60 seconds or more before turning the ignition switch to ON again.
    If turning the ignition switch to ON again or disconnecting the ground cable from battery within 60 seconds after turning the ignition switch to OFF, the navigation unit data updating can not be performed correctly.
  7. Shift the select lever to the "R" position to display the image of the rearview camera.
  8. Confirm that the marker line position is correctly adjusted before turning the ignition switch to OFF, then finish the procedures.
