Combination Switch (Light): Inspection: Notes

  1. Disconnect the combination switch (light) connector.
  2. Measure the resistance between combination switch (light) connector terminals.

    Preparation tool:

    Circuit tester

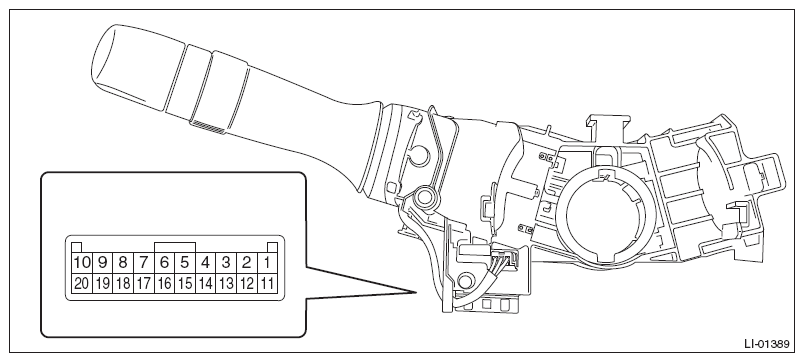

    Fig 1: Identifying Combination Switch (Light) Connector Terminals
    G08584393Courtesy of SUBARU OF AMERICA, INC.
  3. Replace the combination switch (light) if the inspection result is not within the standard value.
