Oil Control Solenoid: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08579605Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct. (RH side only) Refer to REMOVAL .
  3. Remove the reservoir tank. (LH side only) Refer to REMOVAL .
  4. Disconnect the connector (A) from the intake oil control solenoid, and remove the intake oil control solenoid from the chain cover.
    • RH side

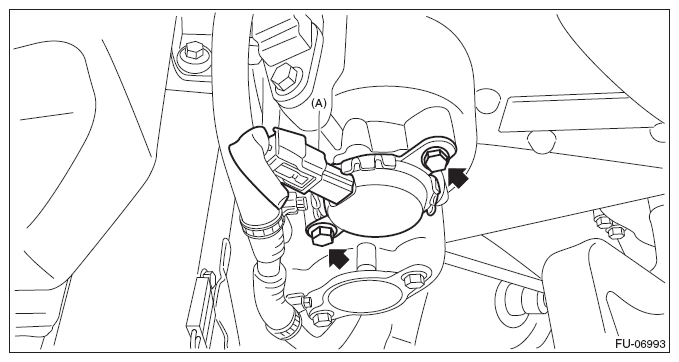

      Fig 2: Identifying Intake Oil Control Solenoid Connector With Bolts (RH Side)
      G08579677Courtesy of SUBARU OF AMERICA, INC.
    • LH side

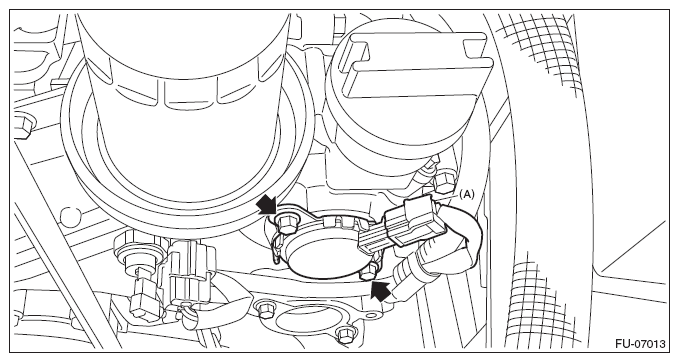

      Fig 3: Identifying Intake Oil Control Solenoid Connector With Bolts (LH Side)
      G08579678Courtesy of SUBARU OF AMERICA, INC.
