Front Hood Lock And Remote Openers

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

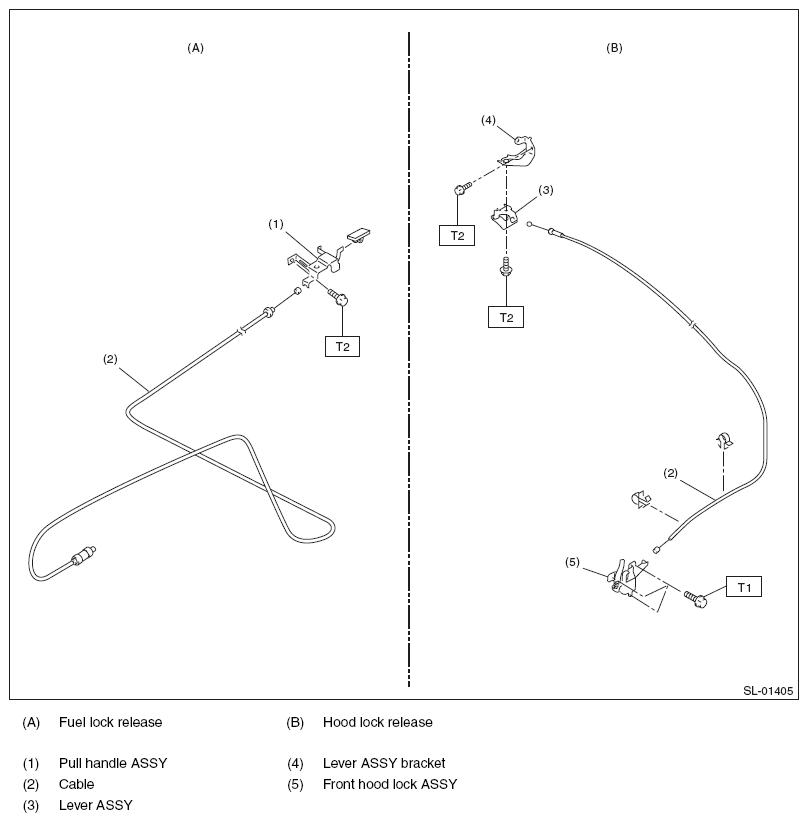

Fig 1: Front Hood Lock And Remote Openers Replacement Components With Torque Specifications
G08566559Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 33 (3.36, 24.2)

T2: 7.5 (0.76, 5.5)
