Steering Column: Disassembly

  1. Remove the steering column cover.
    1. Lower the lever of the steering column.
    2. Release the claws and remove the screws, then detach the steering column lower cover.
      Fig 1: Locating Steering Column Cover Screws
      G08583686Courtesy of SUBARU OF AMERICA, INC.
    3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.
      Fig 2: Identifying Steering Column Upper Cover Clips
      G08583687Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the combination switch.

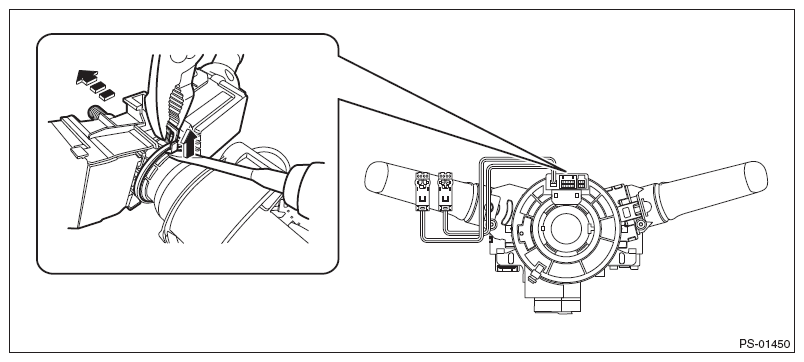

    Fig 3: Removing Combination Switch
    G08583697Courtesy of SUBARU OF AMERICA, INC.
