Exploded Views

General Description

COMPONENT

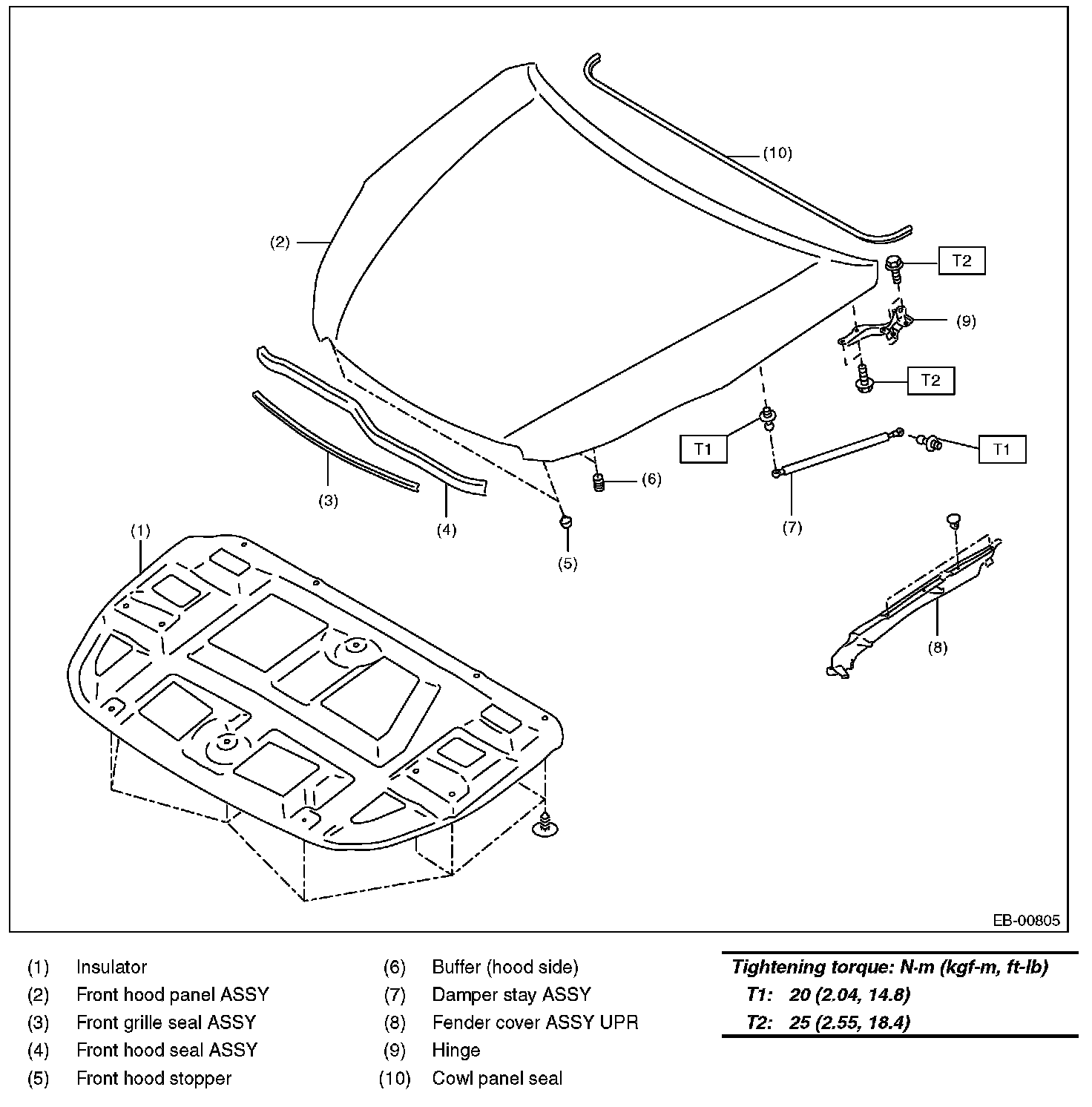

1. FRONT HOOD







2. FRONT FENDER

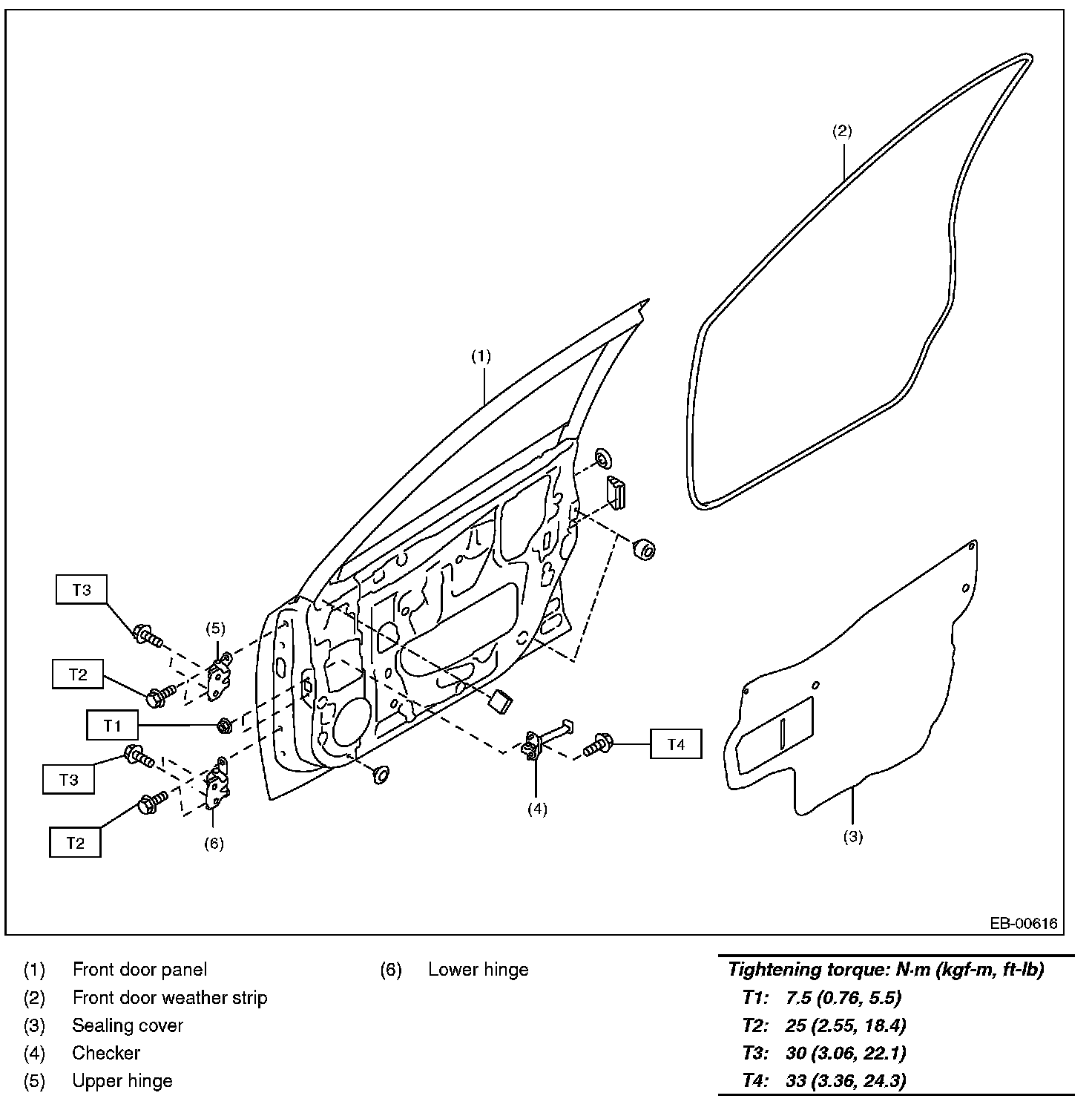

3. FRONT DOOR







4. REAR DOOR

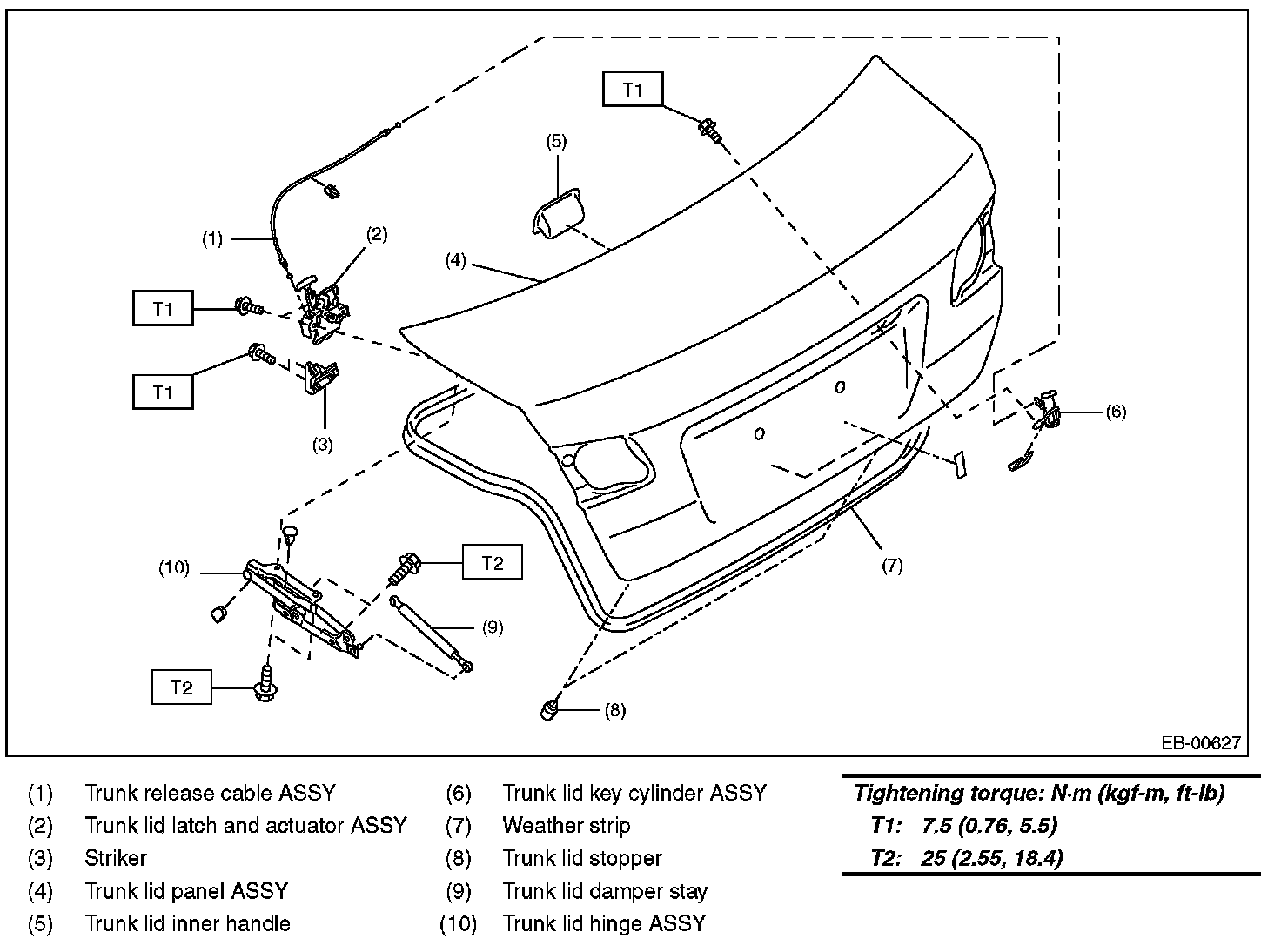

5. TRUNK LID PANEL

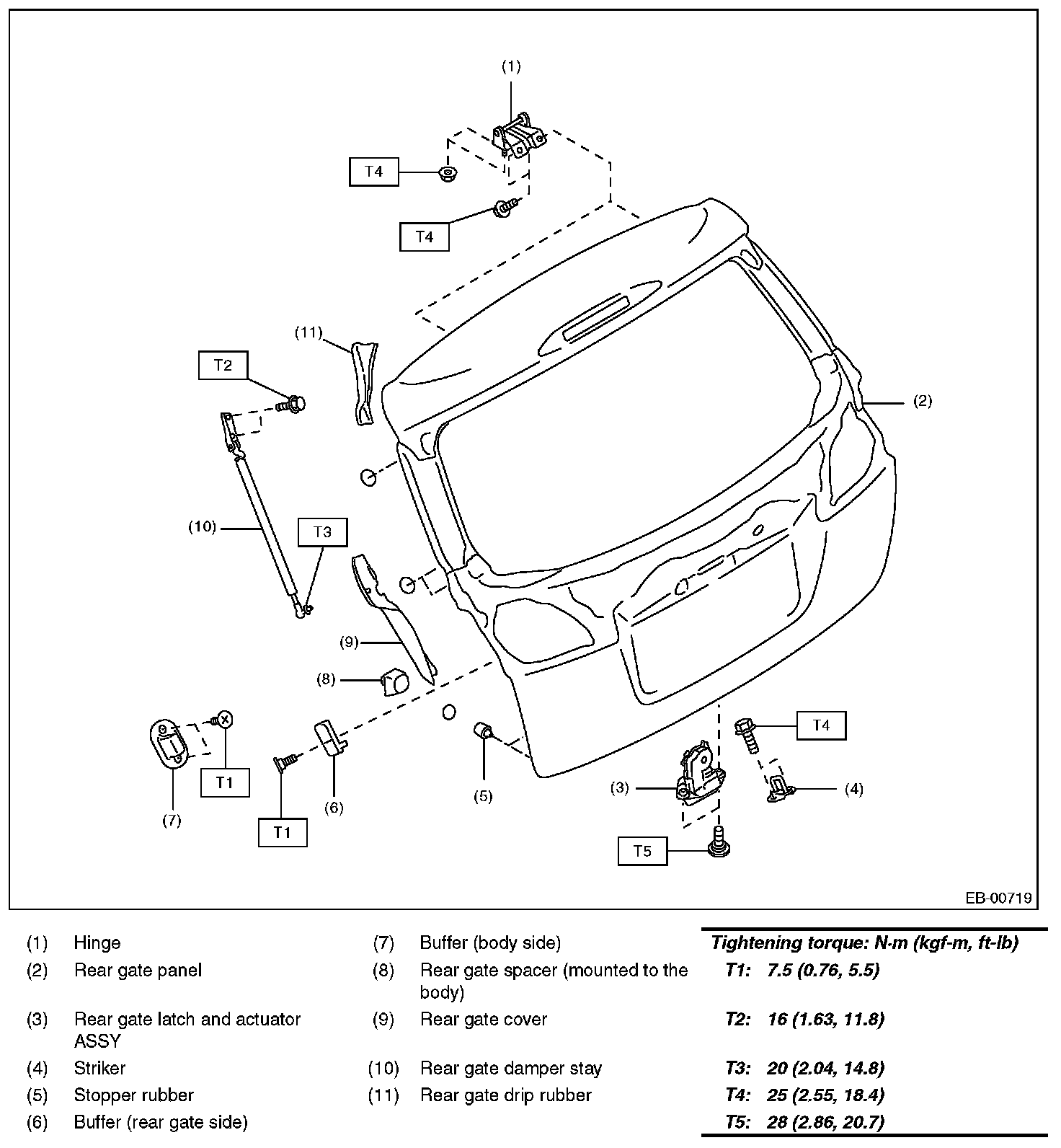

6. REAR GATE
