Remote Engine Start System

REMOTE ENGINE START SYSTEM

WIRING DIAGRAM

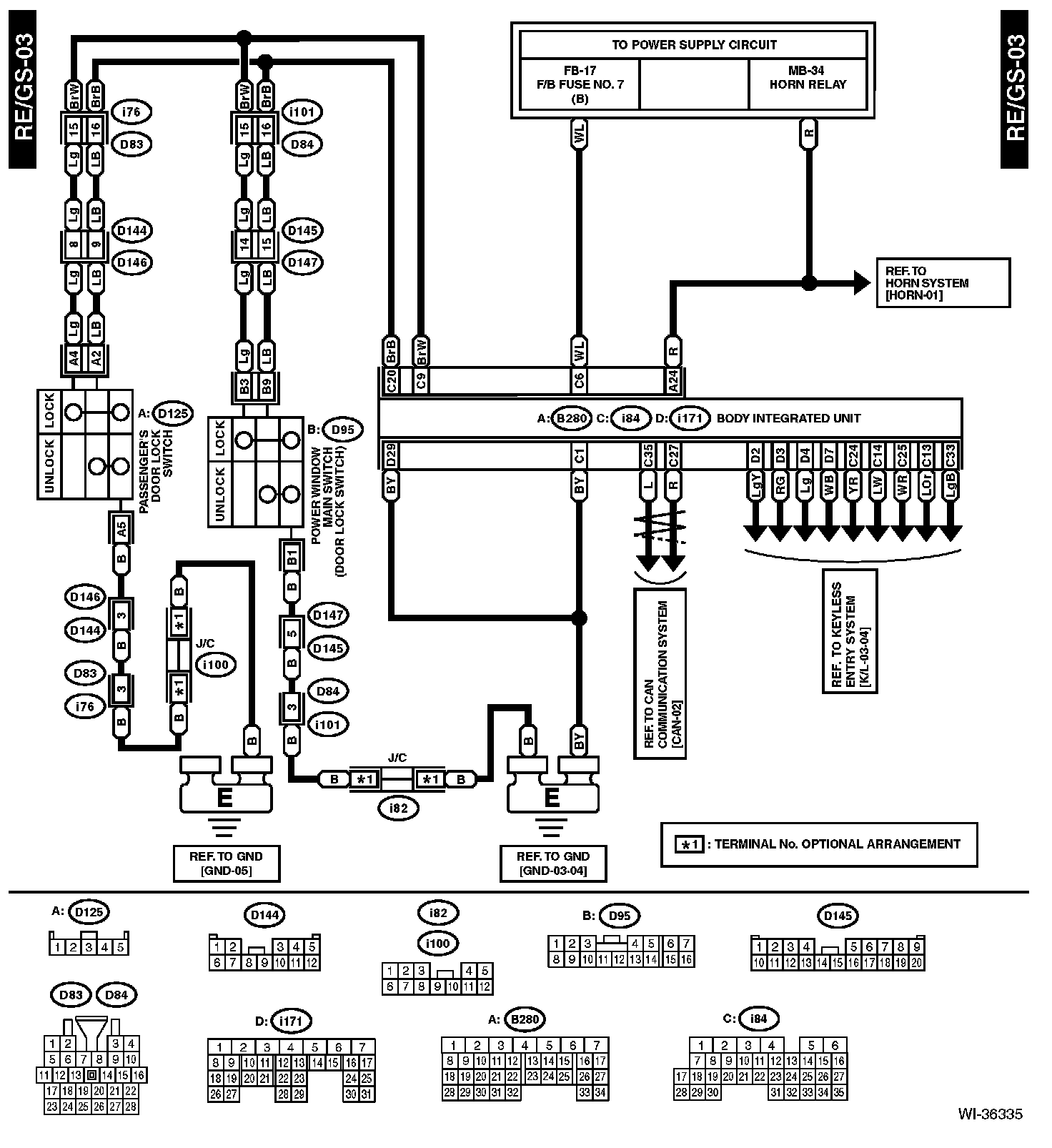

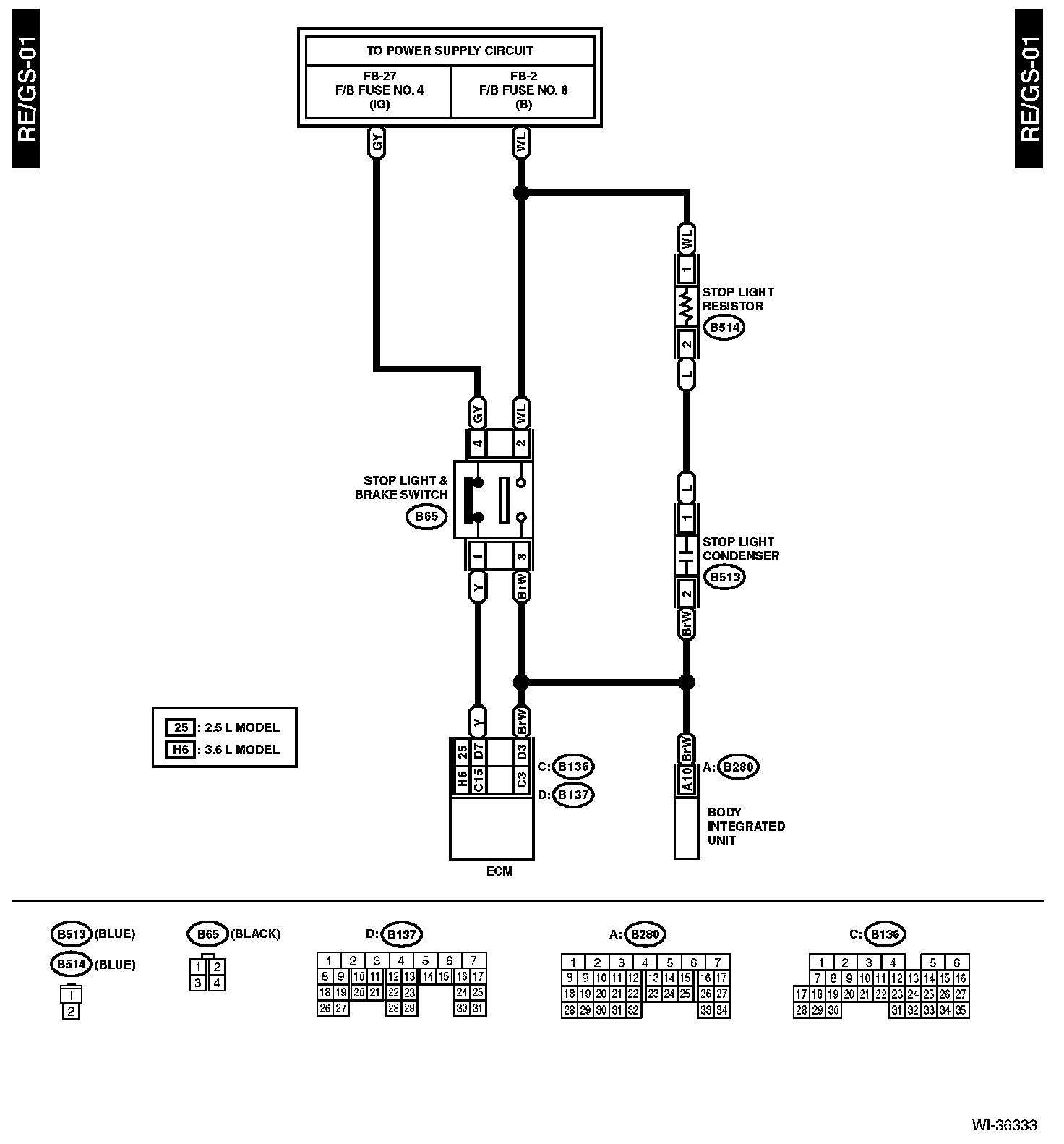

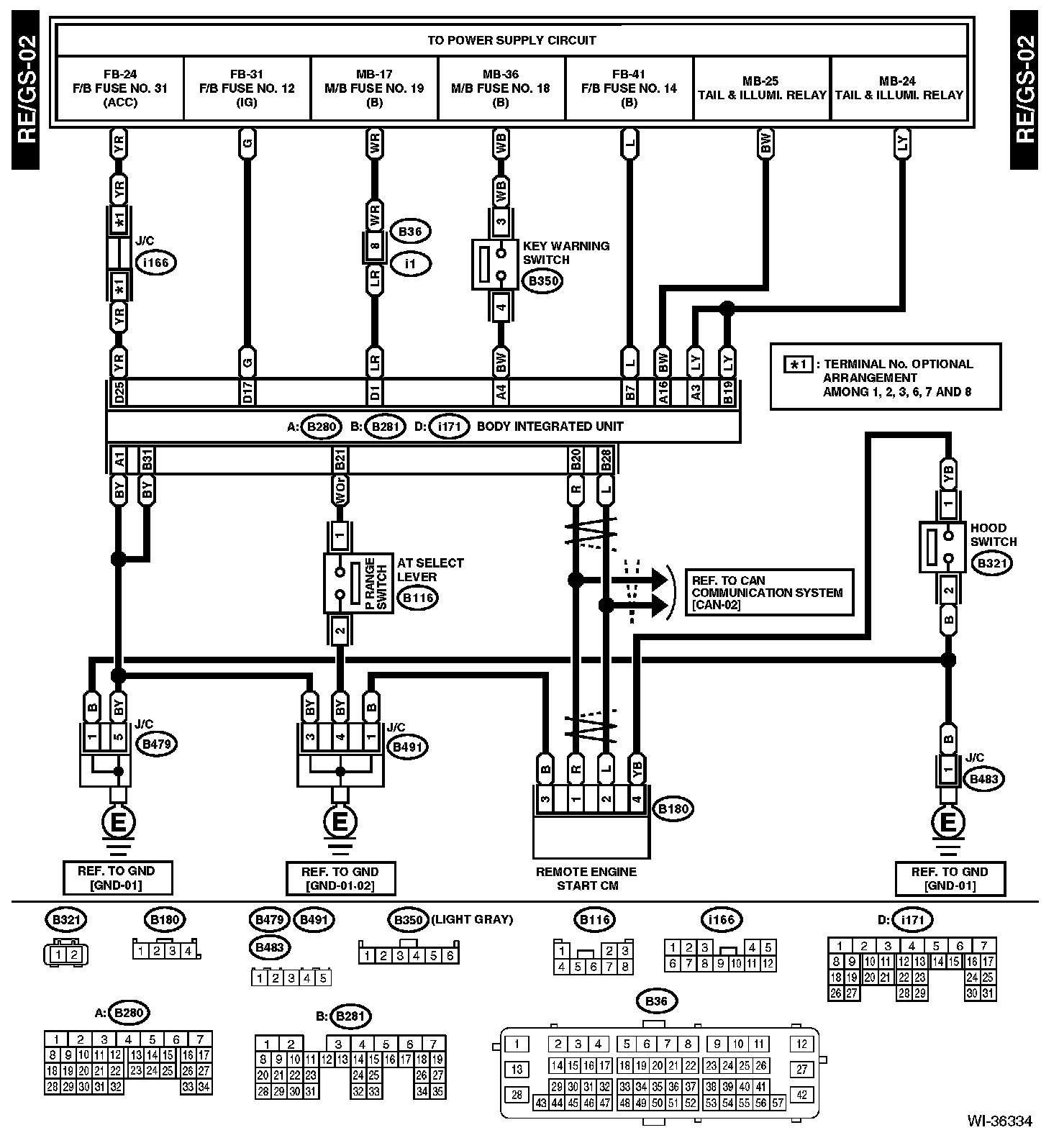

WITHOUT PUSH BUTTON START

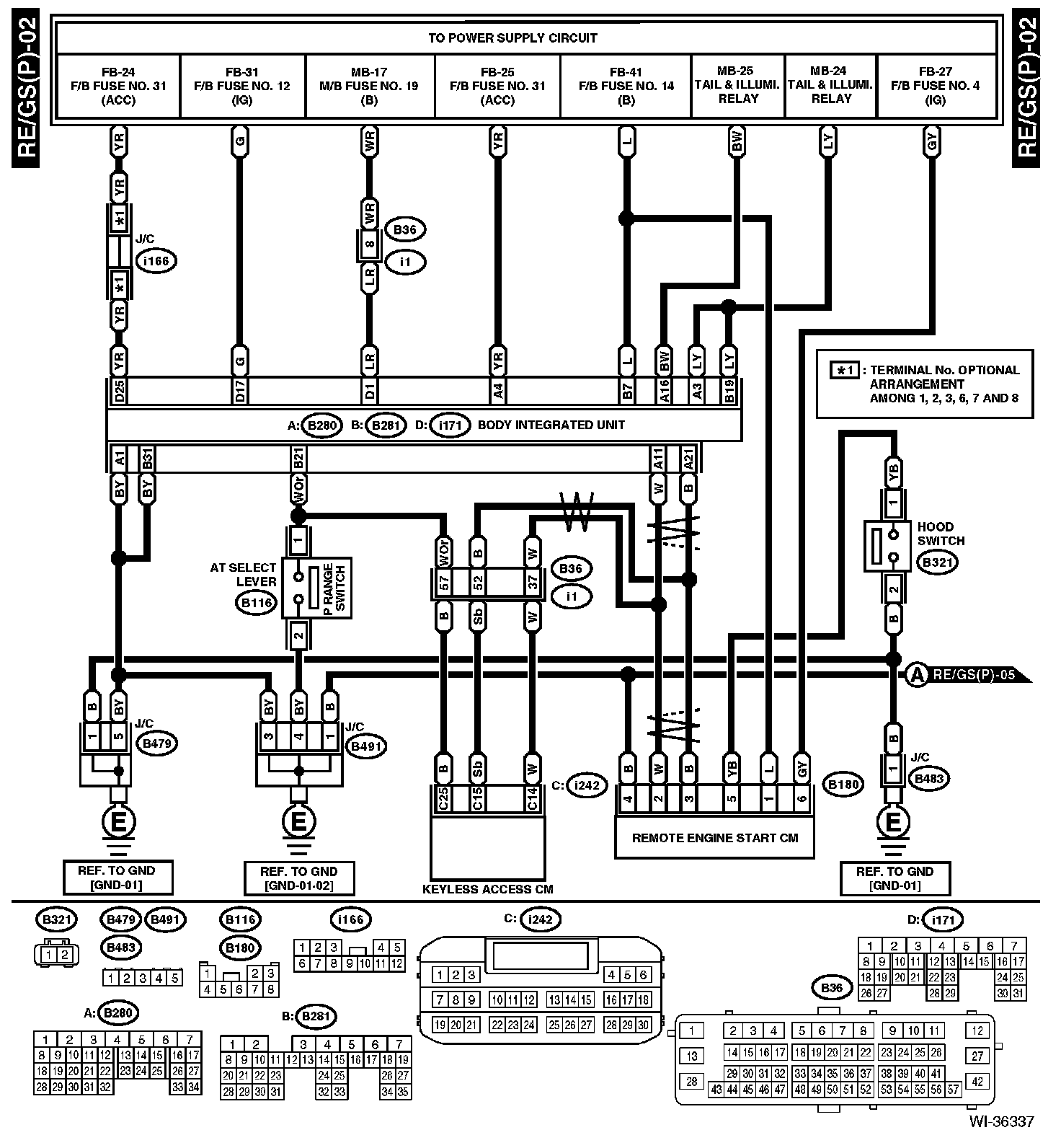

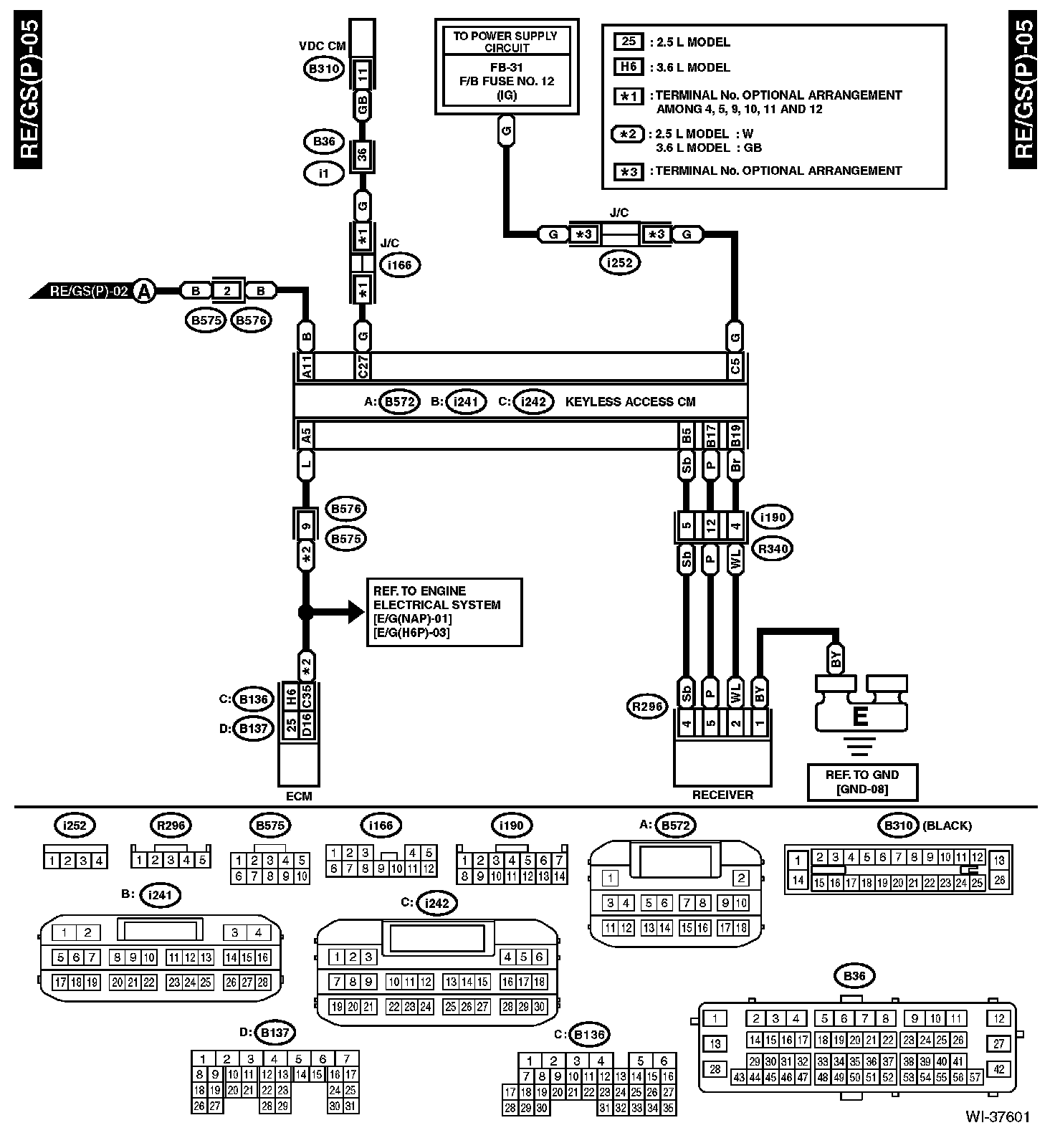

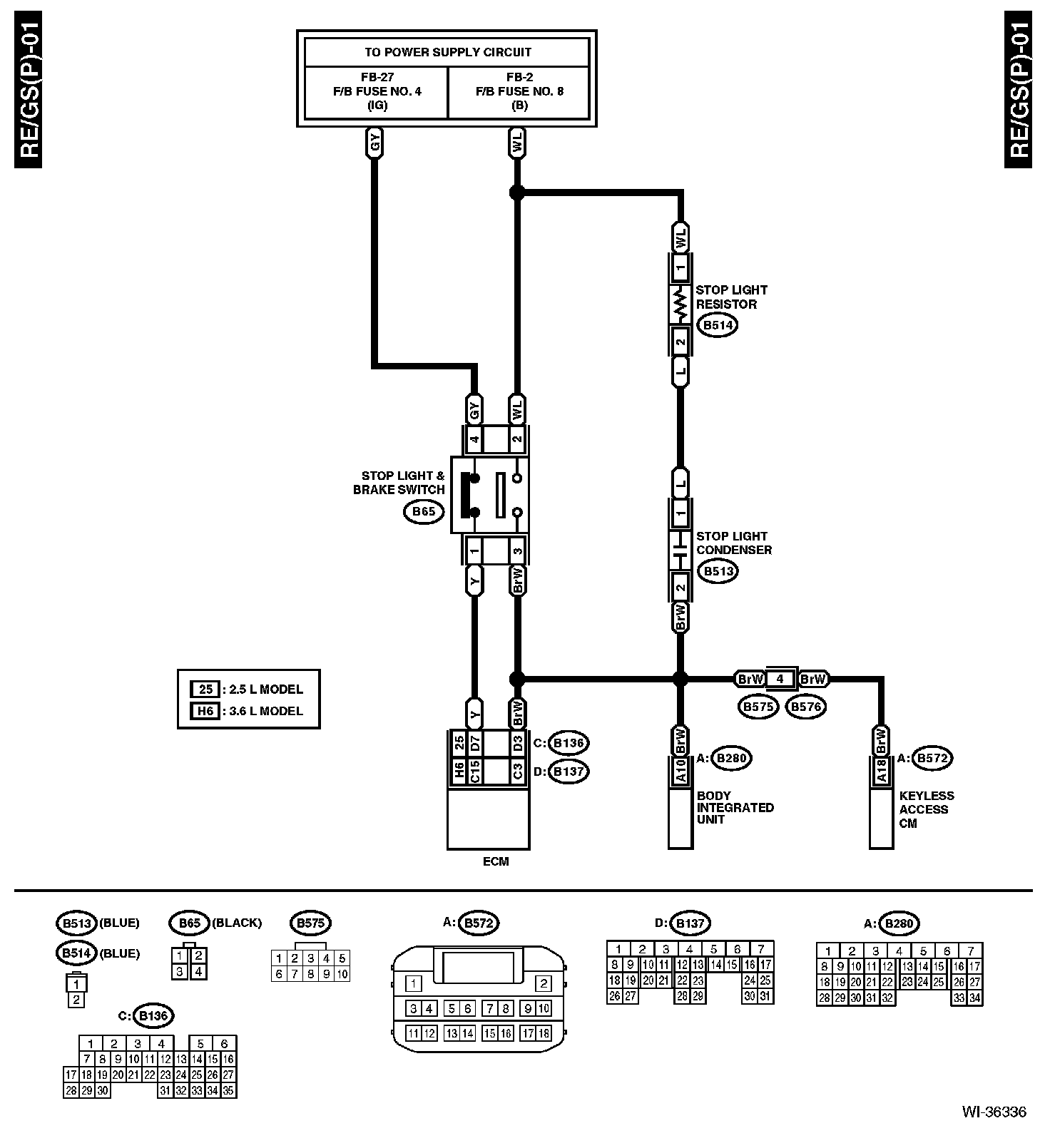

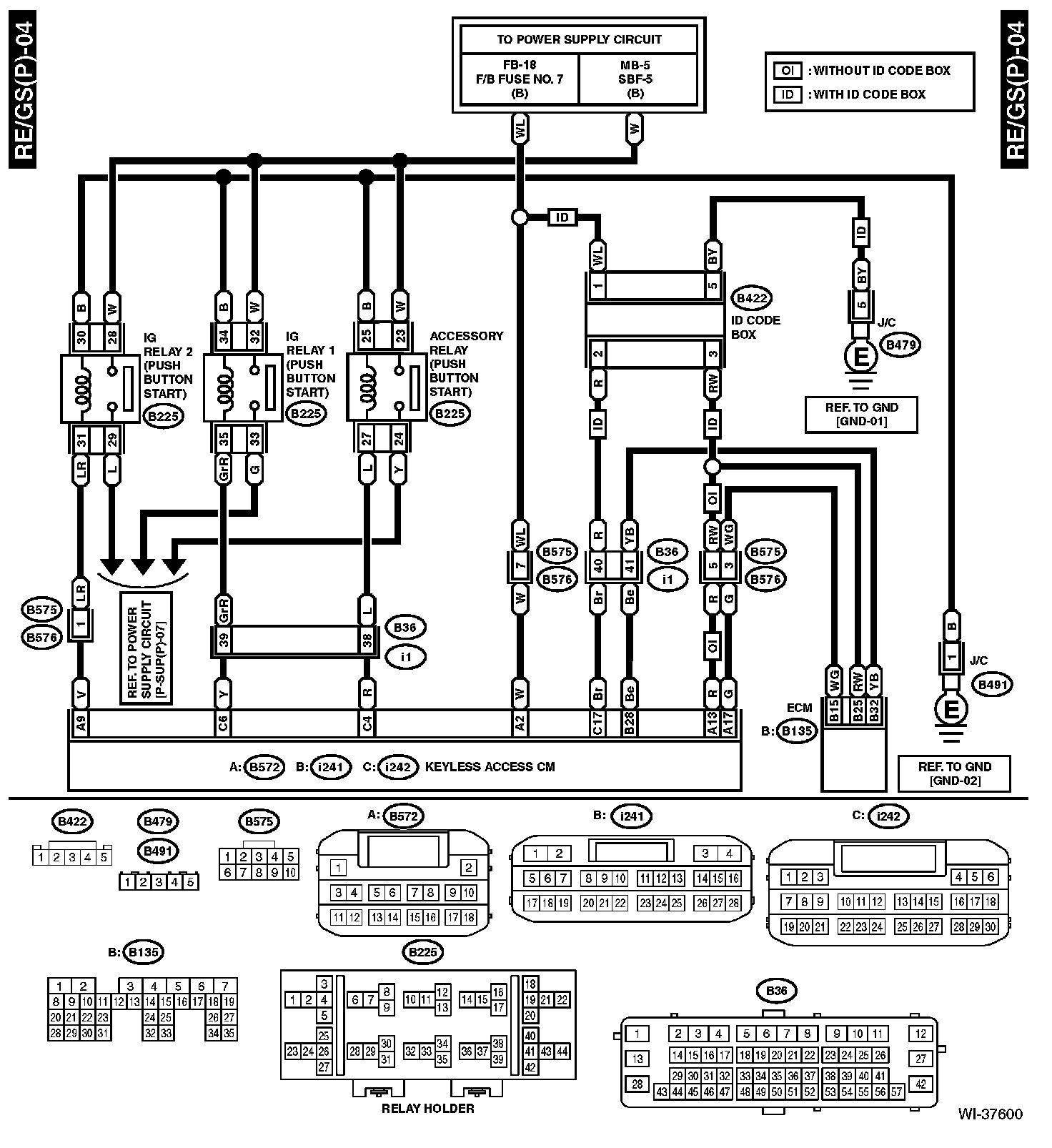

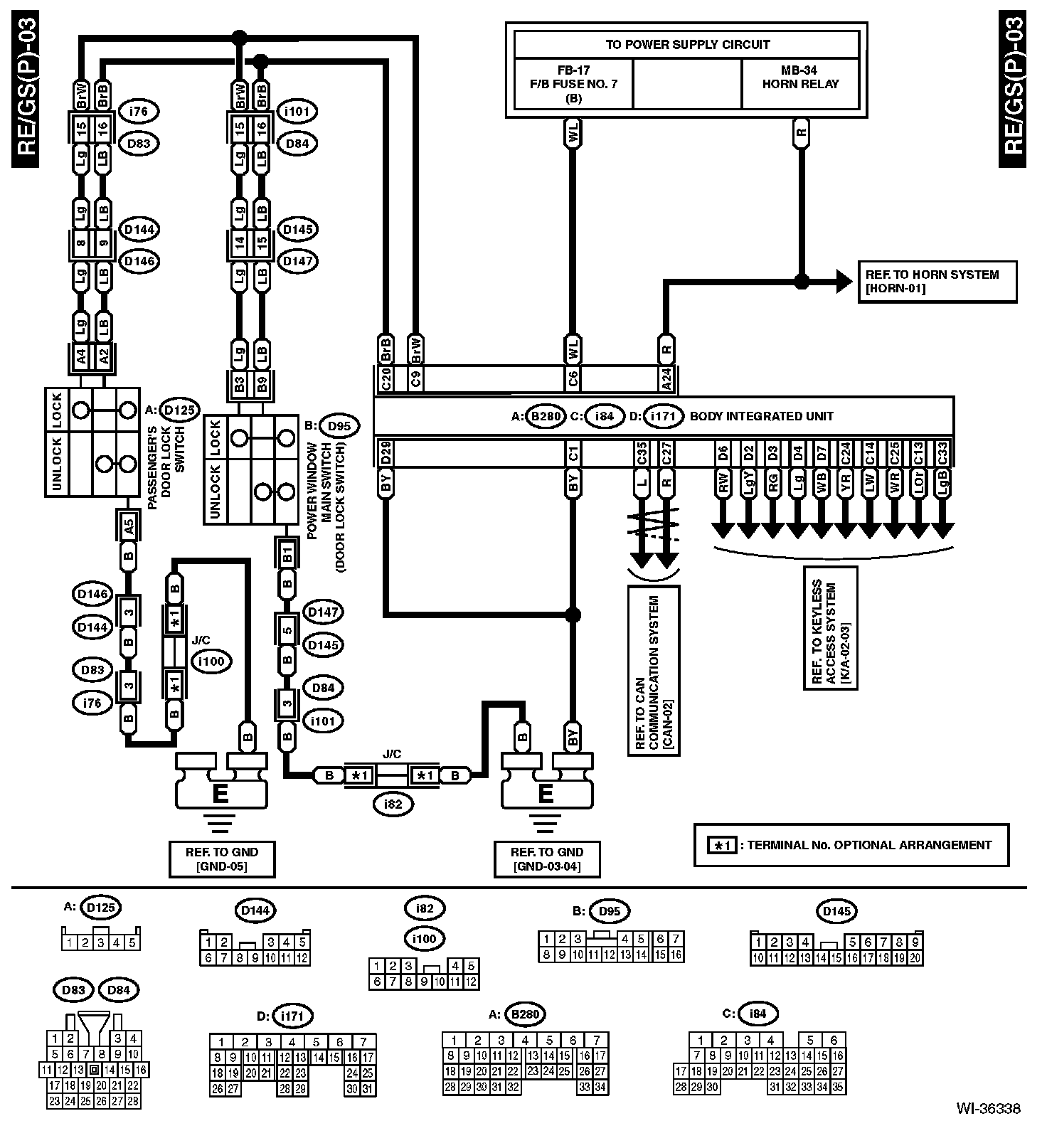

WITH PUSH BUTTON START


















Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
