Outback F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R9-R419 & AB17-AB61
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

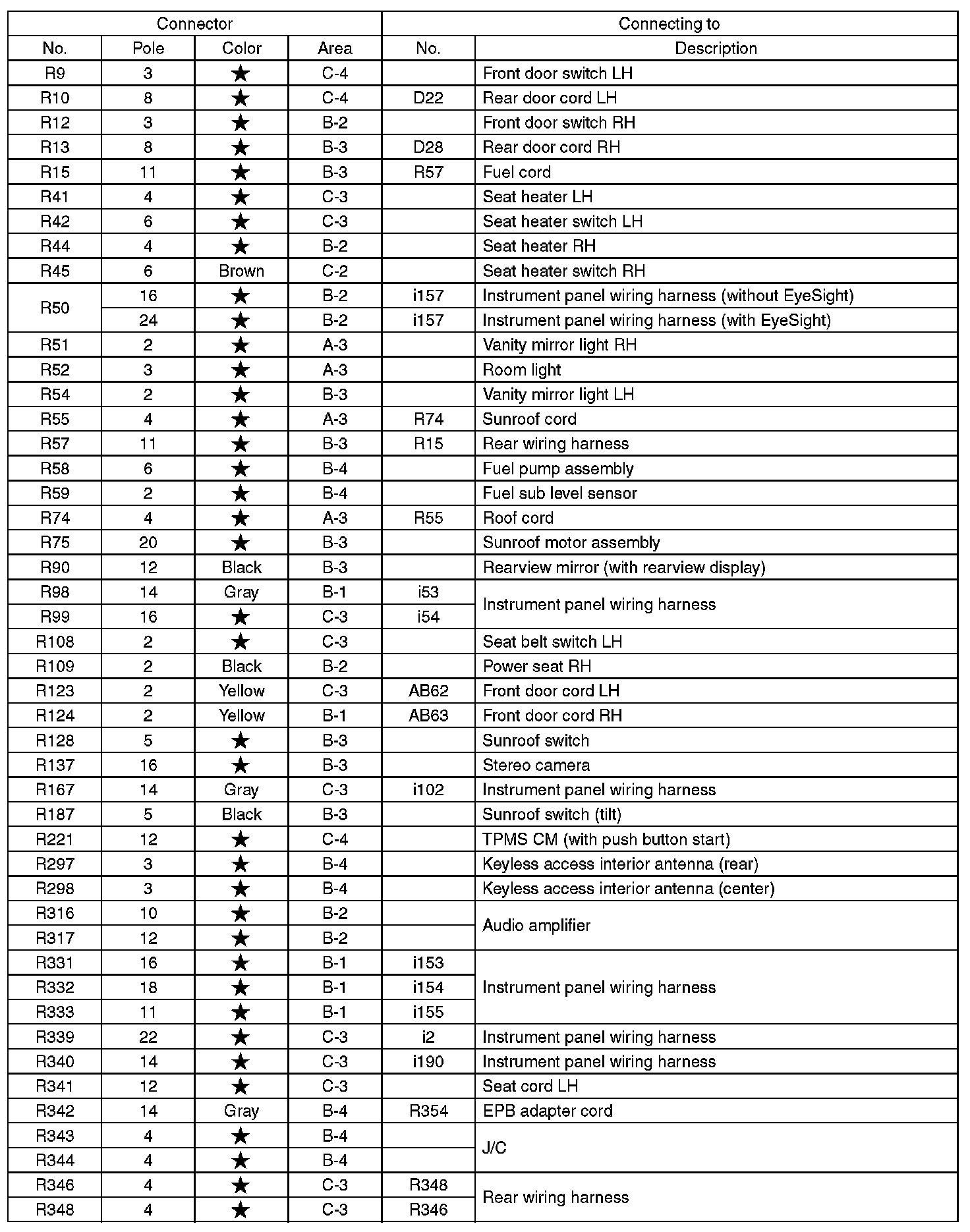

R9-R419 & AB17-AB61

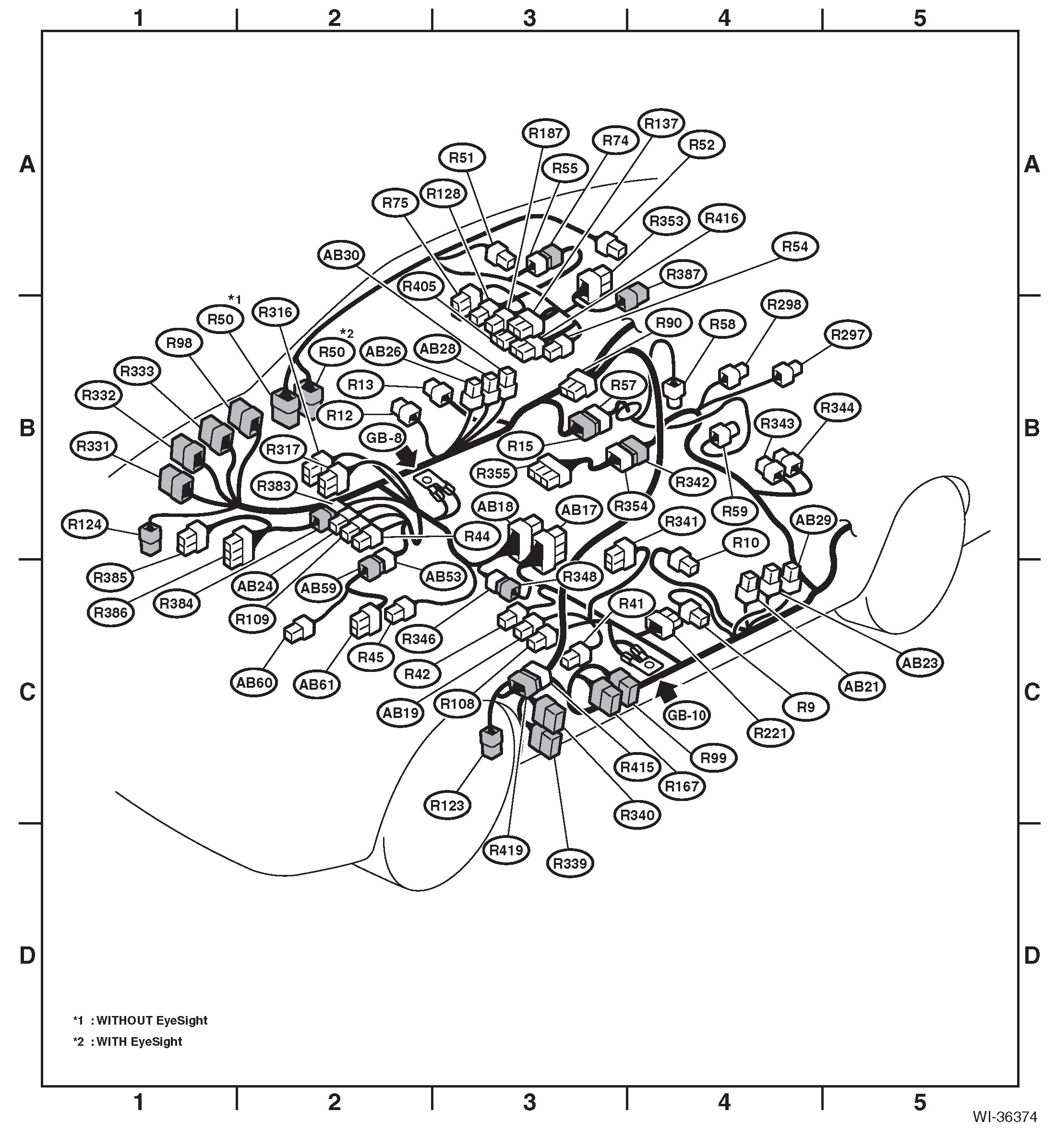

REAR WIRING HARNESS
OUTBACK MODEL
