Timing Cover

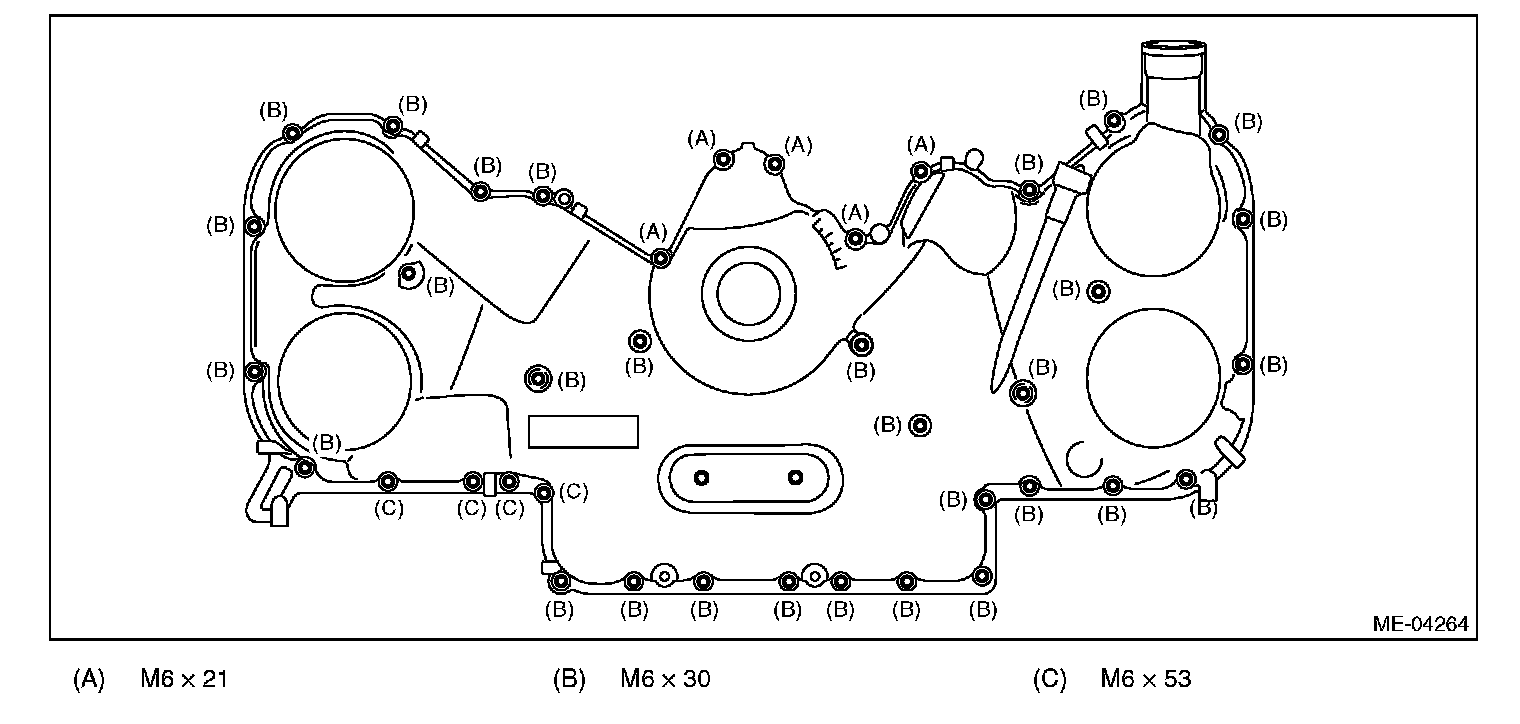

Timing Chain Cover Bolts

First pass Tighten temporarily

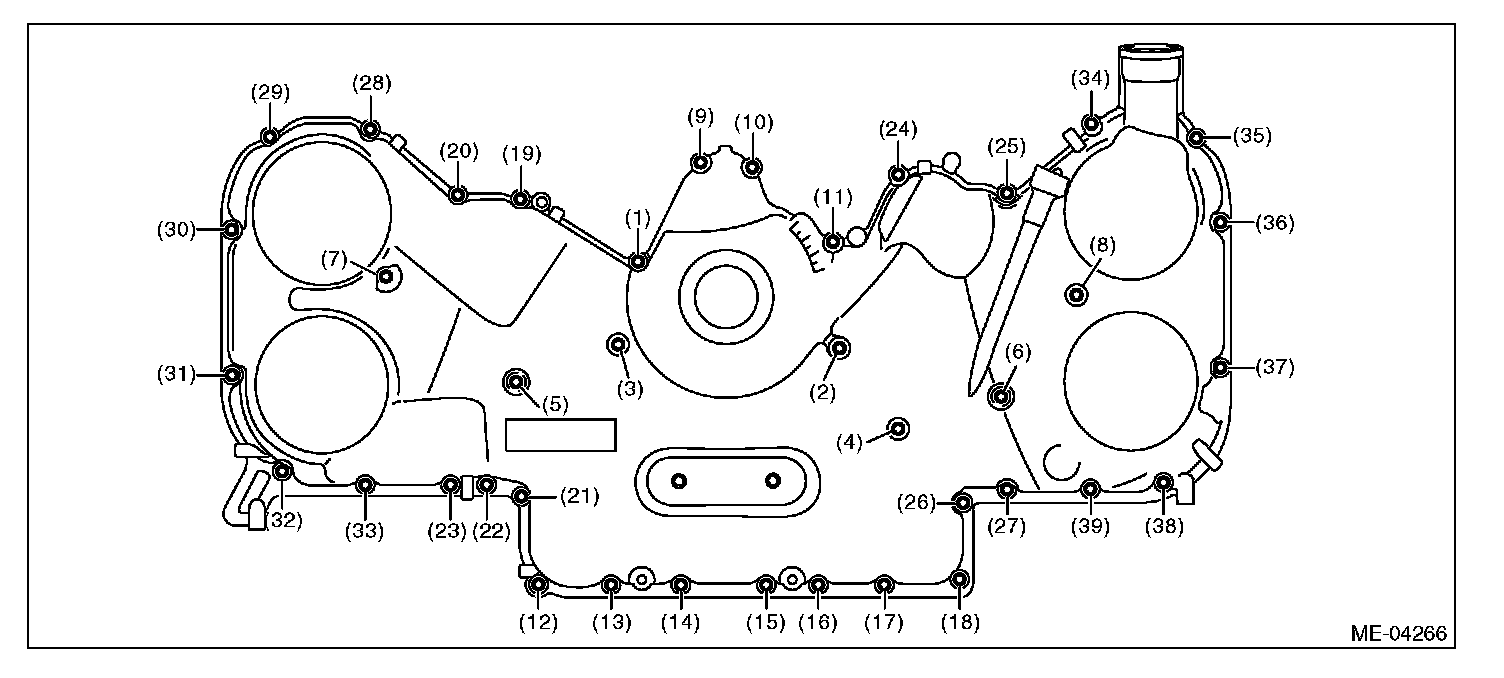

Second pass 10 Nm (1.0 kgf-m, 7.4 ft-lb) in numerical order
