Exploded Views
COMPONENT
1.

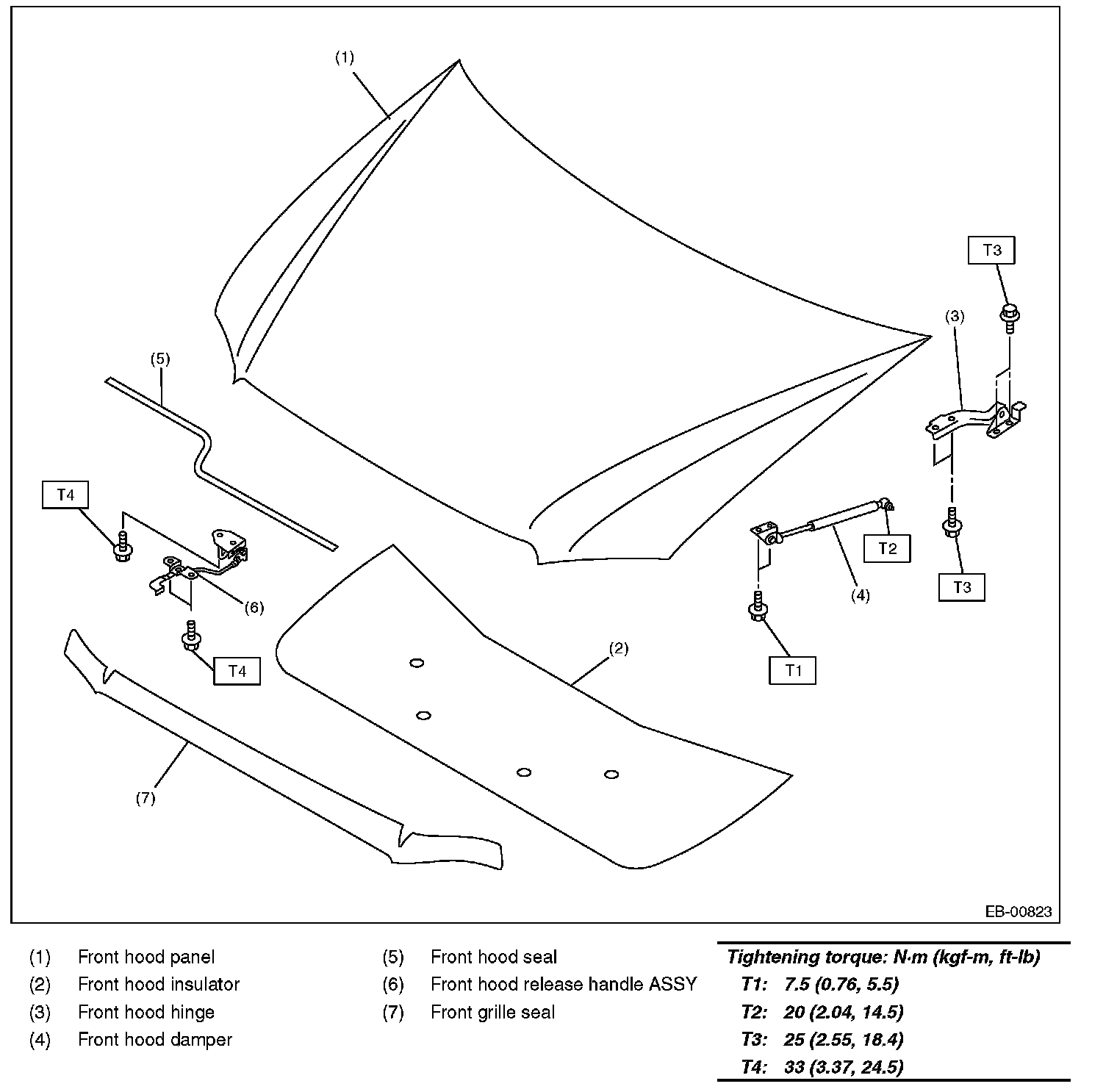

FRONT
HOOD
2.
FRONT
FENDER
PANEL
3.

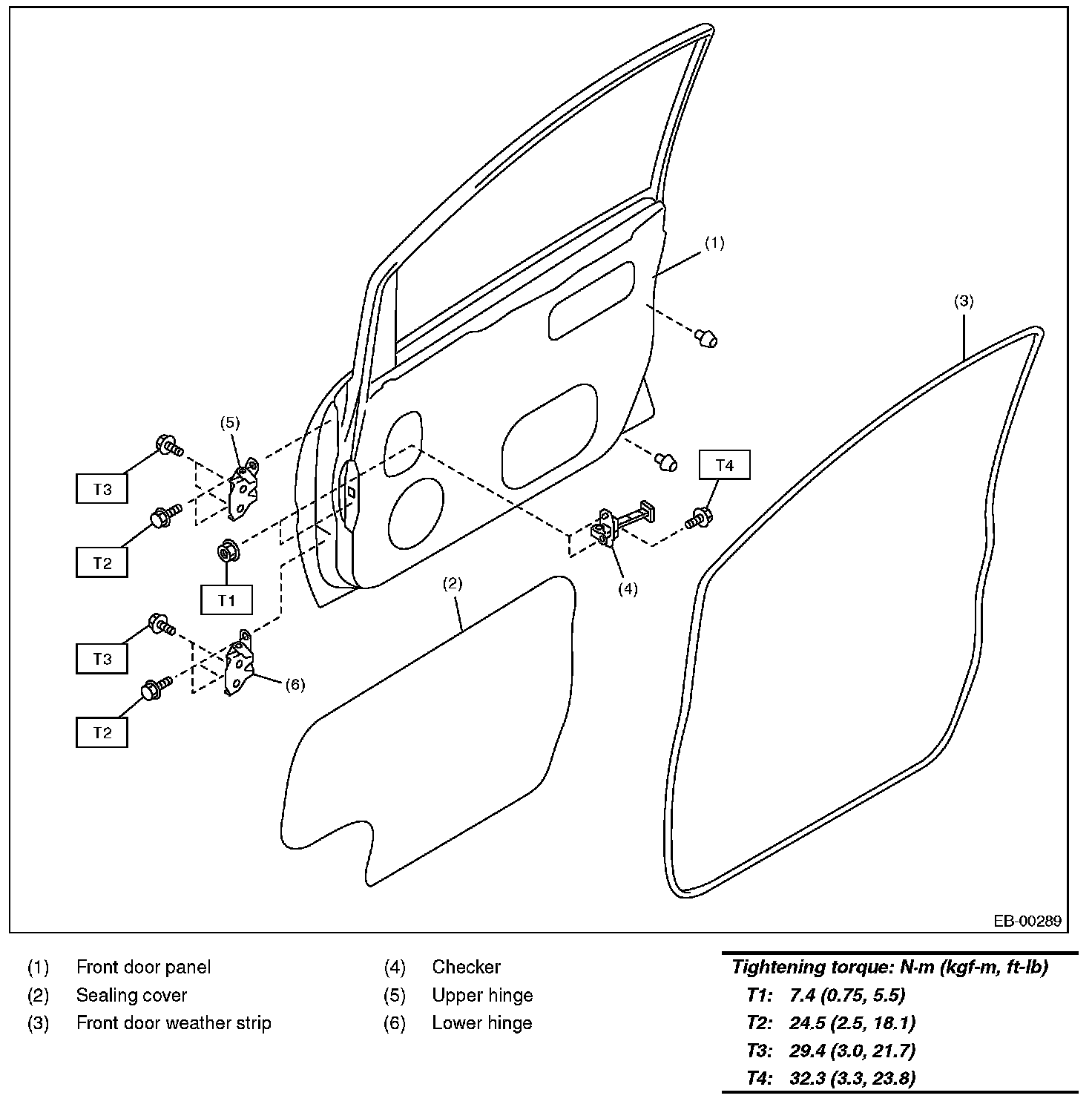

FRONT DOOR PANEL
4.

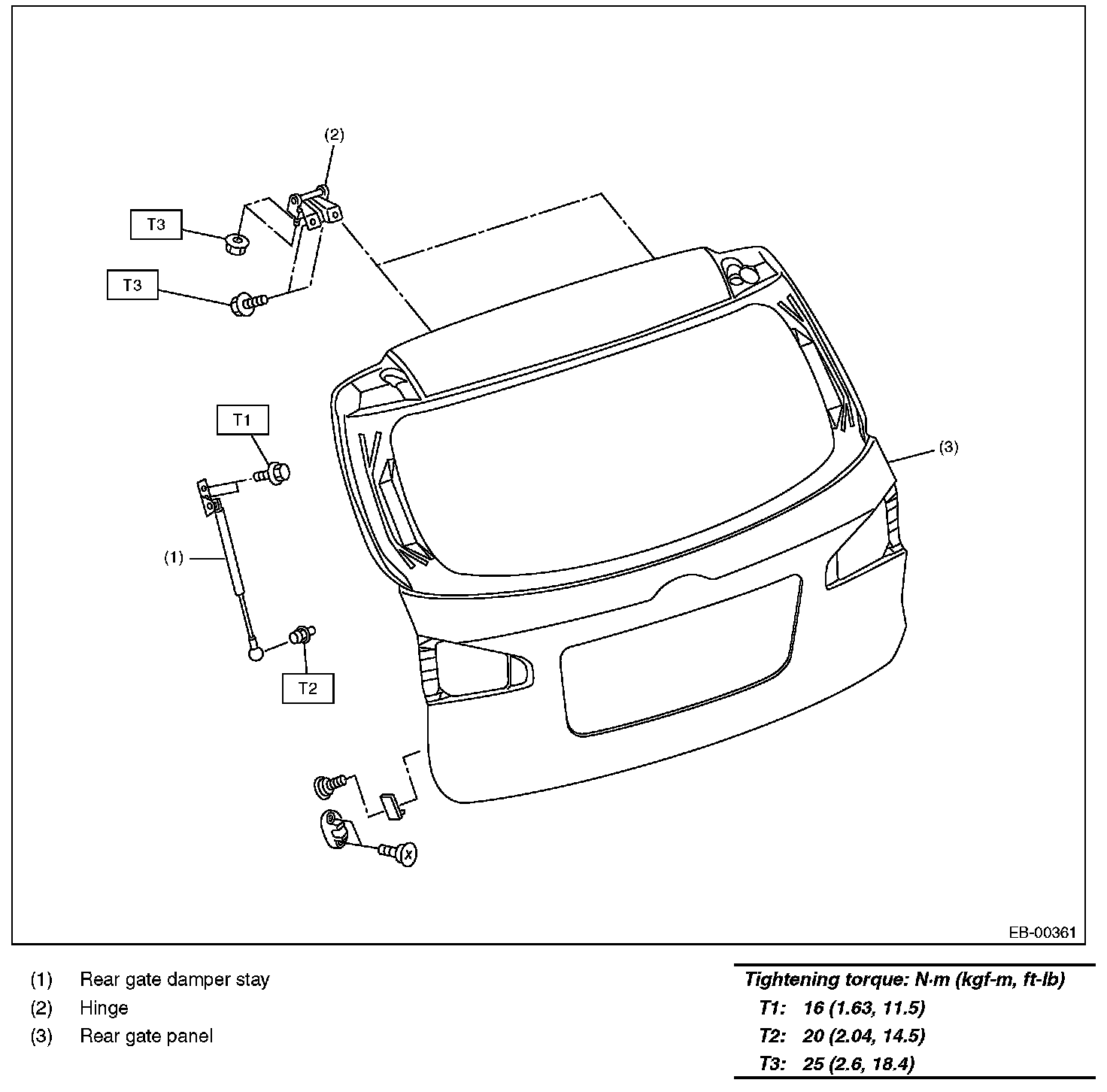

REAR GATE PANEL
5.

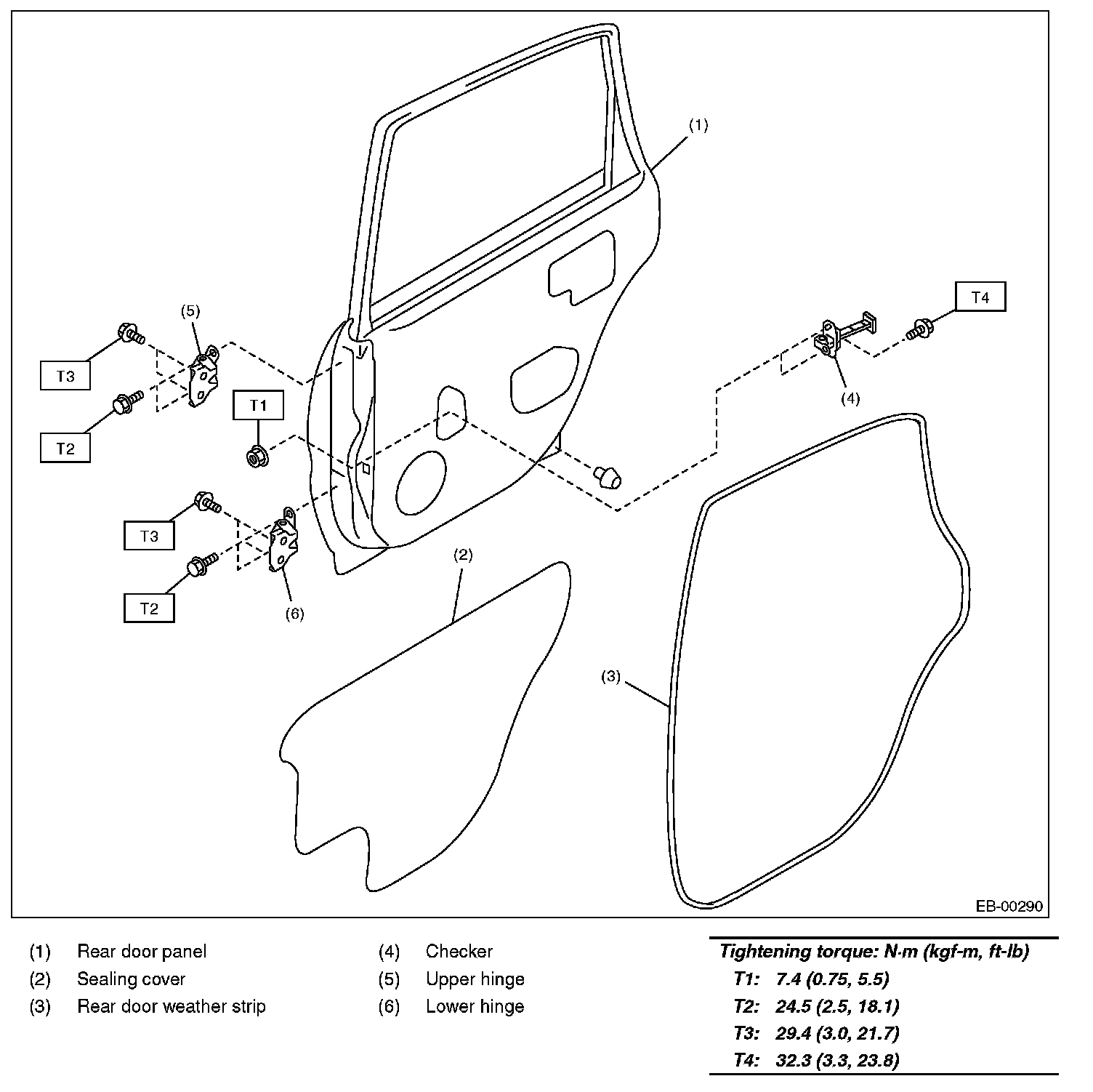

REAR DOOR PANEL
