Third-Row Seats

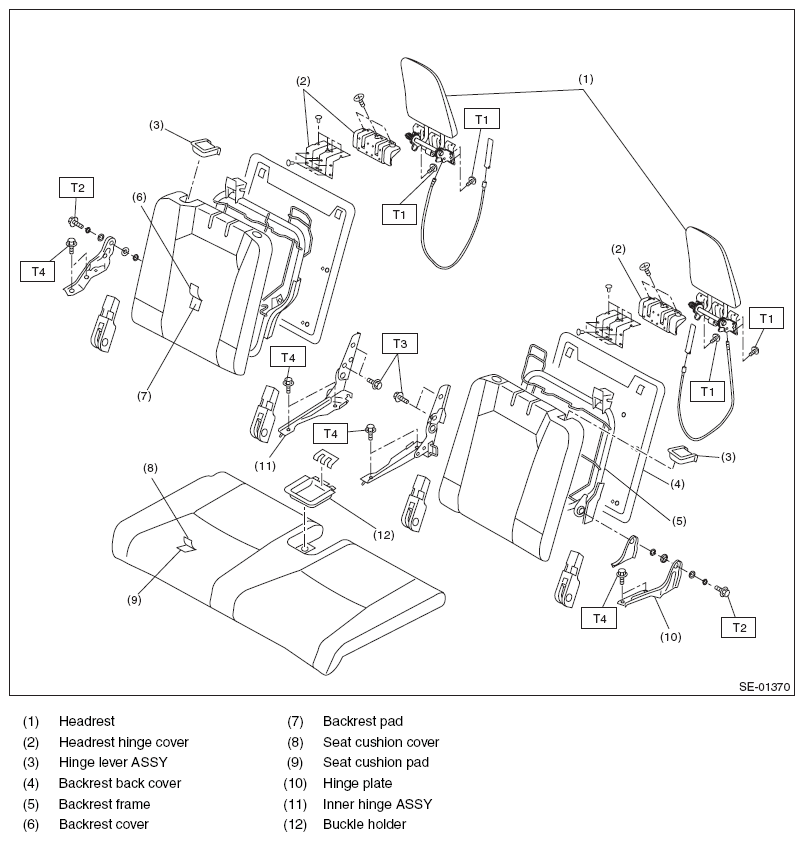

Fig 1: Third-Row Seats Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.8 (0.59, 4.28)

T2: 10 (1.02, 7.38)

T3: 52 (5.30, 38.4)

T4: 53 (5.40 39.0)
