DTC P050A Cold Start Idle Air Control System Performance: Wiring Diagram

Engine electrical system Refer to Engine Electrical System Wiring Diagram.

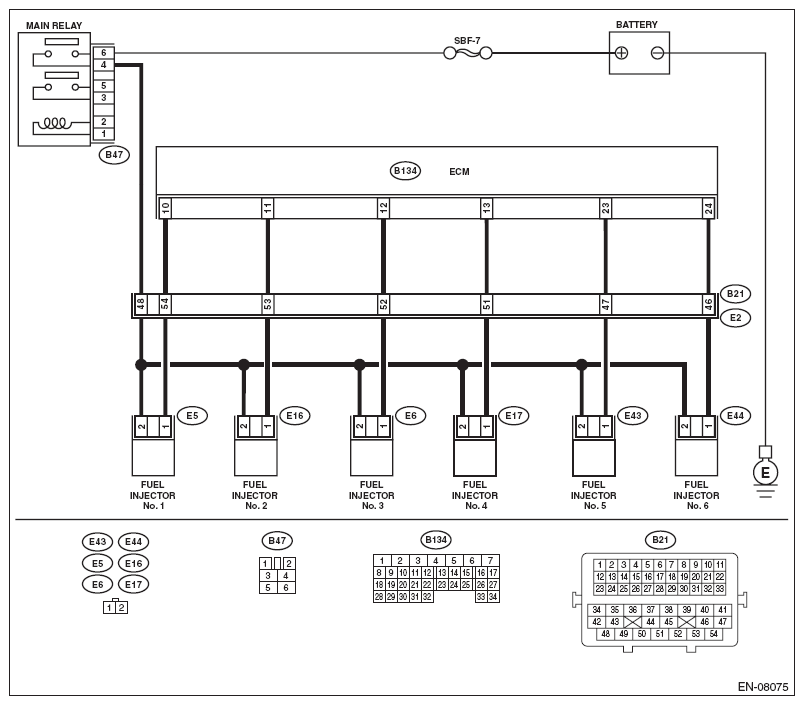

Fig 1: Fuel Injector - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

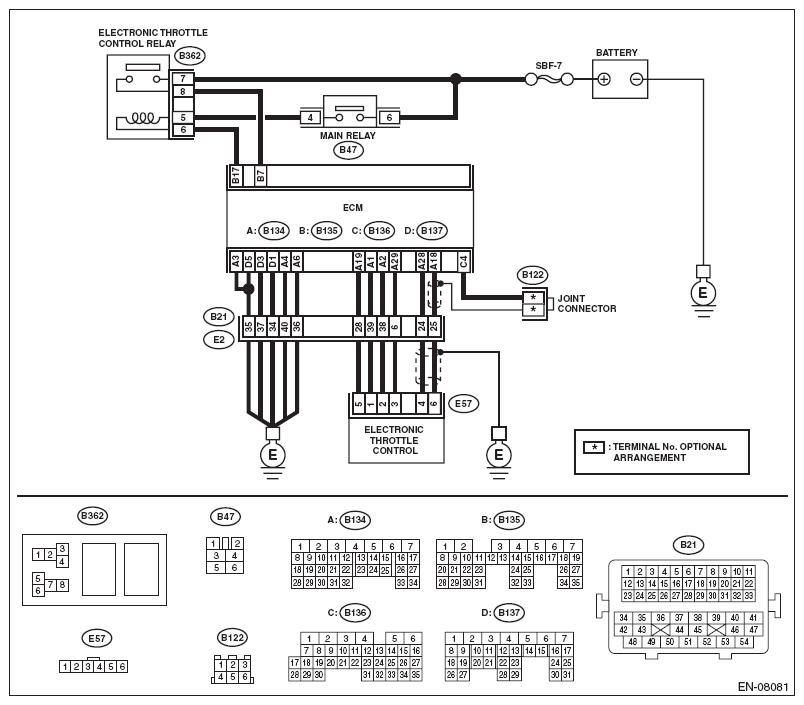

Fig 2: Electronic Throttle Control Relay - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
