Engine Control System (Diagnostics) - System & Circuit Checks
>>
ECM Power Supply System
>>
Circuit figure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit figure

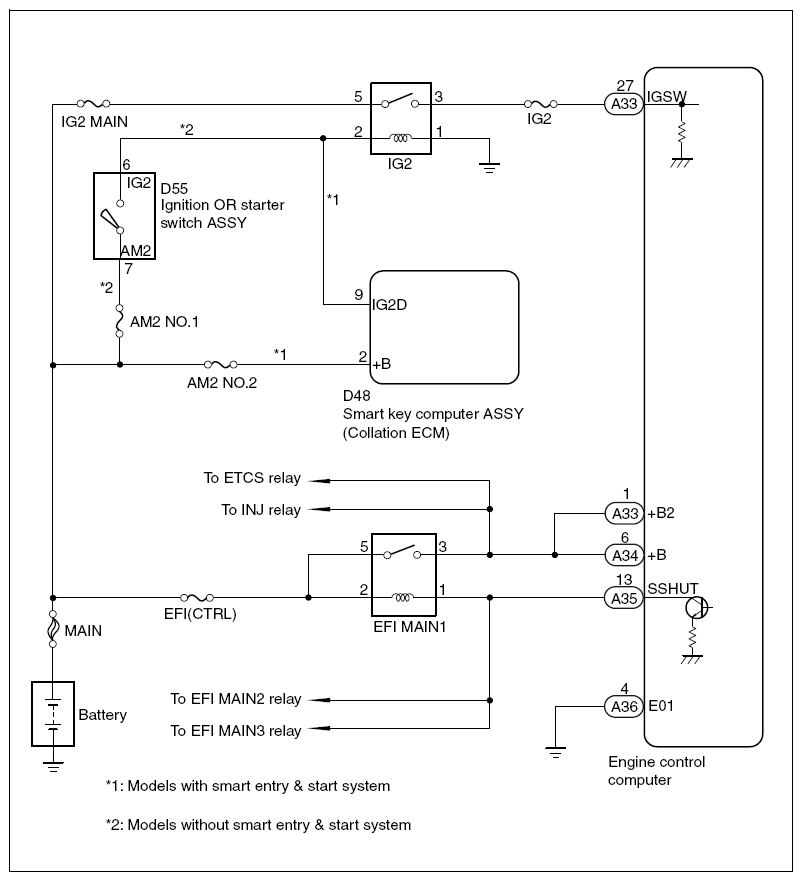

Fig 1: ECM Power Supply System - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
