Exploded View

Fig 1: Exploded View Of Exhaust Pipe assembly With Torque Specifications (1 Of 2)
G08556533Courtesy of SUBARU OF AMERICA, INC.

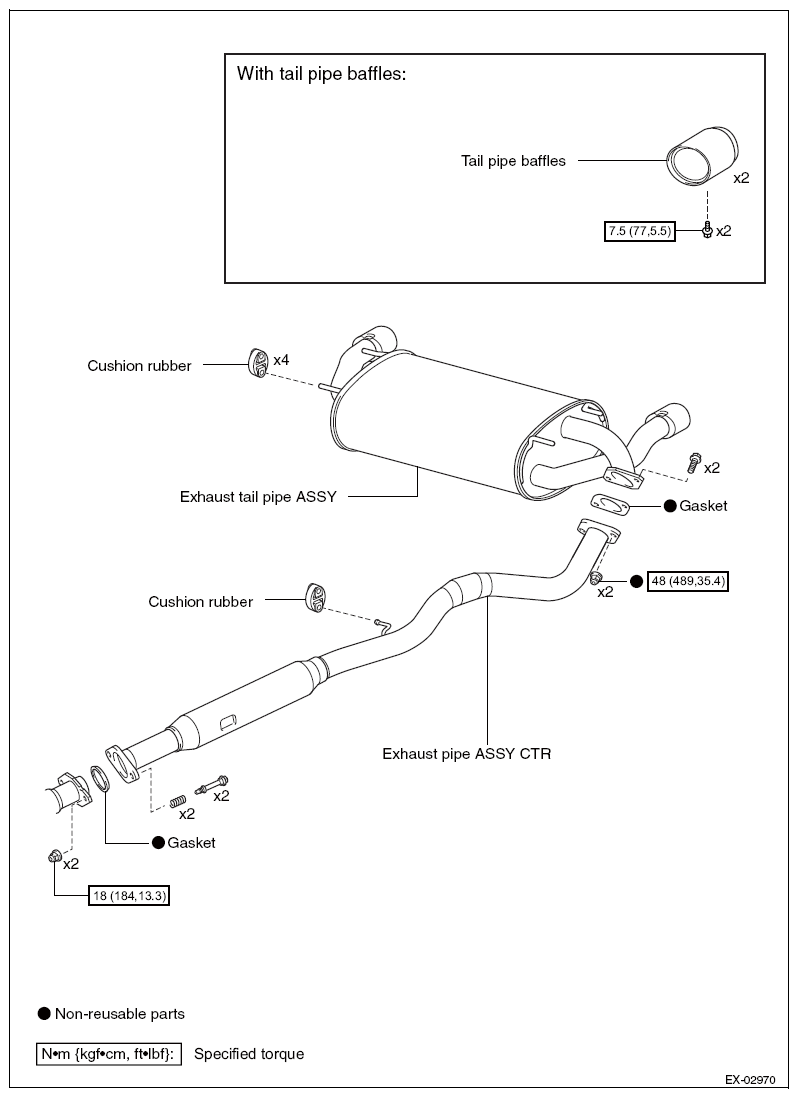

Fig 2: Exploded View Of Exhaust Pipe assembly With Torque Specifications (2 Of 2)
G08556534Courtesy of SUBARU OF AMERICA, INC.
