Oil Control Solenoid: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct (rear). (RH side only) < Ref. to REMOVAL , Air Intake Duct. >
  3. Remove the reservoir tank. (LH side only) < Ref. to REMOVAL , Reservoir Tank. >
  4. Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
    • RH side
      Fig 1: Locating Oil Control Solenoid Connector Bolts (RH)
      G08579677Courtesy of SUBARU OF AMERICA, INC.
    • LH side

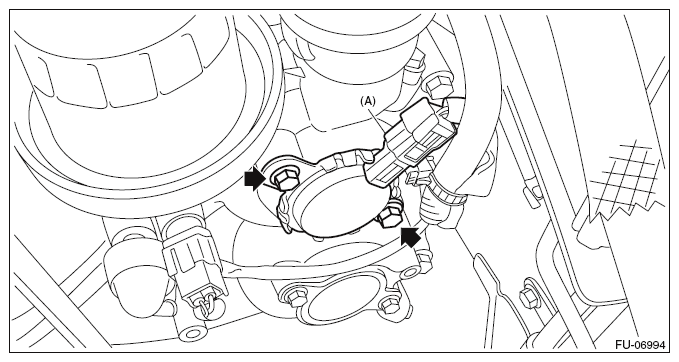

      Fig 2: Locating Oil Control Solenoid Connector Bolts (LH)
      G09475538Courtesy of SUBARU OF AMERICA, INC.
