Control Module I/O Signal: Wiring Diagram

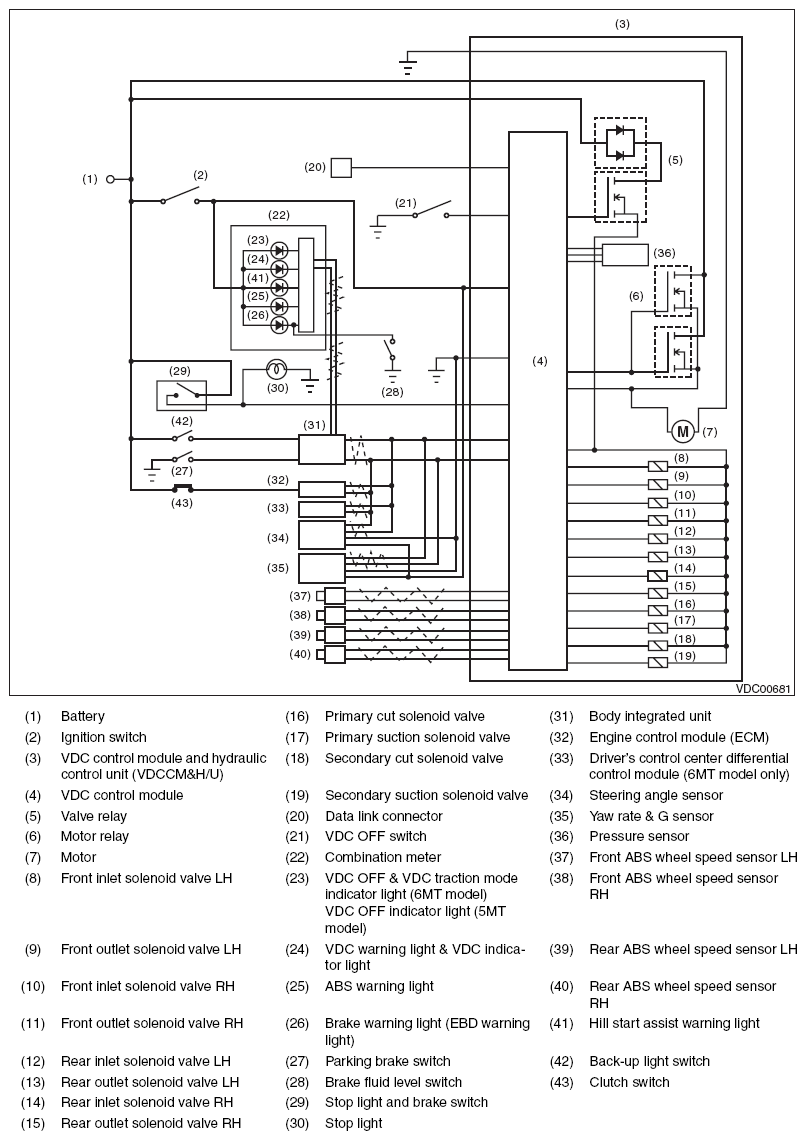

Fig 1: VDC Control Module Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
