Stop Light Switch: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
Remove the cover assembly - instrument panel LWR driver.
CAUTION: When removing the cover assembly - instrument panel LWR driver, be sure to pull it toward you. If attempting to remove by turning it upward, the claws may be damaged.

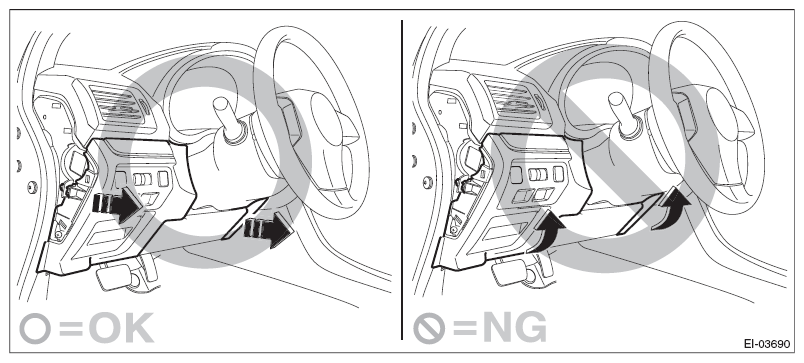

Fig 1: Caution For Removing Cover Assembly Of Instrument Panel Driver
Courtesy of SUBARU OF AMERICA, INC.
1. Remove the clips, and remove the cover - instrument panel side LH.

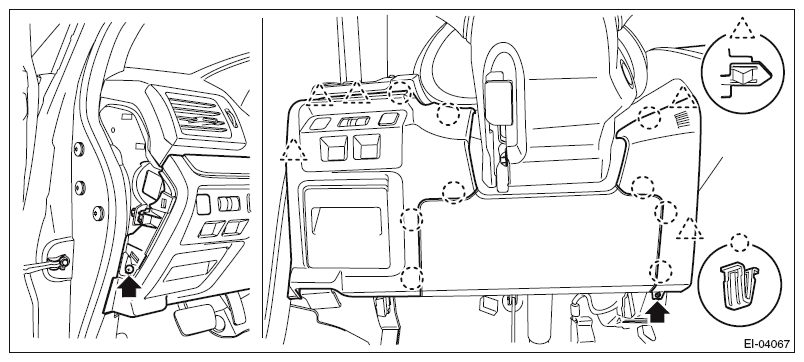

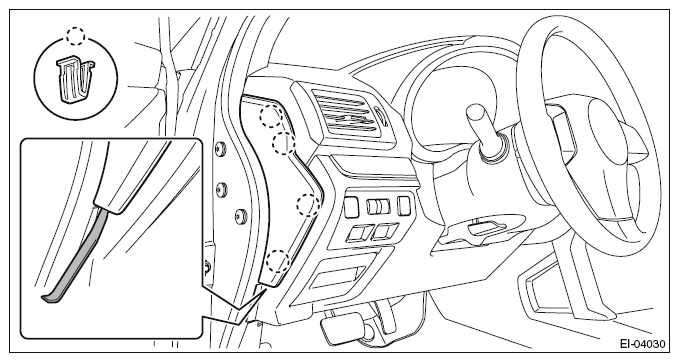

  Fig 2: Removing Cover - Instrument Panel Side LH
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: Using a plastic remover, open the cover - instrument panel side LH.
2. Remove the screws and release the clips and claws.
3. Disconnect the harness connectors, and remove the cover assembly - instrument panel LWR driver INN and OUT.

  Fig 3: Locating Screw Of Cover Assembly - Instrument Panel LWR Driver
  Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts to remove the knee airbag module and disconnect the harness connector. < Ref. to DRIVER'S AIRBAG MODULE, KNEE AIRBAG MODULE, CURTAIN AIRBAG MODULE AND PRETENSIONER , PROCEDURE, Airbag Connector. >

Fig 4: Locating Knee Airbag Module Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the switch - stop light.
1. Disconnect the switch - stop light connector.
2. Remove the switch - stop light by turning it counterclockwise.

  Fig 5: Removing Switch Of Stop Light
  Courtesy of SUBARU OF AMERICA, INC.
