Identification Number And Label Locations

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

Positioning of the plate label for identification

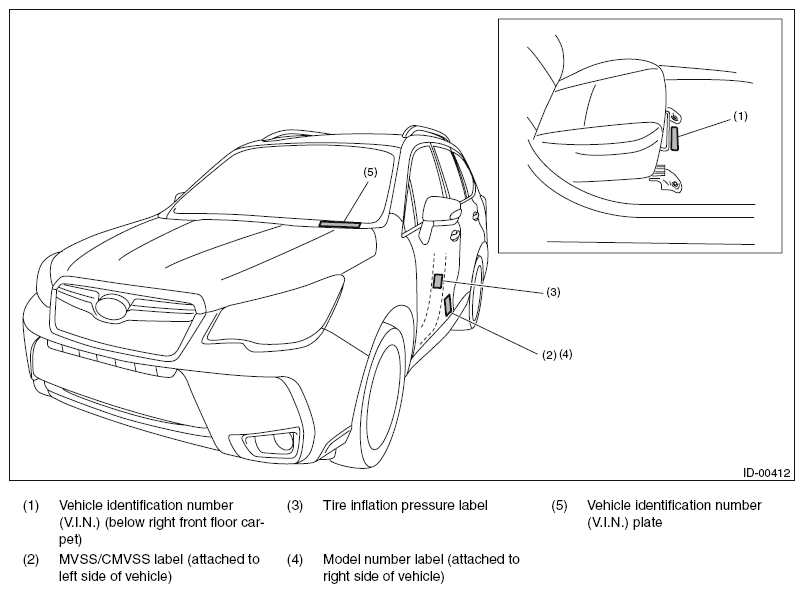

Fig 1: Identifying Plate Label For Identification Position
Courtesy of SUBARU OF AMERICA, INC.
MVSS/CMVSS label

Fig 2: Identifying MVSS/CMVSS Label
Courtesy of SUBARU OF AMERICA, INC.
Model number label

Fig 3: Identifying Model Number Label
Courtesy of SUBARU OF AMERICA, INC.
Engine

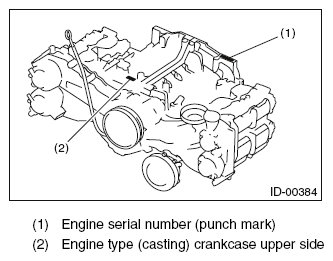

Fig 4: Identifying Engine Serial Number And Type
Courtesy of SUBARU OF AMERICA, INC.
Automatic transmission
CVT
- TR690

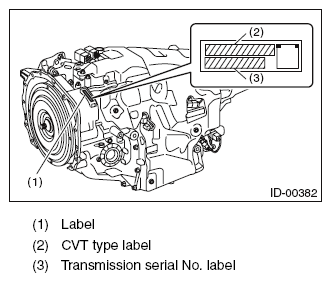

  Fig 5: Identifying CVT Type Label And Transmission Serial No. Label (TR690)
  Courtesy of SUBARU OF AMERICA, INC.
- TR580

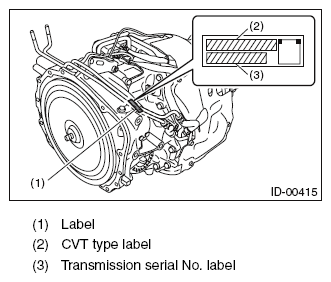

  Fig 6: Identifying CVT Type Label And Transmission Serial No. Label (TR580)
  Courtesy of SUBARU OF AMERICA, INC.
Manual transmission

Fig 7: Identifying MT Type And Transmission Serial Number Label
Courtesy of SUBARU OF AMERICA, INC.
Rear differential
T-type

Fig 8: Identifying Rear Differential Identification Label (T-Type)
Courtesy of SUBARU OF AMERICA, INC.

VA1-type

Fig 9: Identifying Rear Differential Identification Label (VA1-Type)
Courtesy of SUBARU OF AMERICA, INC.
