Power Rear Gate System
WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

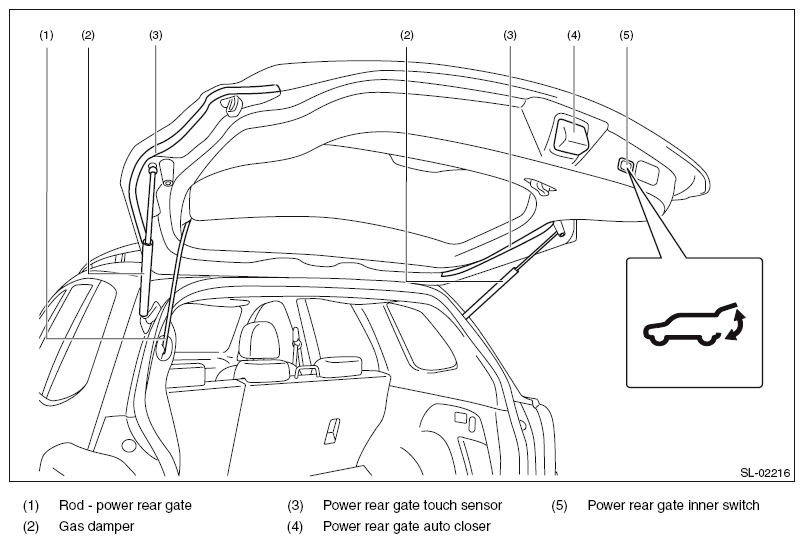

Fig 1: Identifying Power Rear Gate System Components (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

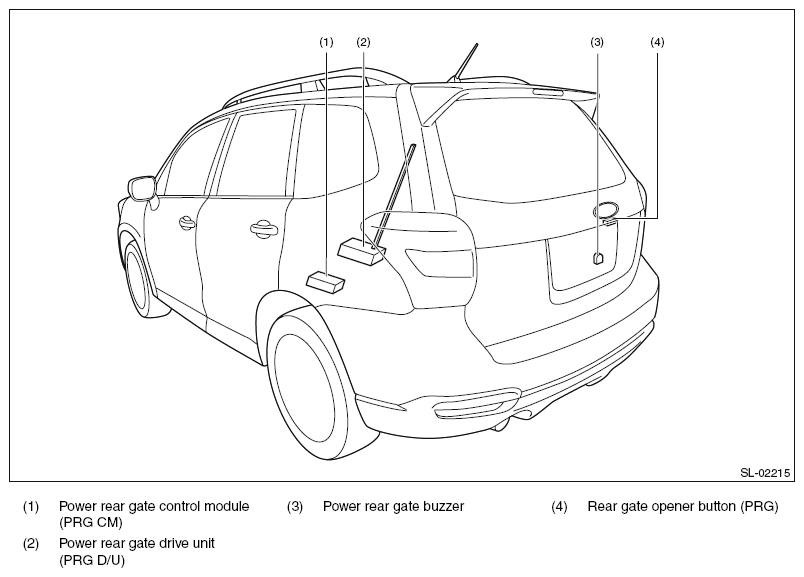

Fig 2: Identifying Power Rear Gate System Components (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

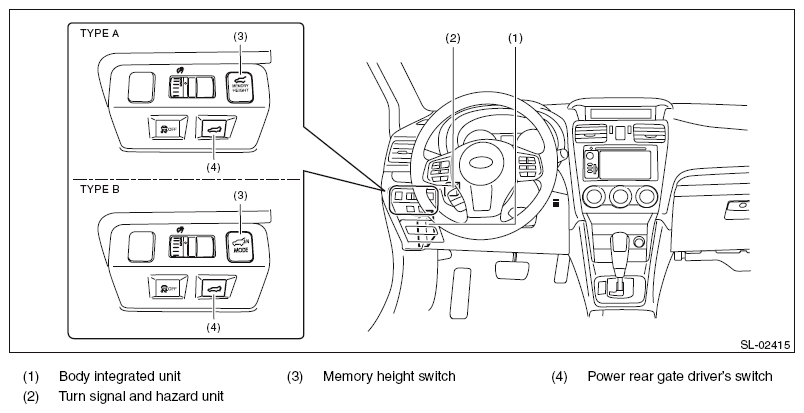

Fig 3: Identifying Power Rear Gate System Components (3 Of 3)
