Oil Charge Pipe: Removal

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the under cover.
Remove the front exhaust pipe. < Ref. to REMOVAL , Front Exhaust Pipe. >
Disconnect the connector from turbine speed sensor 1.

Fig 1: Identifying Turbine Speed Sensor 1 Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the turbine speed sensor 1 connector mounting bolt and rotate the sensor by 180°.

Fig 2: Rotating Turbine Speed Sensor 1 Connector Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil charge pipe, and then remove the O-ring from flange side.

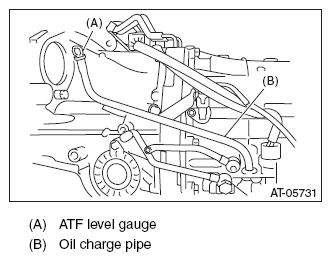

Fig 3: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
