Circuit Figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

VBUS

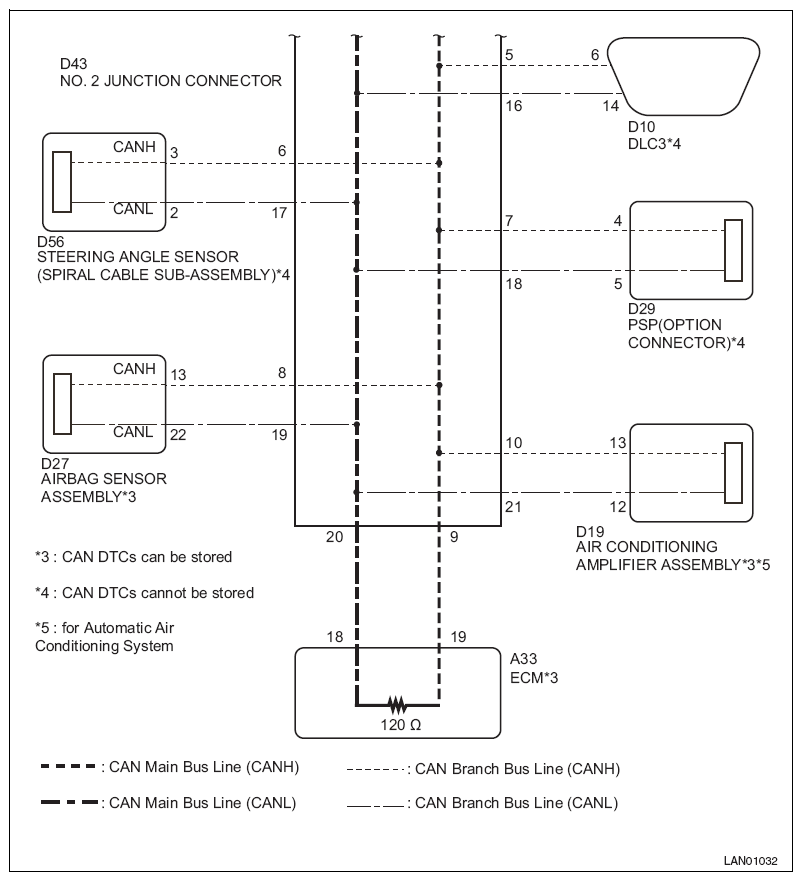

Fig 1: VBUS - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

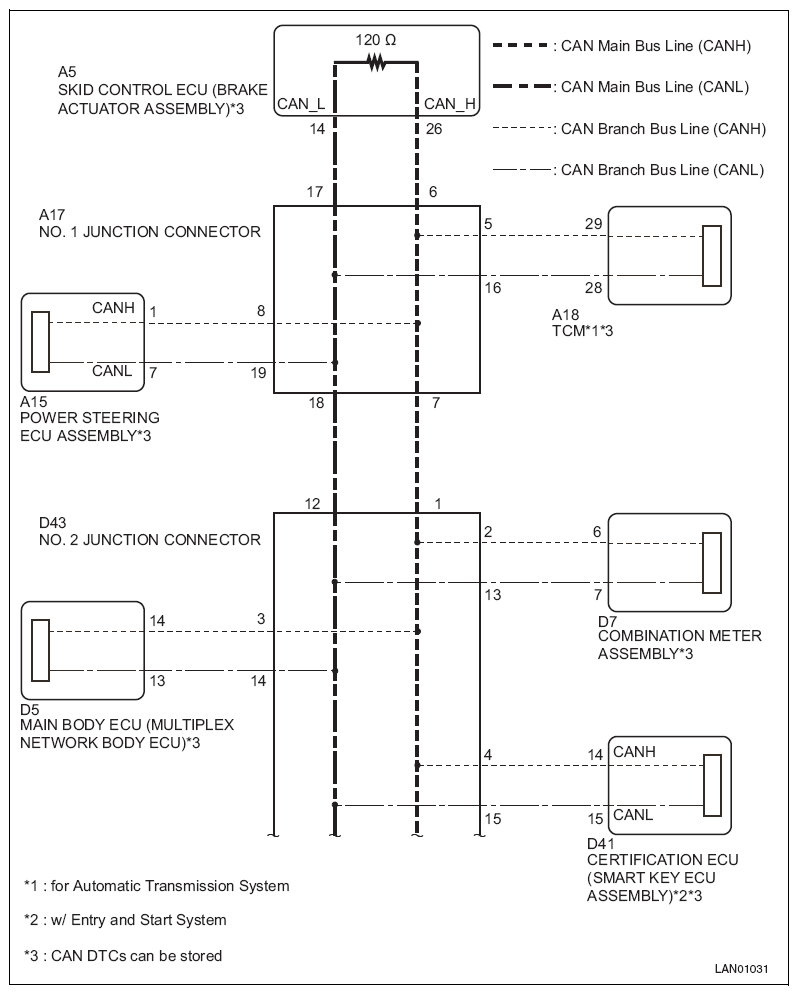

Fig 2: VBUS - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

NOTE: The main body ECM (Multiplex network body computer) and the collation ECM (Smart key computer assembly) are also connected to LIN communication line. (Refer to CIRCUIT FIGURE )
