Circuit Figure

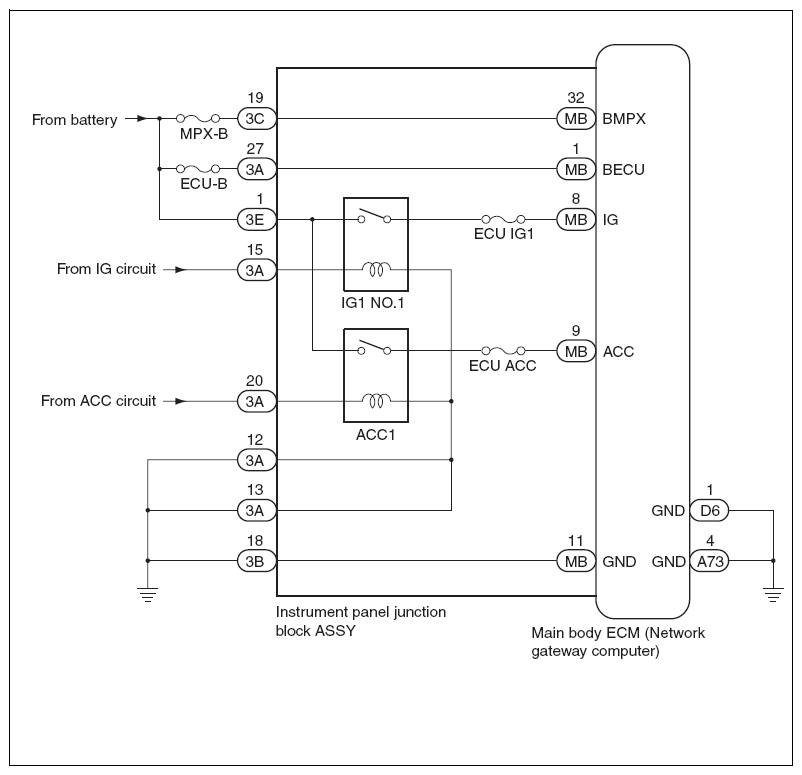

Fig 1: Power Control System Circuit Diagram

G10215919

Courtesy of SUBARU OF AMERICA, INC.
