Fuel Pump

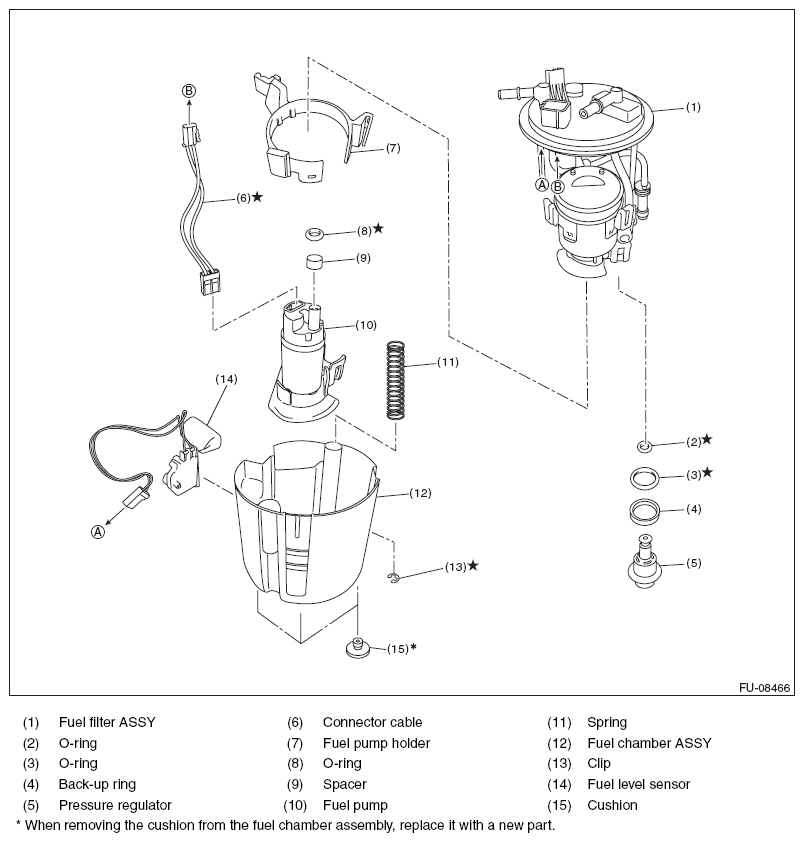

Fig 1: Identifying Fuel Pump Related Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
