Outback Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trim panel - rear apron RH. < Ref. to OUTBACK MODEL , REMOVAL, Rear Quarter Trim. >
  3. Remove the woofer assembly.
    1. Disconnect the connector.
    2. Remove the bolts, then remove the woofer assembly.

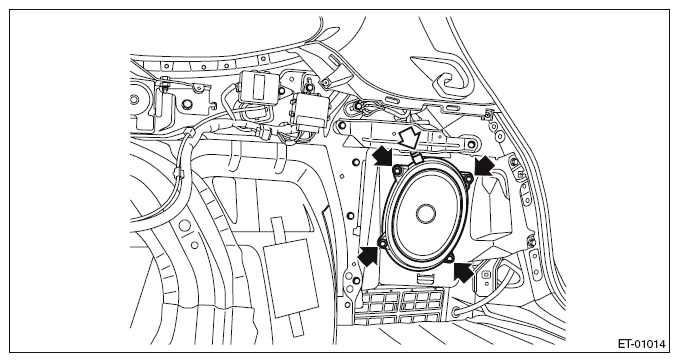

      Fig 1: Locating Woofer Assembly Connector And Screws - Outback Model
      G10272648Courtesy of SUBARU OF AMERICA, INC.
