Radar Axis Adjustment

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • After removal/installation or replacement of the radar sensor, perform the radar axis adjustment.
  • The procedure for the master is only shown here. However the procedure for the slave can also be done in the same way as the master.
  1. Before performing the inspection, check the following items.
    • The inflation pressure of tires is correct.
    • The vehicle does not have load.
    • Vehicle's fuel tank is fully filled.
  2. Place the vehicle on a level surface, where approximately 5 square meters (16.41 square ft) area can be secured behind the vehicle.
    CAUTION:
    • No metallic objects around the vehicle and on the floor in the area.
    • Do not let in objects other than the radar reflector (ST), persons and metallic objects inside the area.
    NOTE: The illustration shows the secured area for adjusting the radar axis on the master side.
    Fig 1: Identifying Radar Axis Adjusting Dimension
    G10311950Courtesy of SUBARU OF AMERICA, INC.
  3. Prepare the Subaru Select Monitor, measure, leveling line, plumb bob, packing tape, RADAR REFLECTOR (ST), and stand or tripod for fixing the RADAR REFLECTOR.

    Preparation tool:

    ST: RADAR REFLECTOR (87699AL00A)

  4. Set up the radar reflector.
    NOTE: The following procedure explains the method of setting the radar reflector so that the distance between radar reflector and radar sensor is 1, 500 mm (4.92 ft) and the radar is positioned at an angle of 50 degree.
    1. Suspend the plumb bob from the center of the front hole cap, and mark the position where the plumb bob touches the ground. (Point A)

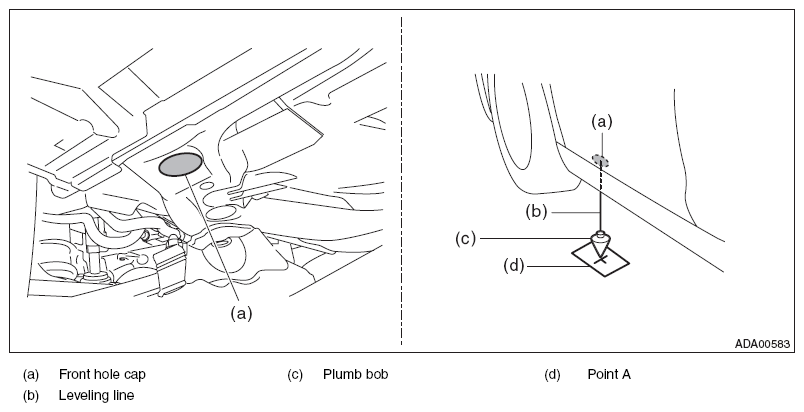

      Fig 2: Identifying Gauge Hole Cap
      G10311951Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Stick the packing tape etc. on the floor, then make a marking on the tape.
    2. Suspend the plumb bob from the center of the center clip located on the lower side of the rear bumper, and mark the position where the plumb bob touches the ground. (Point B)

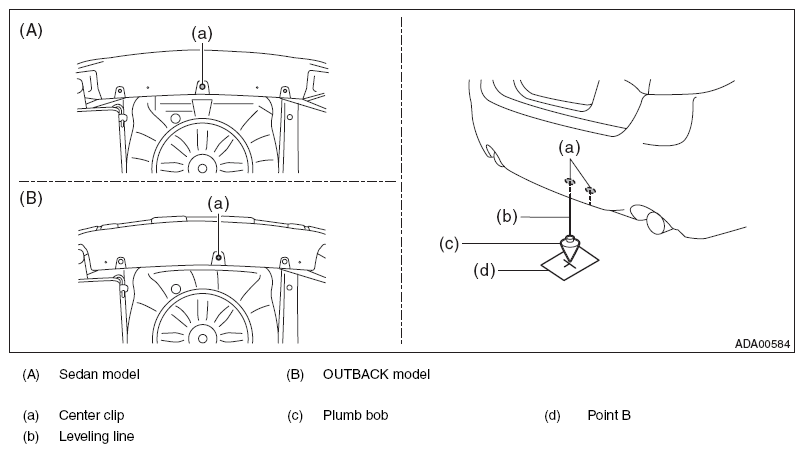

      Fig 3: Identifying Center Clip (Sedan Model And Outback Model)
      G10311952Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Stick the packing tape etc. on the floor, then make a marking on the tape.
    3. Stretch a leveling line to draw an arc with the marked point A as a pivot.
    4. Stretch a leveling line to draw an arc with the marked point B as a pivot.
    5. Set up the radar reflector at the cross point.
      CAUTION: When setting up the radar reflector, adjust the height so that the center of the pyramid points at the radar sensor as shown in the figure.
      Fig 4: Identifying Leveling Line Height Dimension
      G10311953Courtesy of SUBARU OF AMERICA, INC.
      • Sedan model

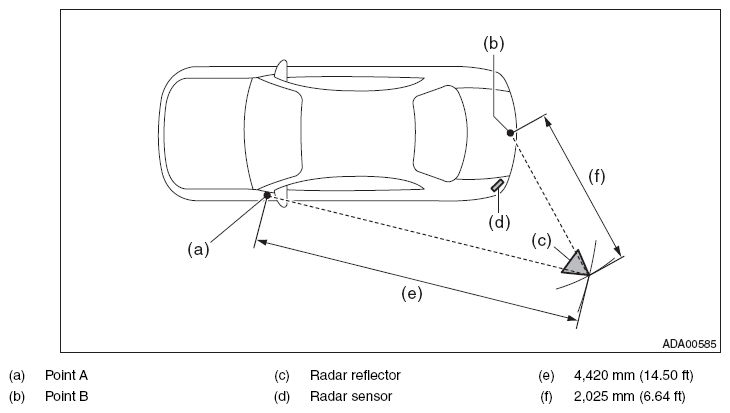

        Fig 5: Identifying Radar Reflector And Radar Sensor Line Setting Dimension (Sedan Model)
        G10311954Courtesy of SUBARU OF AMERICA, INC.
      • OUTBACK model

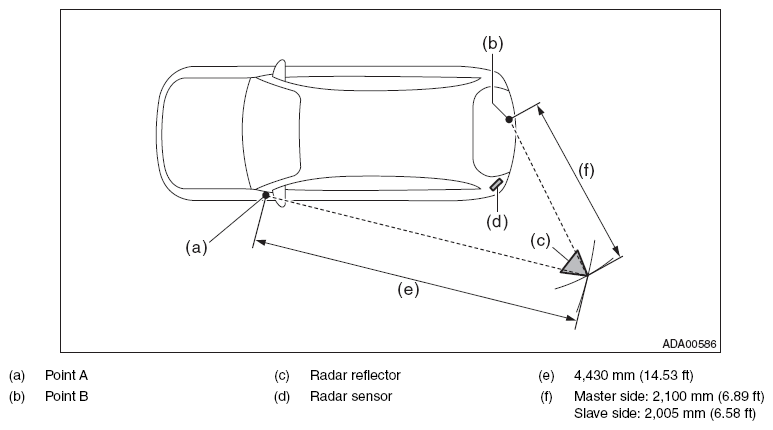

        Fig 6: Identifying Radar Reflector And Radar Sensor Line Setting Dimension (Outback Model)
        G10311955Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the Subaru Select Monitor.
    NOTE: Use the Subaru Select Monitor equipped with the latest version of the software.
  6. Turn the ignition switch to ON and wait for 10 seconds.
  7. Perform radar axis adjustment.
    1. Connect the Subaru Select Monitor.
    2. On «Start» display, select «Diagnosis».
    3. On «Vehicle selection» display, enter vehicle information and select «Confirmed».
    4. On «Main Menu» display, select «Each System».
    5. On «Select System» display, select «RADAR ASSY B & S LH» or «RADAR ASSY B & S RH».
    6. On «Select Function» display, select «Work Support».
    7. From the work support item list, select «RADAR Alignment».
    8. Follow the messages displayed on the Subaru Select Monitor screen when working.
      NOTE: Deviation of radar axis direction is indicated by + (plus) or - (minus).
      Fig 7: Identifying Radar Axis Adjustment Dimension
      G10311956Courtesy of SUBARU OF AMERICA, INC.
    9. If the result is out of permissive range, it is assumed that the radar reflector position may be incorrect or the radar bracket or its installation location on the vehicle may be deformed. Check the set position of the radar reflector, radar bracket and other attachment, and perform the radar axis adjustment again.
