Section 249 (Continuously Variable Transmission (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

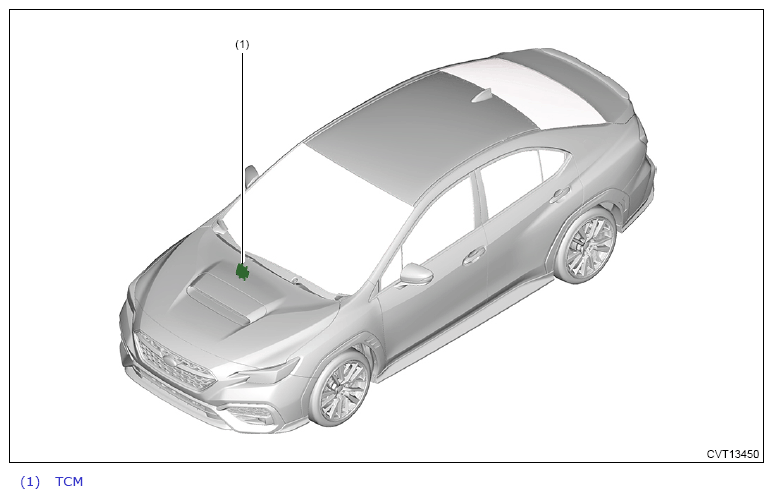

G14613596Courtesy of SUBARU OF AMERICA, INC.

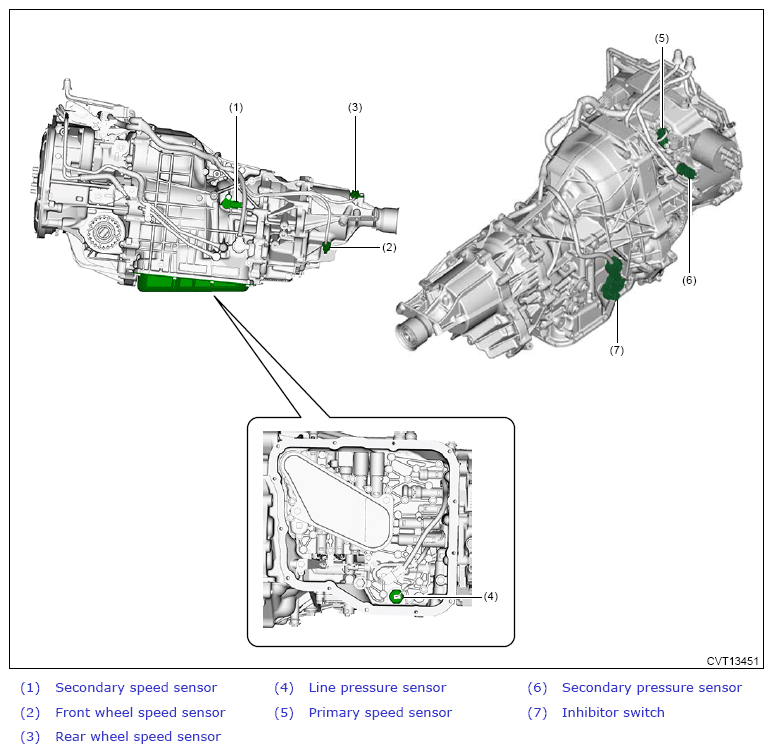

G14613597Courtesy of SUBARU OF AMERICA, INC.
