Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before handling the airbag module, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>
  1. Set the tire to the straight-ahead position.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.>
  3. Remove the driver's airbag module. <Ref. to REMOVAL , Driver's Airbag Module.>
  4. Remove the steering wheel. <Ref. to REMOVAL , Steering Wheel.>
  5. Remove the cover assembly - column.
    1. Release the clips, and remove the cover assembly - steering UPR.
    2. Remove the screws.
    3. Release the claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.

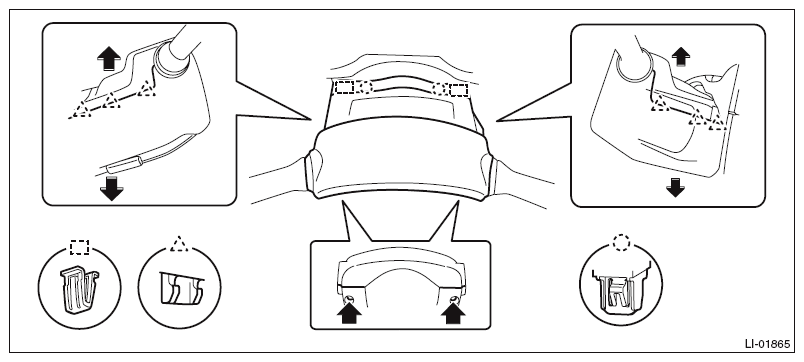

      Fig 1: Removing Cover Assembly - Steering UPR
      G10272380Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the steering roll connector. <Ref. to REMOVAL , Roll Connector.>
  7. Remove the combination switch (wiper). <Ref. to REMOVAL , Combination Switch (Wiper).>
  8. Remove the switch assembly - combination turn dimmer.
    1. Disconnect the connector.
    2. Using pliers, loosen the clamp.
    3. With the clamp loosened, release the claw using a flat tip screwdriver, and remove the switch assembly - combination turn dimmer.

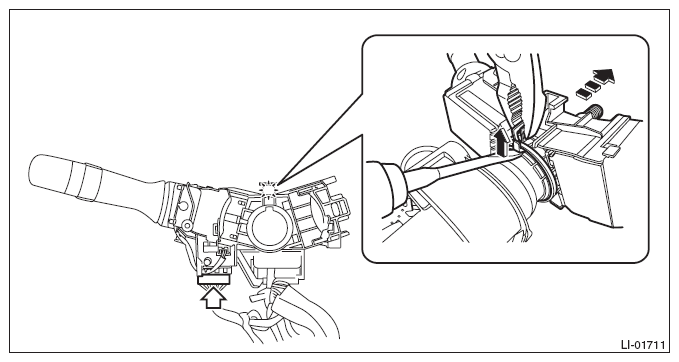

      Fig 2: Releasing Claw Using Flat Tip Screwdriver
      G10270678Courtesy of SUBARU OF AMERICA, INC.
