Day Time Running Resistor: Installation

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).

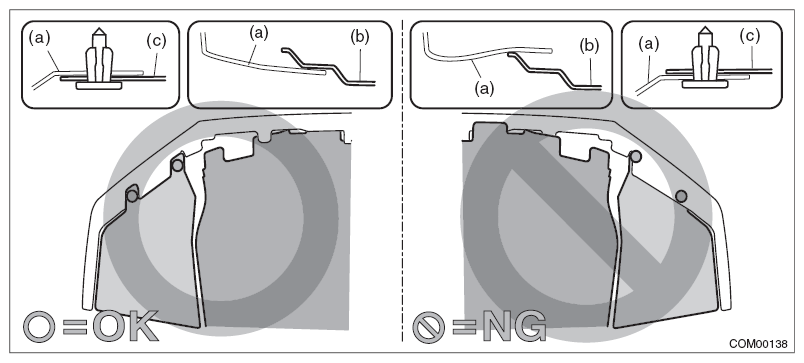

Fig 1: Caution For Installing Front End Of Under Cover Comes Inside Bumper Face - Front

Courtesy of SUBARU OF AMERICA, INC.

Install the resistor assembly - daytime running light.
CAUTION: Be careful not to allow the harness to interfere with vehicle body, etc. and prevent excessive force from being applied.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the bumper face - front.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
