Day Time Running Resistor: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>
Remove the resistor assembly - daytime running light.
CAUTION: The resistor may become hot. Be careful not to burn yourself when removing it.
1. Disconnect the connector.
2. Remove the bolts, then remove the resistor assembly - daytime running light.

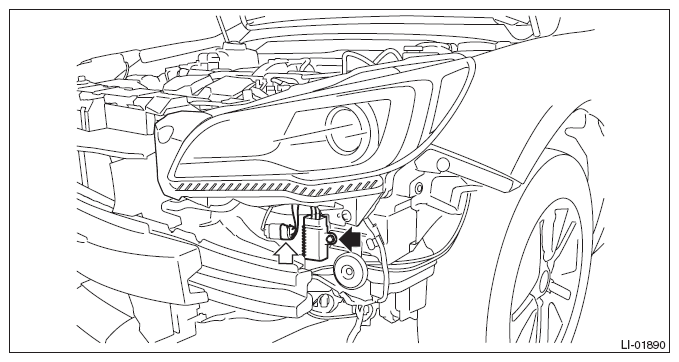

  Fig 1: Removing Day Time Running Resistor
  Courtesy of SUBARU OF AMERICA, INC.
